Inspection At HECU Terminals (TCS)
Inspection At HECU Terminals (TCS)
Fig 1: HECU Terminals (TCS)
Courtesy of HYUNDAI MOTOR CO.

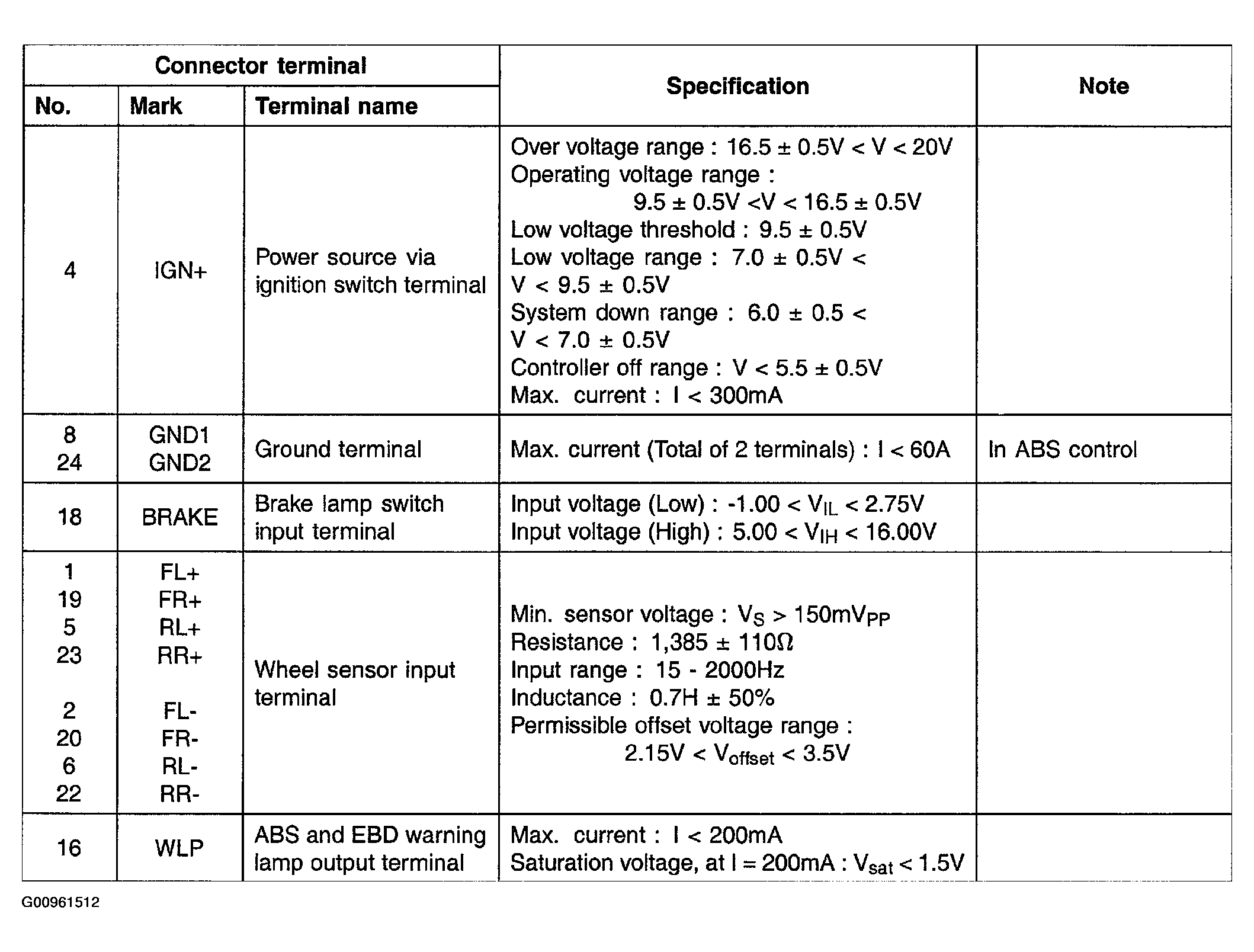

Fig 2: TCS HECU Terminal Name & Specification Table (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

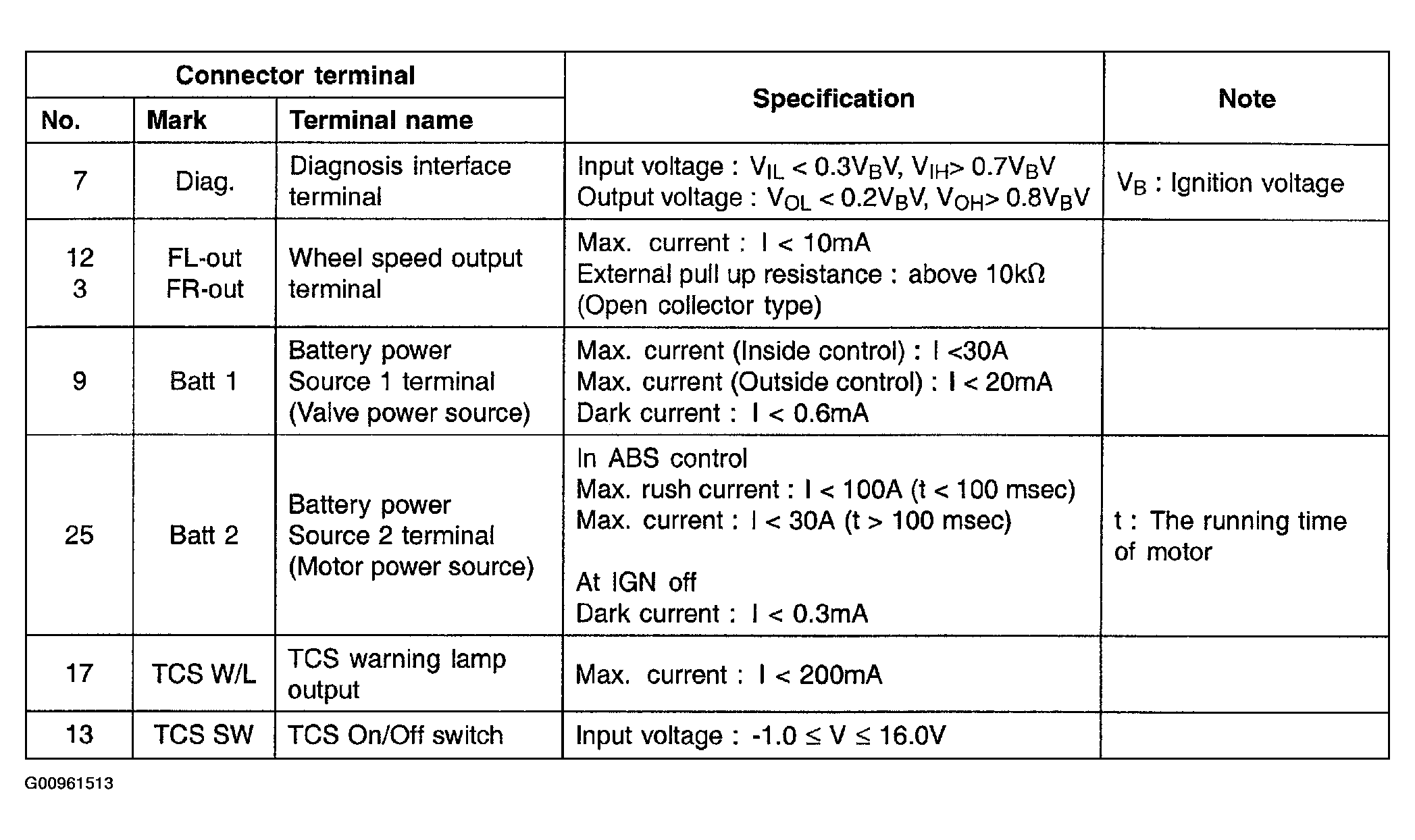

Fig 3: TCS HECU Terminal Name & Specification Table (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
