Automatic Transaxle Hydraulic Circuit: First

WARNING: This page is about a different variant/trim than selected.

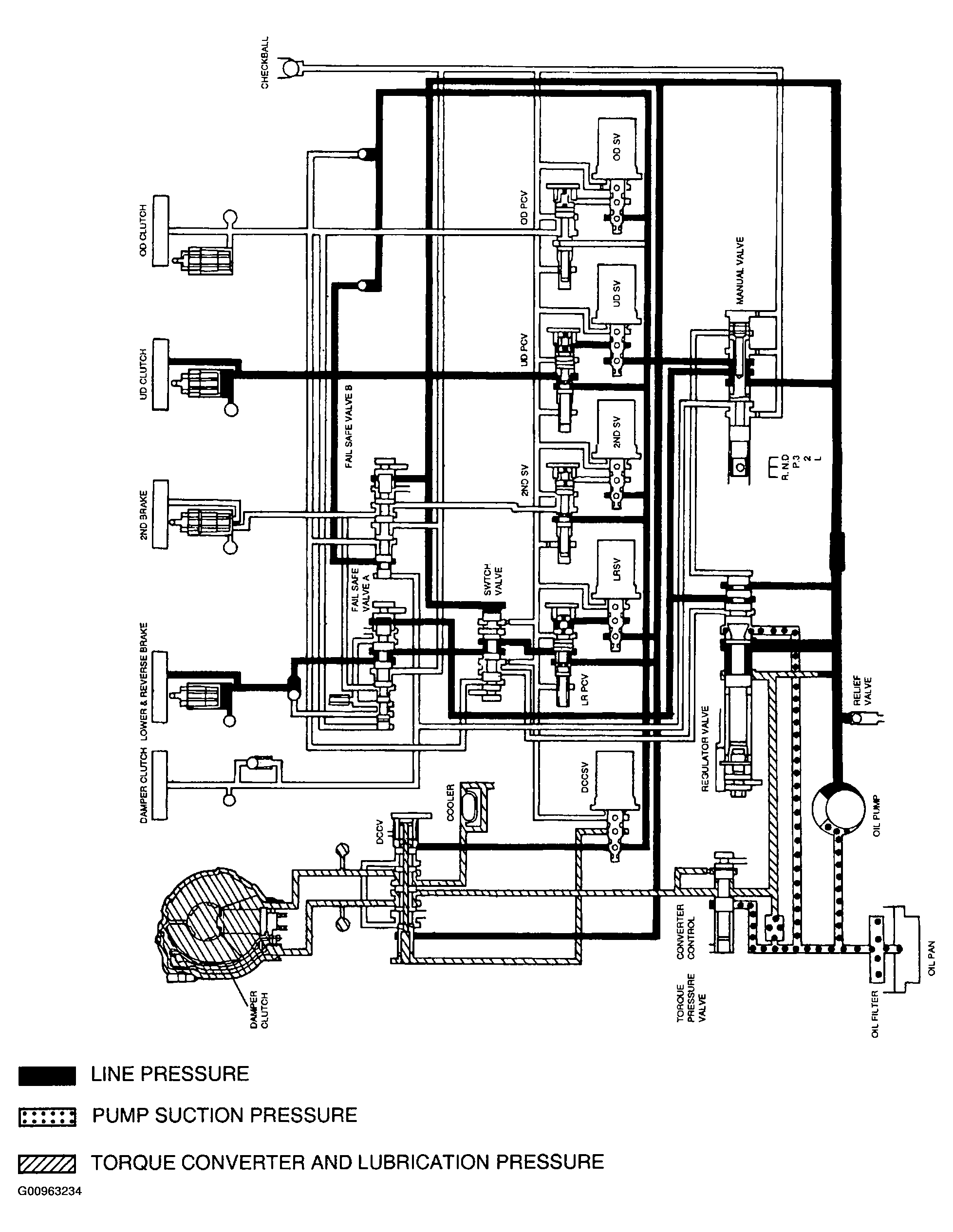

Fig 1: Identifying Hydraulic Circuit In First Gear
G00963234Courtesy of HYUNDAI MOTOR CO.
