Key Interlock Device Installation

It is expected that the ignition key may not be removed from the key cylinder due to misassembly of the key inter lock cable. To prevent this problem, apply the following installation instructions when servicing.

1. Assembly of key interlock cable and ignition lock.
   1. The Ignition lock is assembled to the steering column. Set the ignition lock to the lock position.
   2. Assemble the key interlock cable and the ignition lock with the set screw.
      Fig 1: Key Lock Cam & P-Lock Cam In Same Condition (2 Of 2)

      Courtesy of HYUNDAI MOTOR CO.
2. Assembly of key interlock cable and shift lever.
   1. Set the shift lever to the "P" position.
   2. After setting the key interlock cable as shown in the Fig 2 , temporarily assemble the key inter lock cable with a M8 nut just enough to move the key interlock cable plate by its spring force.

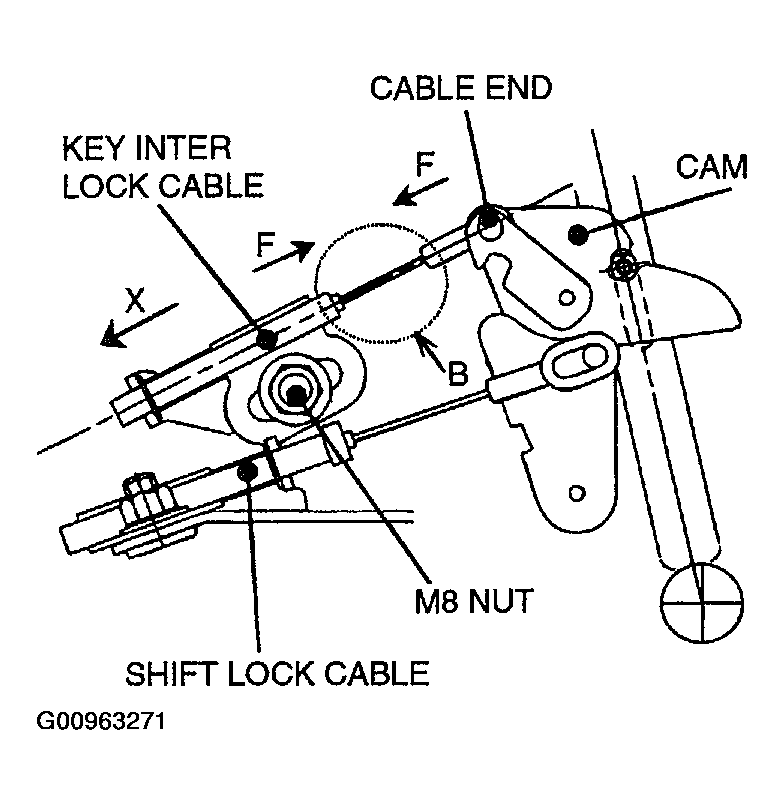

      Fig 2: Identifying M8 Nut & Cable Installation

      Courtesy of HYUNDAI MOTOR CO.
   3. Holding the cable and the key inter lock cable plate, push them into the direction of "F" so as not to create any bending or slack on the "B" point of the key inter lock cable.
      NOTE: Do not pull the cable in the direction of "X" to remove the slack. This may cause key not to remove from the key cylinder.
   4. Tighten the key inter lock cable with a M8 nut.
