Automatic Transaxle: Components

WARNING: This page is about a different variant/trim than selected.

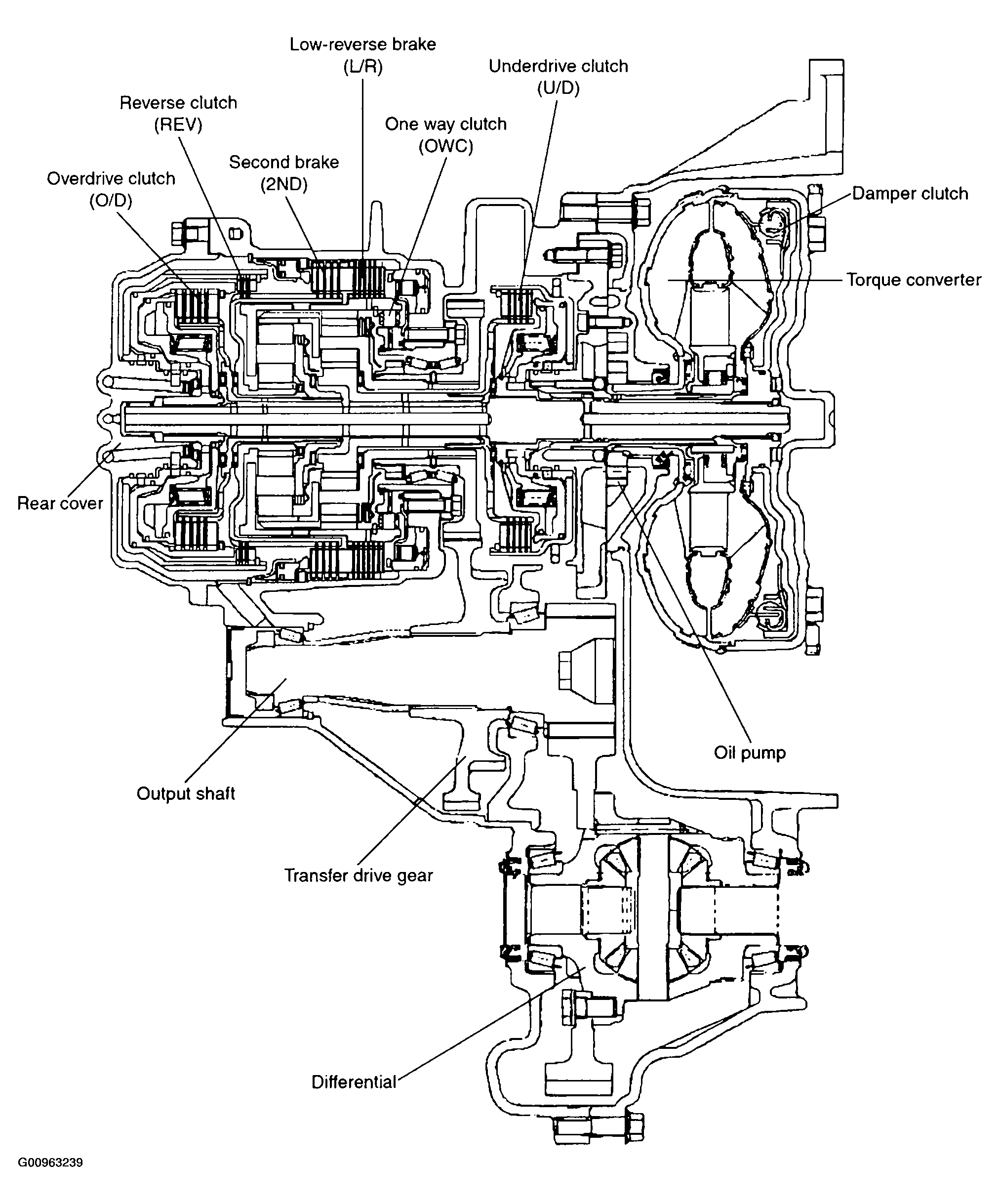

Fig 1: Automatic Transaxle Components
G00963239Courtesy of HYUNDAI MOTOR CO.
