(F4A42 Model)

WARNING: This page is about a different variant/trim than selected.

Remove the battery terminal and battery.
Remove the drain plug and drain the automatic transaxle fluid.

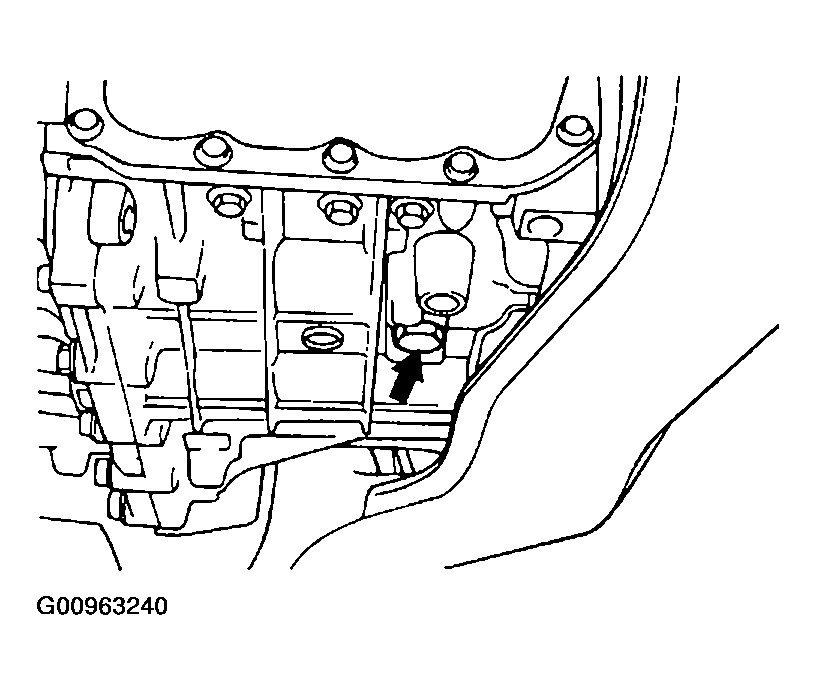

Fig 1: Identifying Drain Plug
Courtesy of HYUNDAI MOTOR CO.
Remove the air cleaner assembly.
Disconnect the speedometer sensor connector.
Disconnect the transaxle range switch connector, solenoid connector, and oil temperature sensor connector.

Fig 2: Identifying Solenoid Connector
Courtesy of HYUNDAI MOTOR CO.

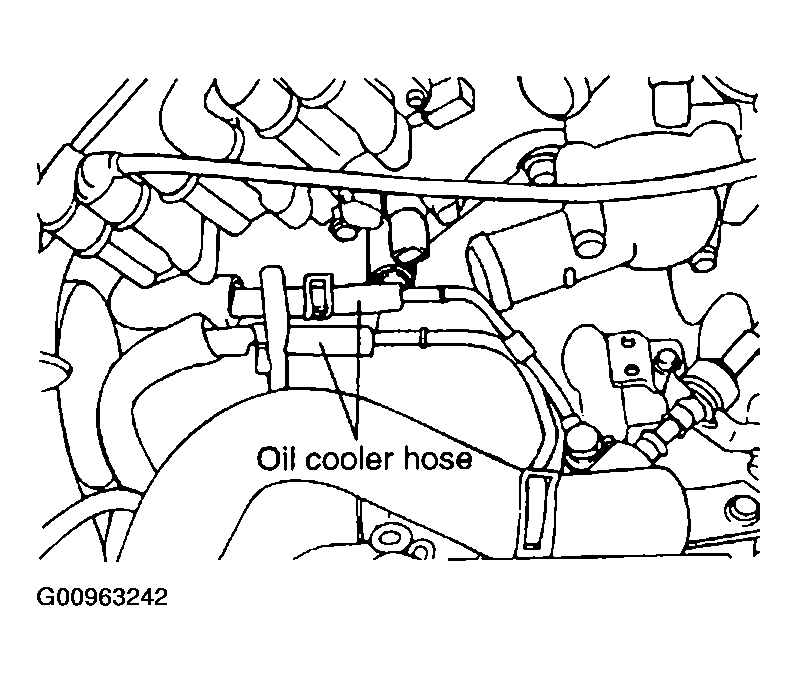

Remove the oil cooler hose.

Fig 3: Identifying Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.

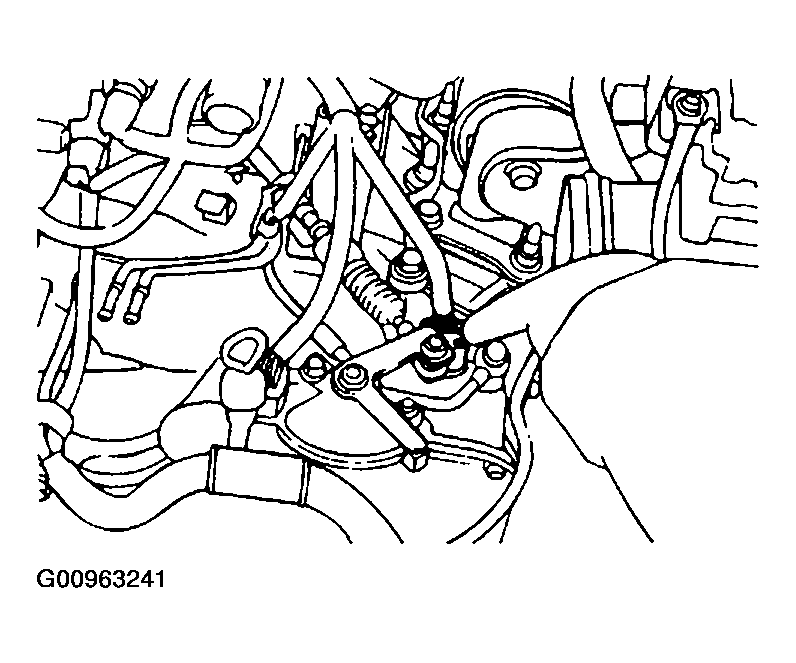

Remove the control cable.

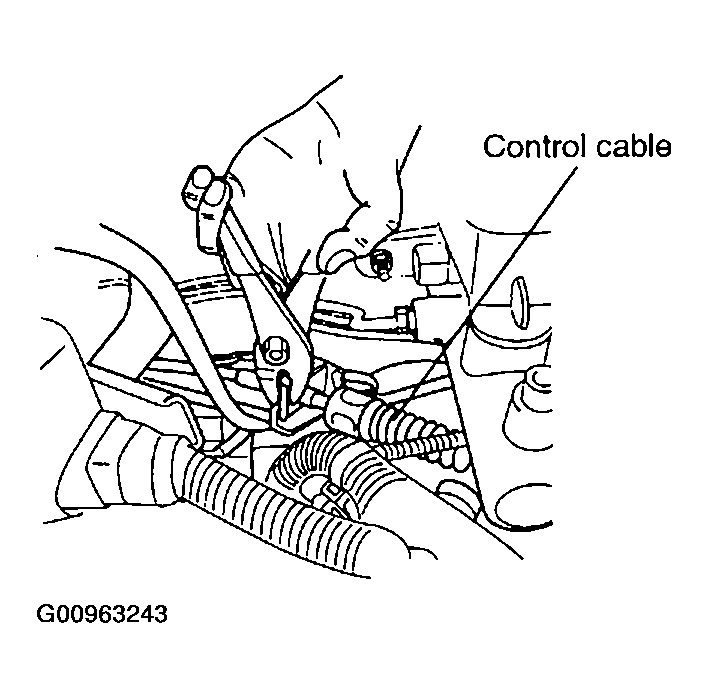

Fig 4: Removing Control Cable
Courtesy of HYUNDAI MOTOR CO.
Remove the steering u-joint bolt and return tube mounting bolts.
NOTE: Mark a mating line on the steering column universal joint and the gear box before disassembling to make the installation easier.

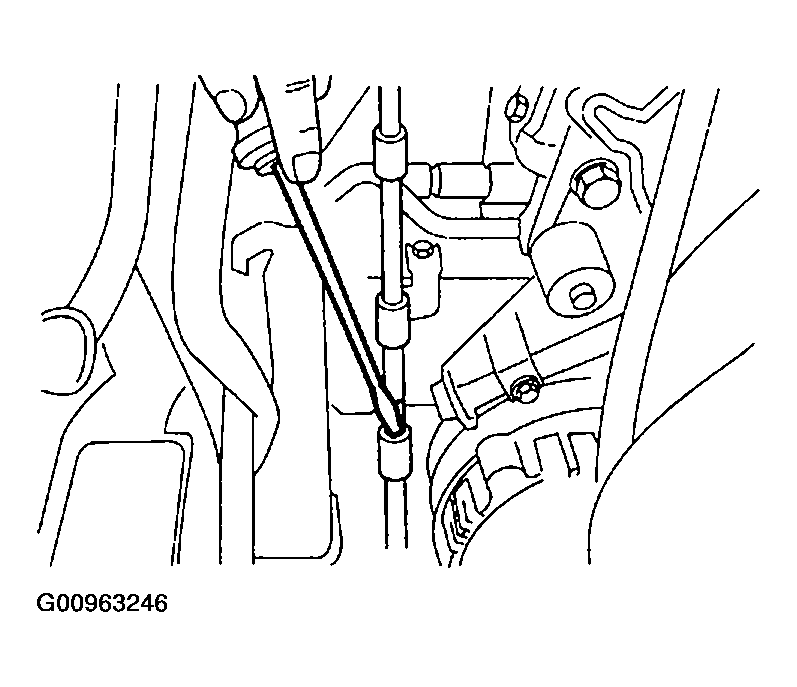

Fig 5: Identifying Mating Line On The Steering Column Universal Joint
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering oil pump hose.

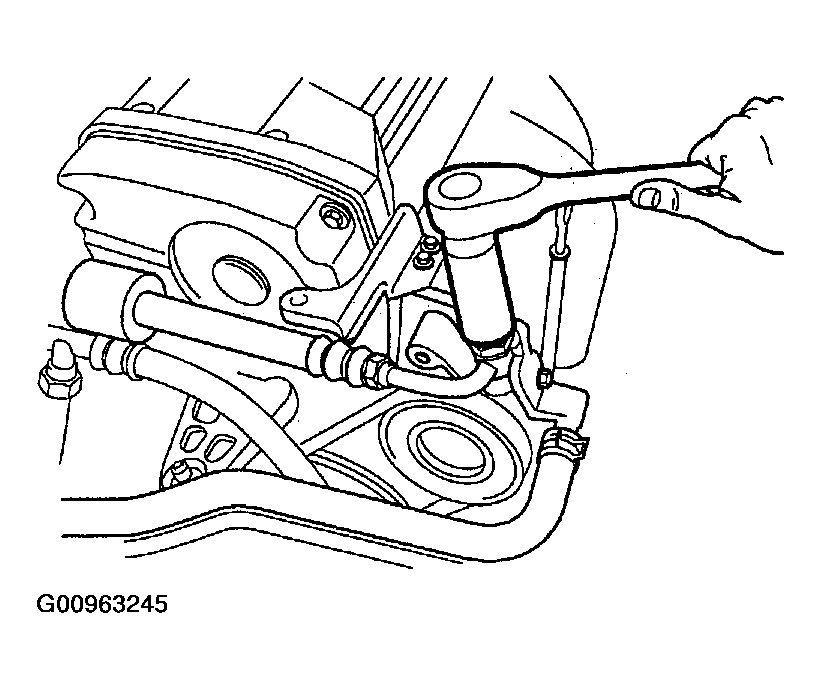

Fig 6: Separating Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering return hose.

Fig 7: Separating Power Steering Return Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the upper connecting transaxle bolt.
Attach the special tools, engine support fixture, (J28467-B, J28467-125) to the engine hooks.

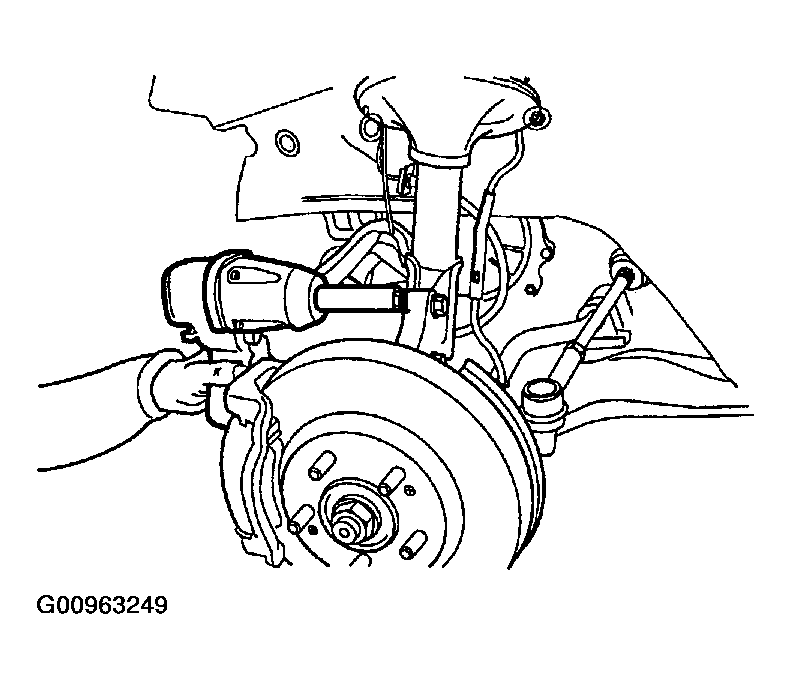

Remove the tire and caliper

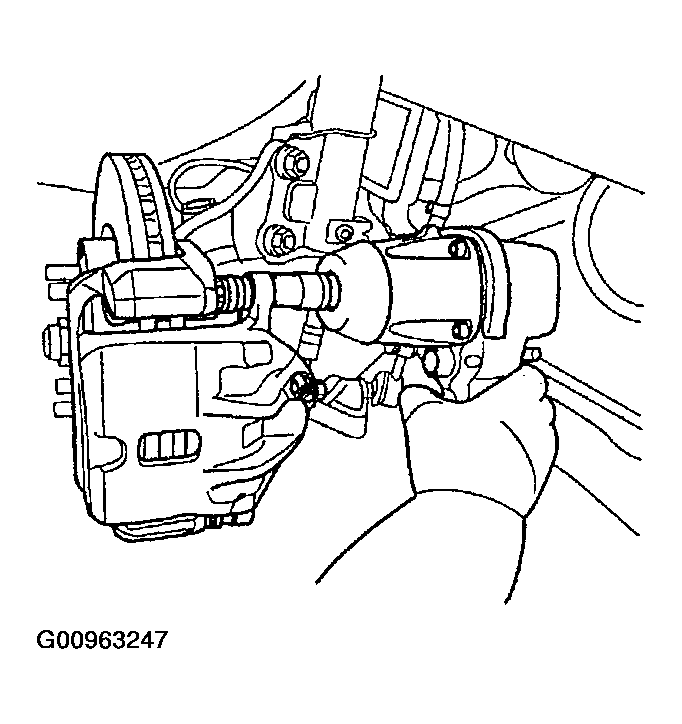

Fig 8: Removing Brake Caliper
Courtesy of HYUNDAI MOTOR CO.
Separate the tie rod end.

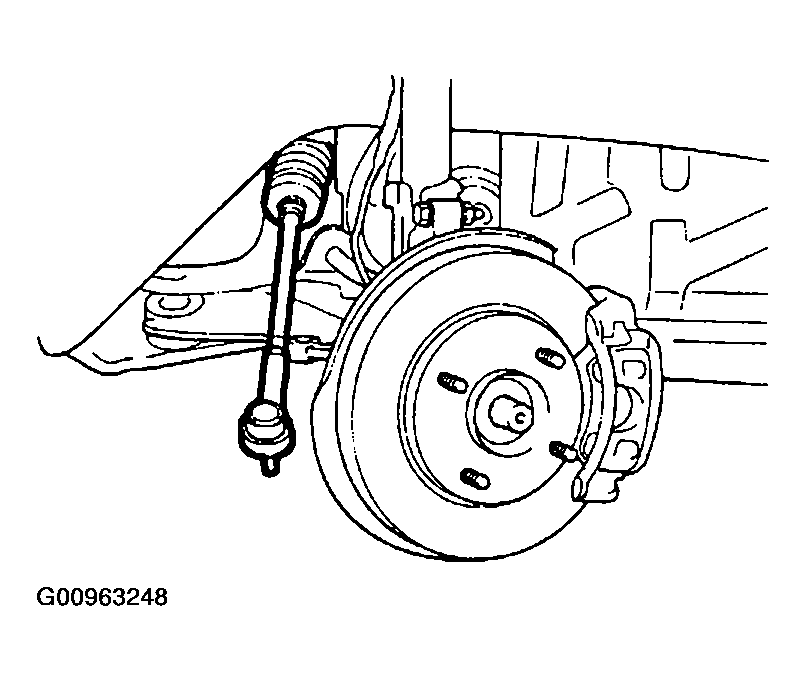

Fig 9: Identifying Tie Rod End
Courtesy of HYUNDAI MOTOR CO.

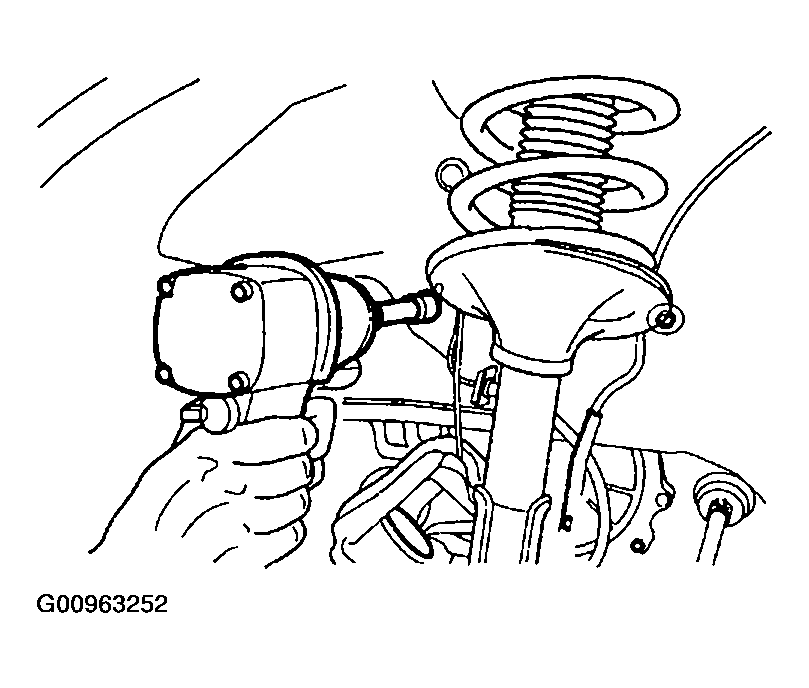

Remove the wheel speed sensor and the knuckle mounting bolt.

Fig 10: Removing Upper Wheel Knuckle Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle mounting bracket.
1. Insulator bolt

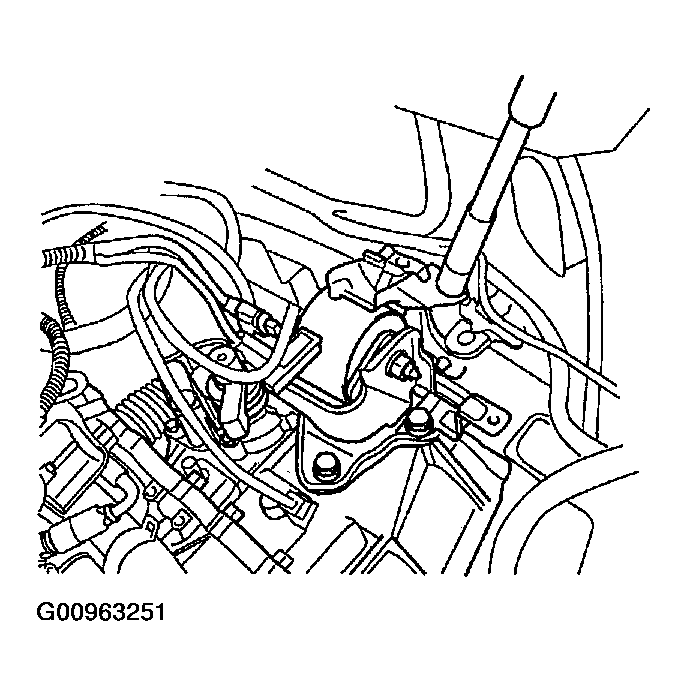

  Fig 11: Removing Transaxle Mounting Bracket Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Body mounting bolt (Upper)

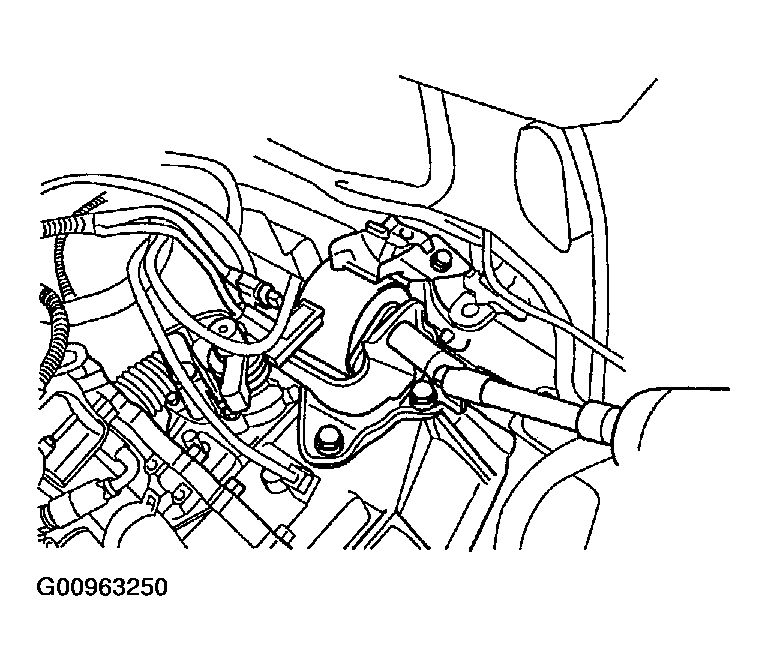

  Fig 12: Removing Upper Body Mount Bolt
  Courtesy of HYUNDAI MOTOR CO.
3. Body mounting bolt (Side)

  Fig 13: Removing Side Body Mount Bolt
  Courtesy of HYUNDAI MOTOR CO.

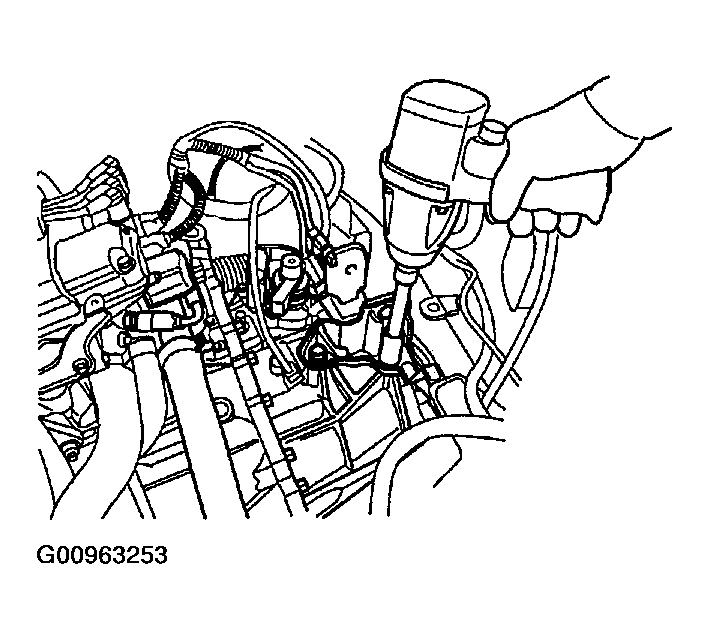

4. Transaxle side mounting bolt.

  Fig 14: Removing Transaxle Side Mounting Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.
1. Insulator bolt

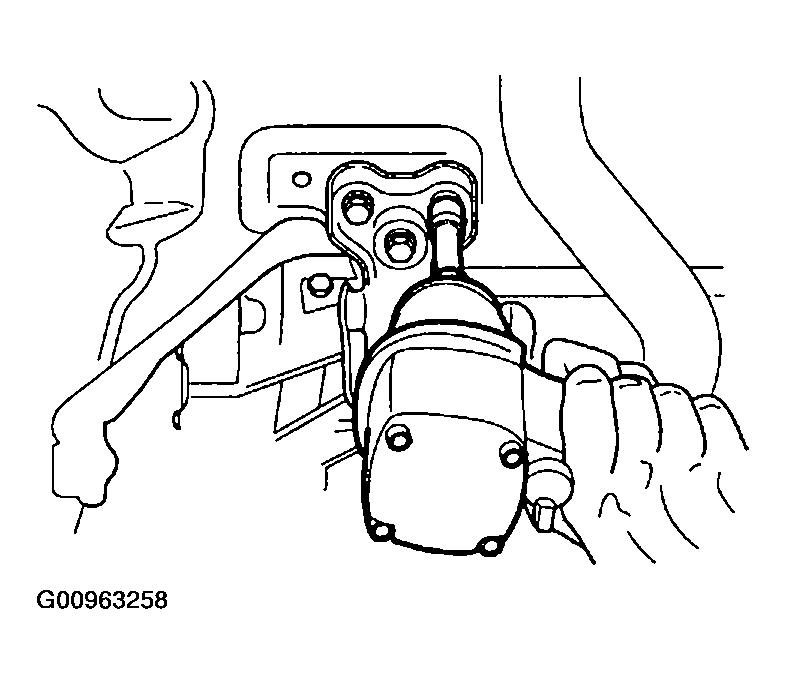

  Fig 15: Removing Front Roller Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

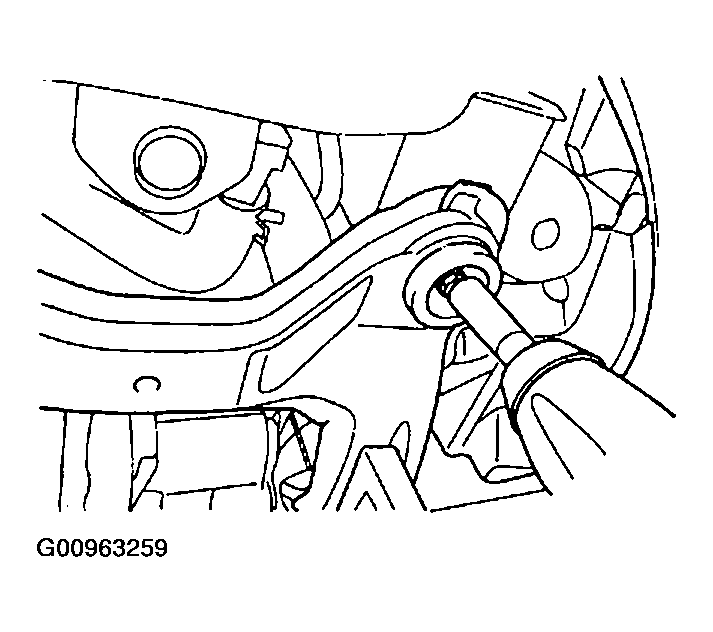

  Fig 16: Removing Upper Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
3. Stopper bolt (Lower)

  Fig 17: Removing Lower Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.

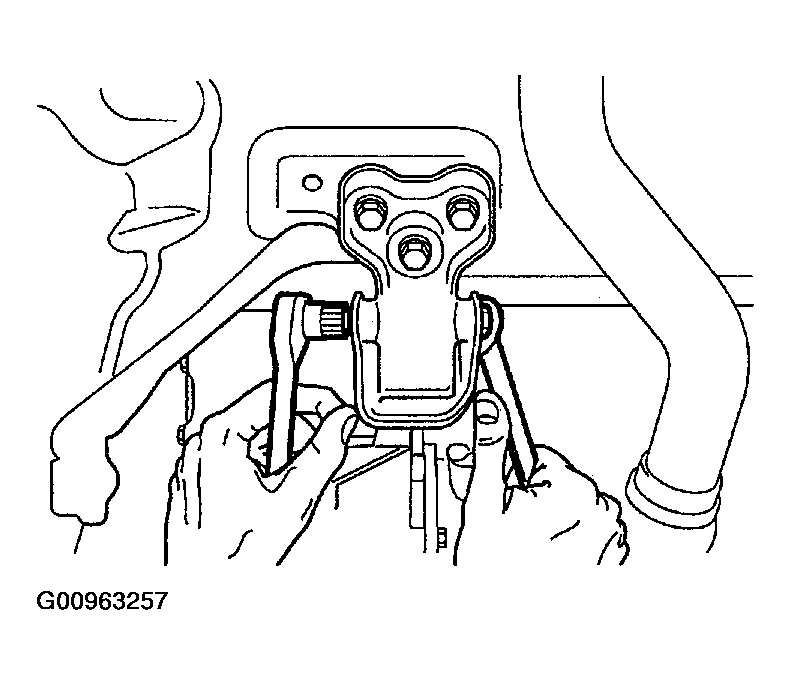

Remove the rear roll stopper.
1. Insulator bolt

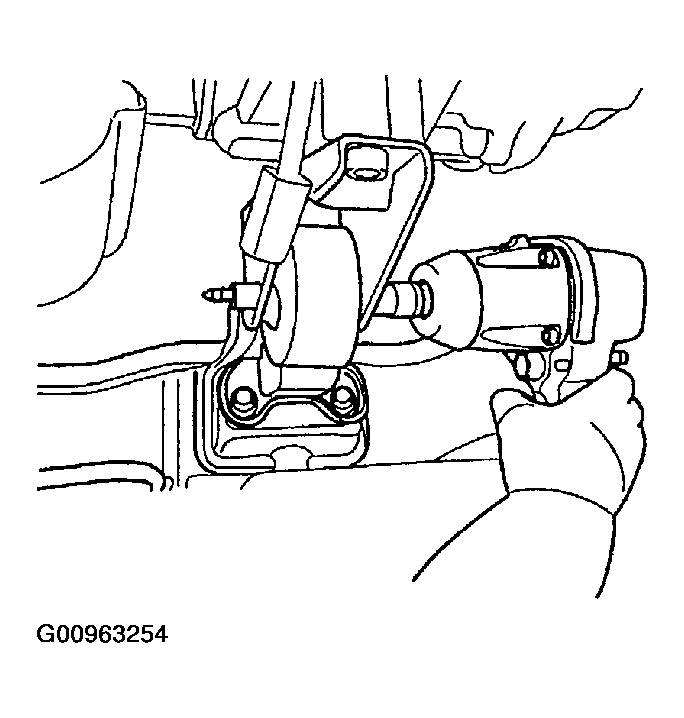

  Fig 18: Remove The Rear Roll Stopper Insulator Bolt
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt

  Fig 19: Removing Stopper Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.
Remove the subframe mounting bolts and the subframe.

Fig 20: Removing Subframe Mounting Bolts
Courtesy of HYUNDAI MOTOR CO.
Install the jack under the transaxle assembly.

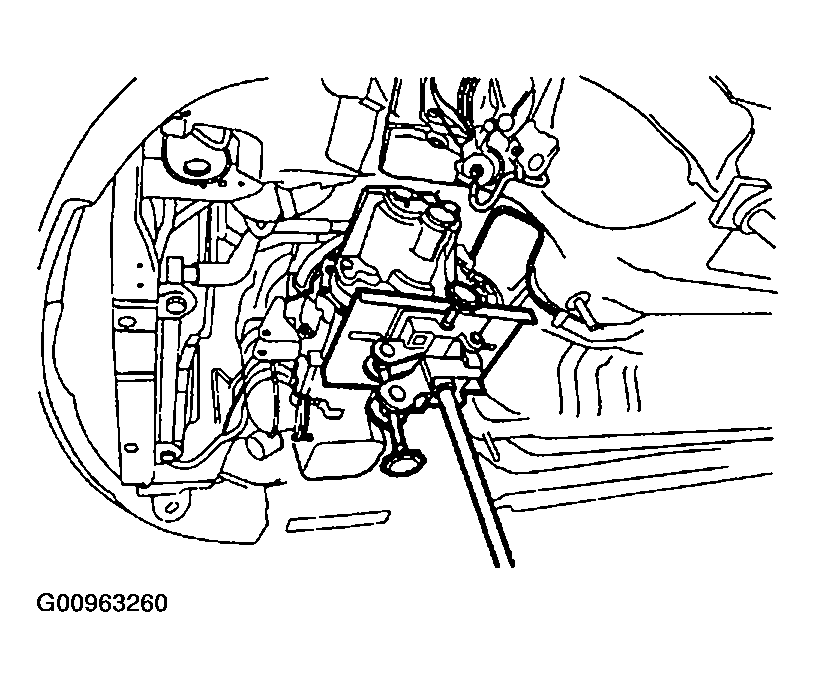

Fig 21: Installing Jack
Courtesy of HYUNDAI MOTOR CO.

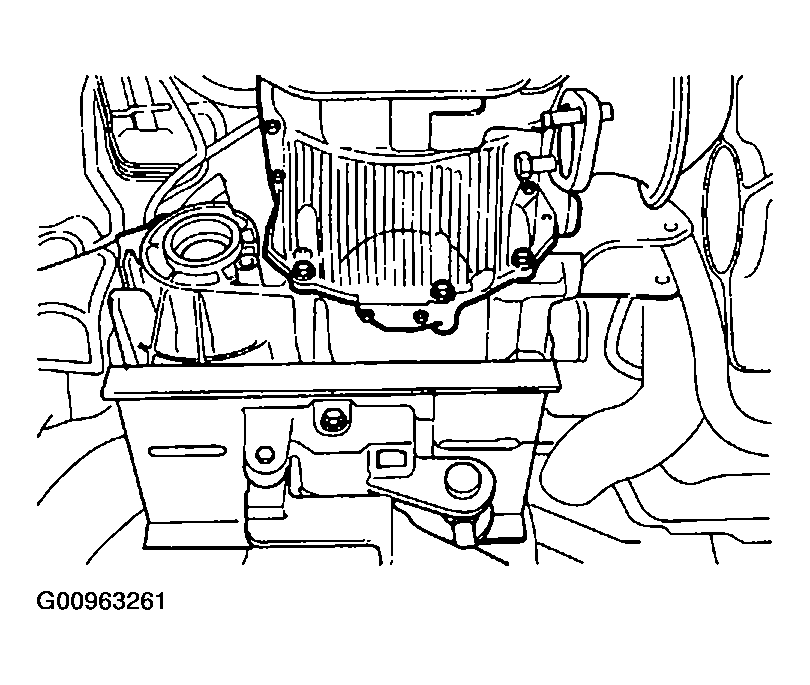

Remove the automatic transaxle mounting lower bolts.

Fig 22: Identifying Transaxle Mounting Lower Bolts
Courtesy of HYUNDAI MOTOR CO.
Remove the engine to automatic transaxle bolts.
Remove the automatic transaxle assembly by jack.
CAUTION:
1. Engine and transmission mounting insulators should be installed as specified orders.
2. Mounting bracket installation procedures.
  1. Engine mounting bracket.
  2. T/M mounting bracket.
  3. Rear roll stopper mounting bracket.
  4. Front roll stopper mounting bracket.
3. When Installing the front roll stopper mounting bracket, be especially careful not to crush the insulator. If crushed, idle vibration may occur.
