Transaxle Range Switch Continuity Check

WARNING: This page is about a different variant/trim than selected.

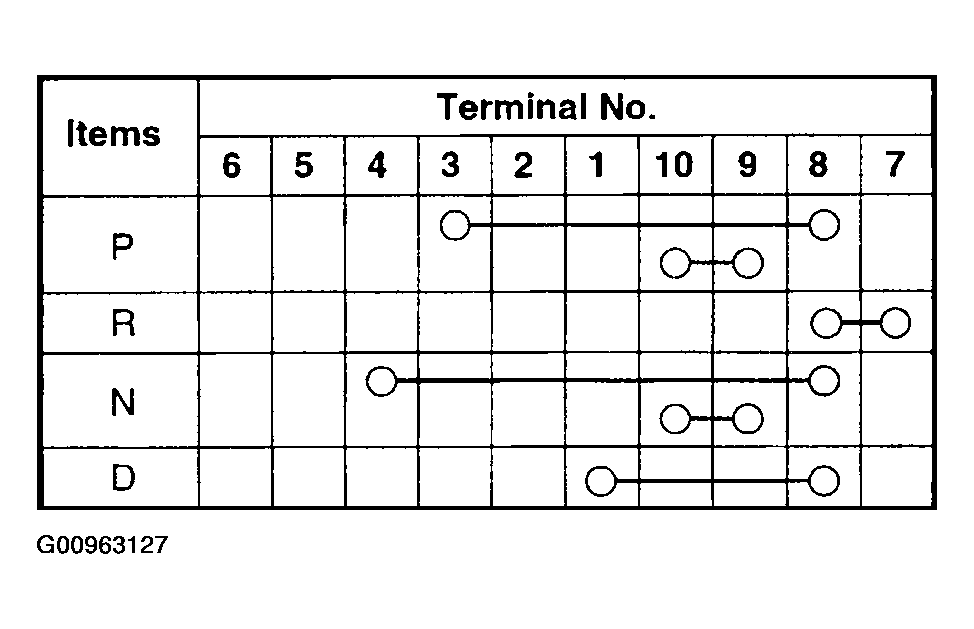

Fig 1: Transaxle Range Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

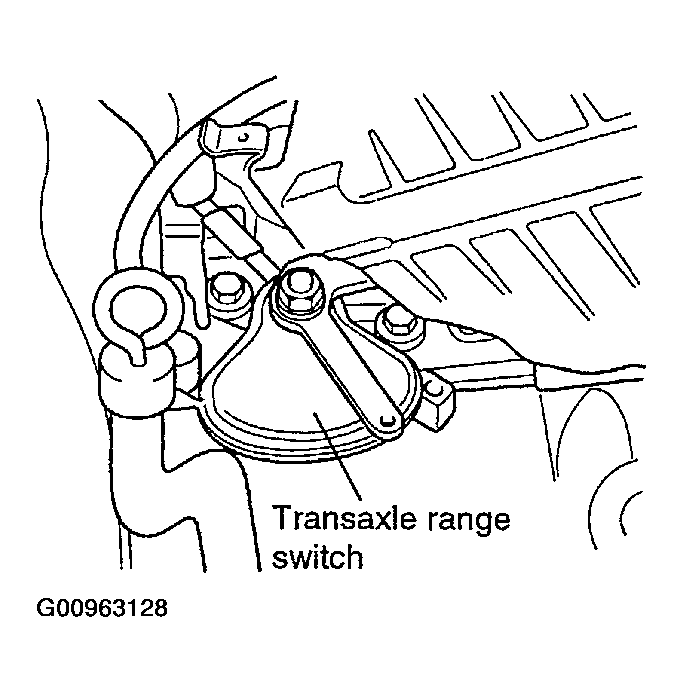

Fig 2: Identifying Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying Transaxle Range Switch Positions

Courtesy of HYUNDAI MOTOR CO.
