Inspection Procedure 1

WARNING: This page is about a different variant/trim than selected.

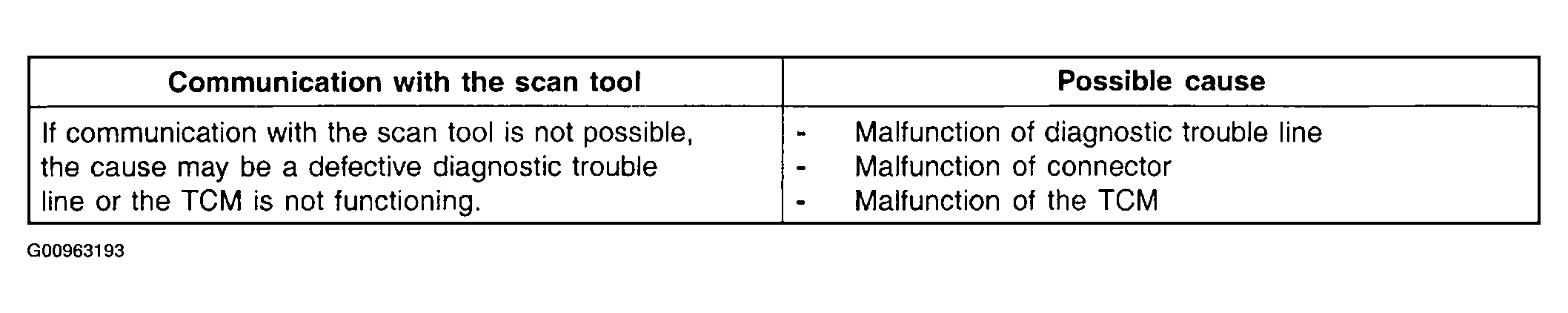

Fig 1: No Communication With Scan Tool Possible Causes Table
G00963193Courtesy of HYUNDAI MOTOR CO.

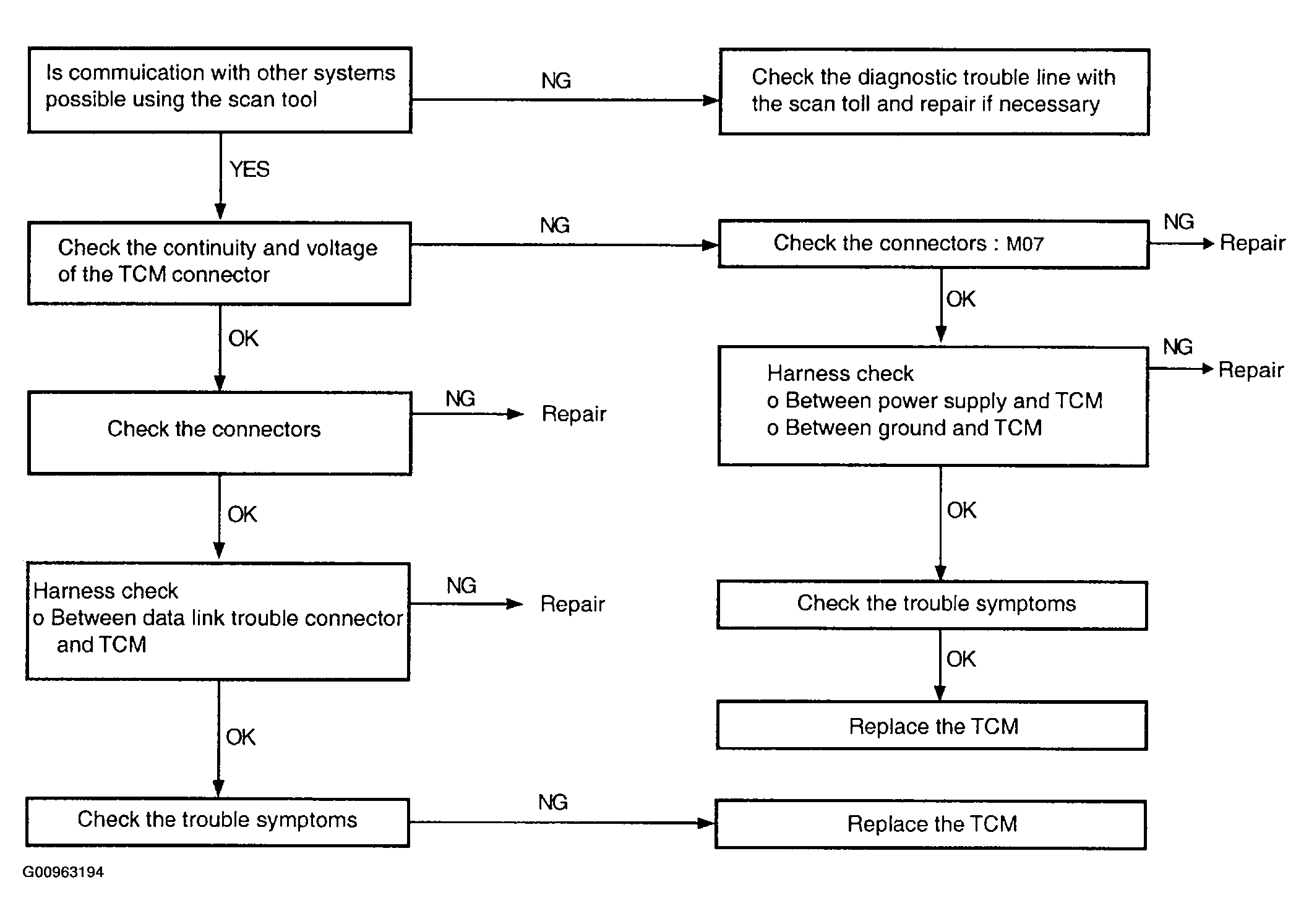

Fig 2: No Communication With Scan Tool Diagnostic Flow Chart
G00963194Courtesy of HYUNDAI MOTOR CO.
