Inspection Procedure 11

WARNING: This page is about a different variant/trim than selected.

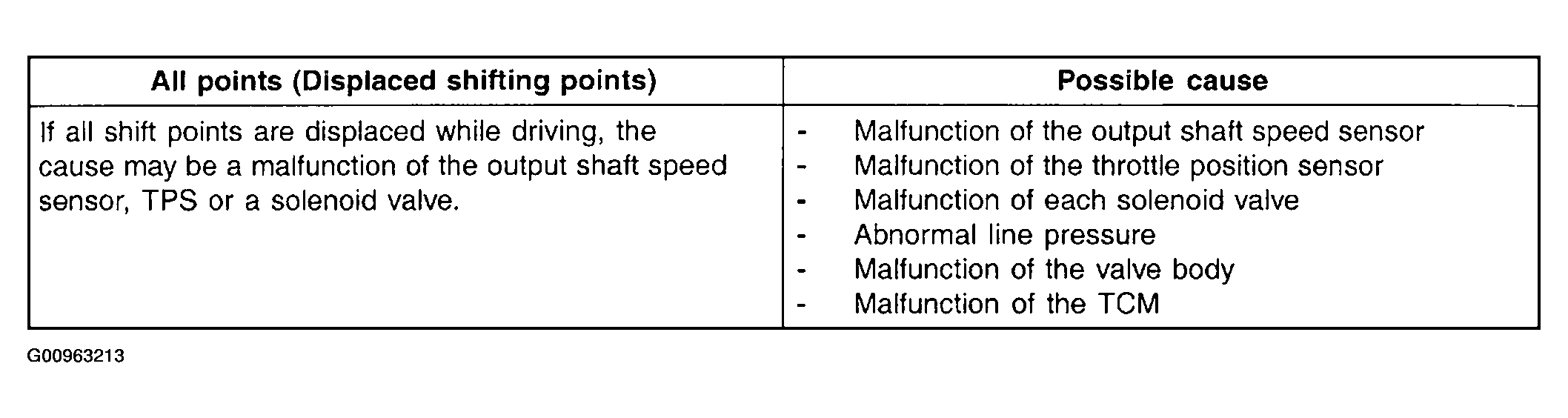

Fig 1: All Points (Displaced Shifting Points) Possible Causes Table
G00963213Courtesy of HYUNDAI MOTOR CO.

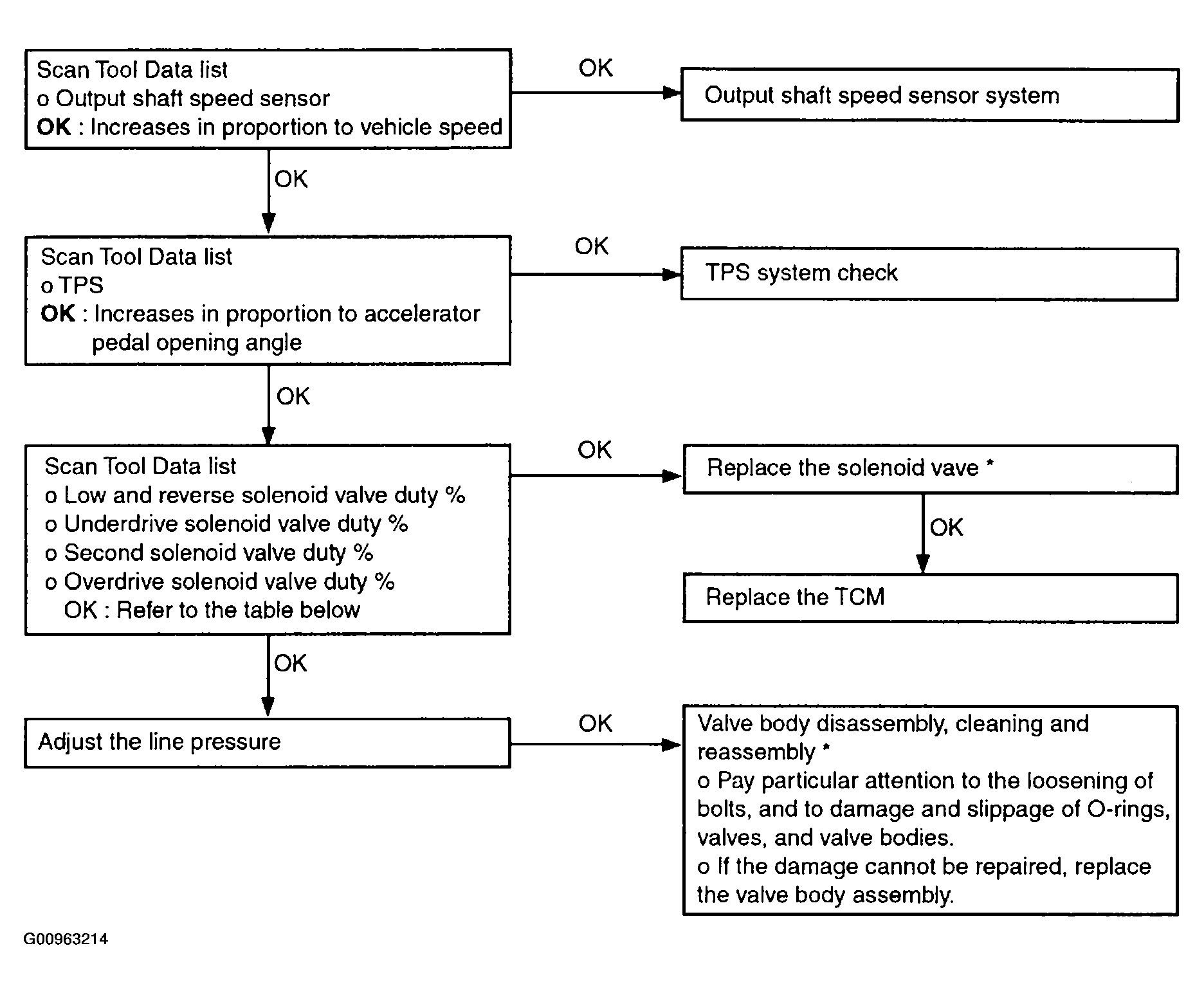

Fig 2: All Points (Displaced Shifting Points) Diagnostic Flow Chart
G00963214Courtesy of HYUNDAI MOTOR CO.
