Inspection Procedure 13

WARNING: This page is about a different variant/trim than selected.

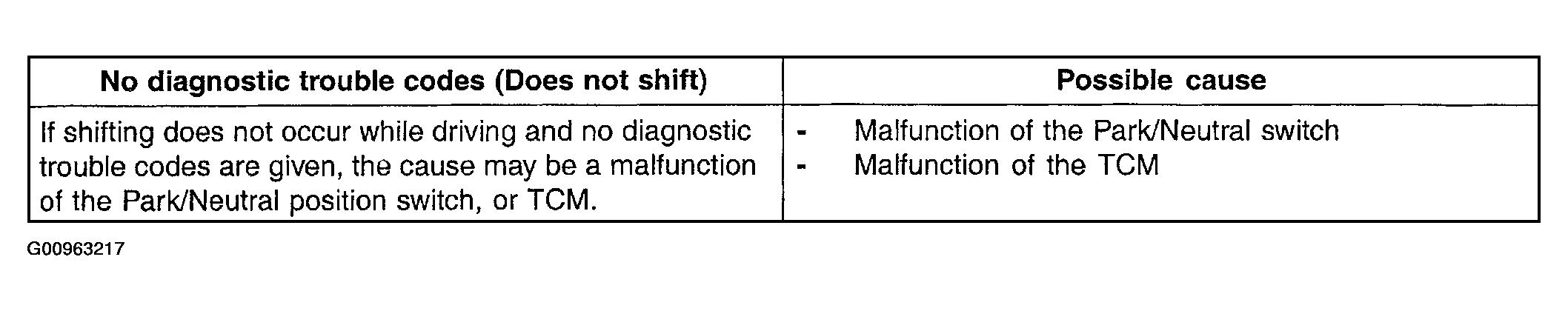

Fig 1: No Diagnostic Trouble Codes (Does Not Shift) Possible Causes Table
G00963217Courtesy of HYUNDAI MOTOR CO.

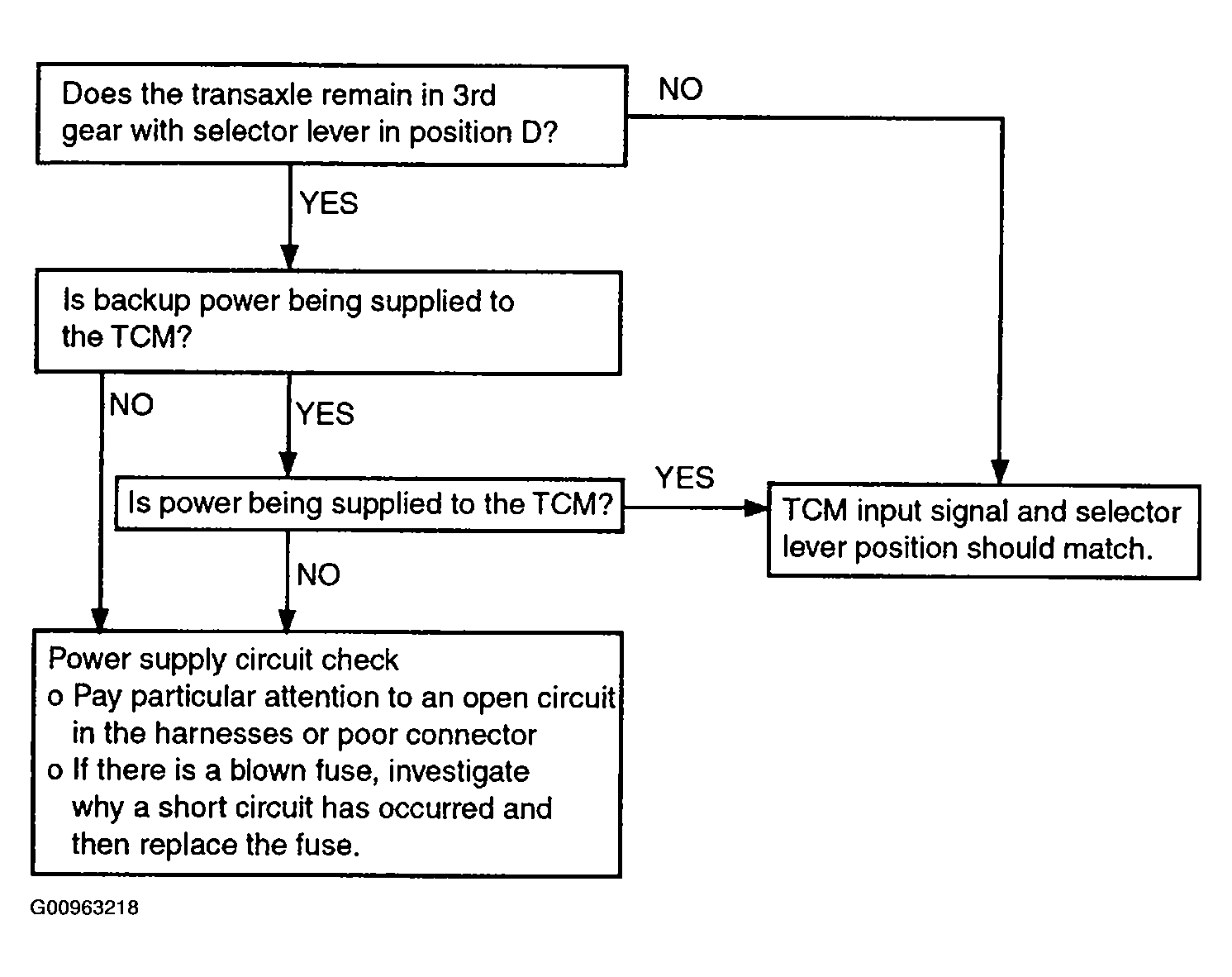

Fig 2: No Diagnostic Trouble Codes (Does Not Shift) Diagnostic Flow Chart
G00963218Courtesy of HYUNDAI MOTOR CO.
