Inspection Procedure 2

WARNING: This page is about a different variant/trim than selected.

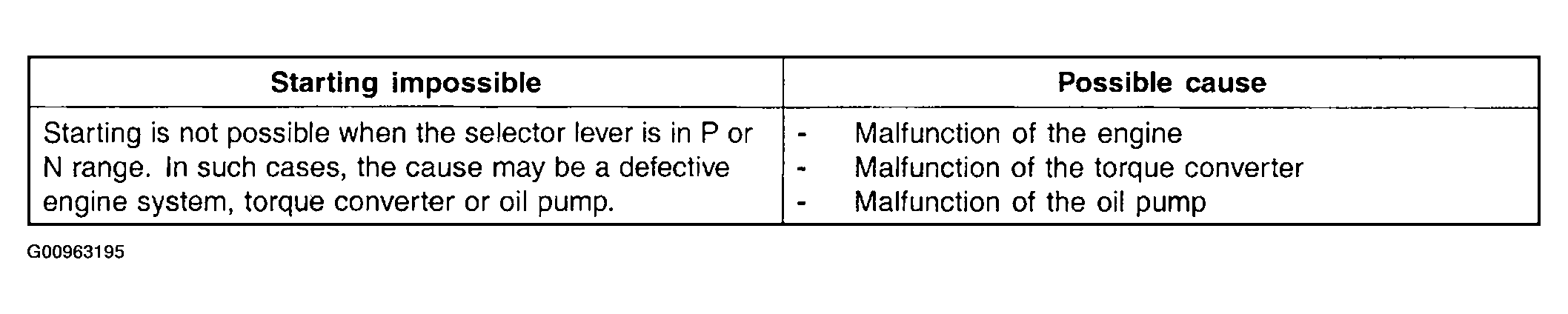

Fig 1: No Start Possible Causes Table
G00963195Courtesy of HYUNDAI MOTOR CO.

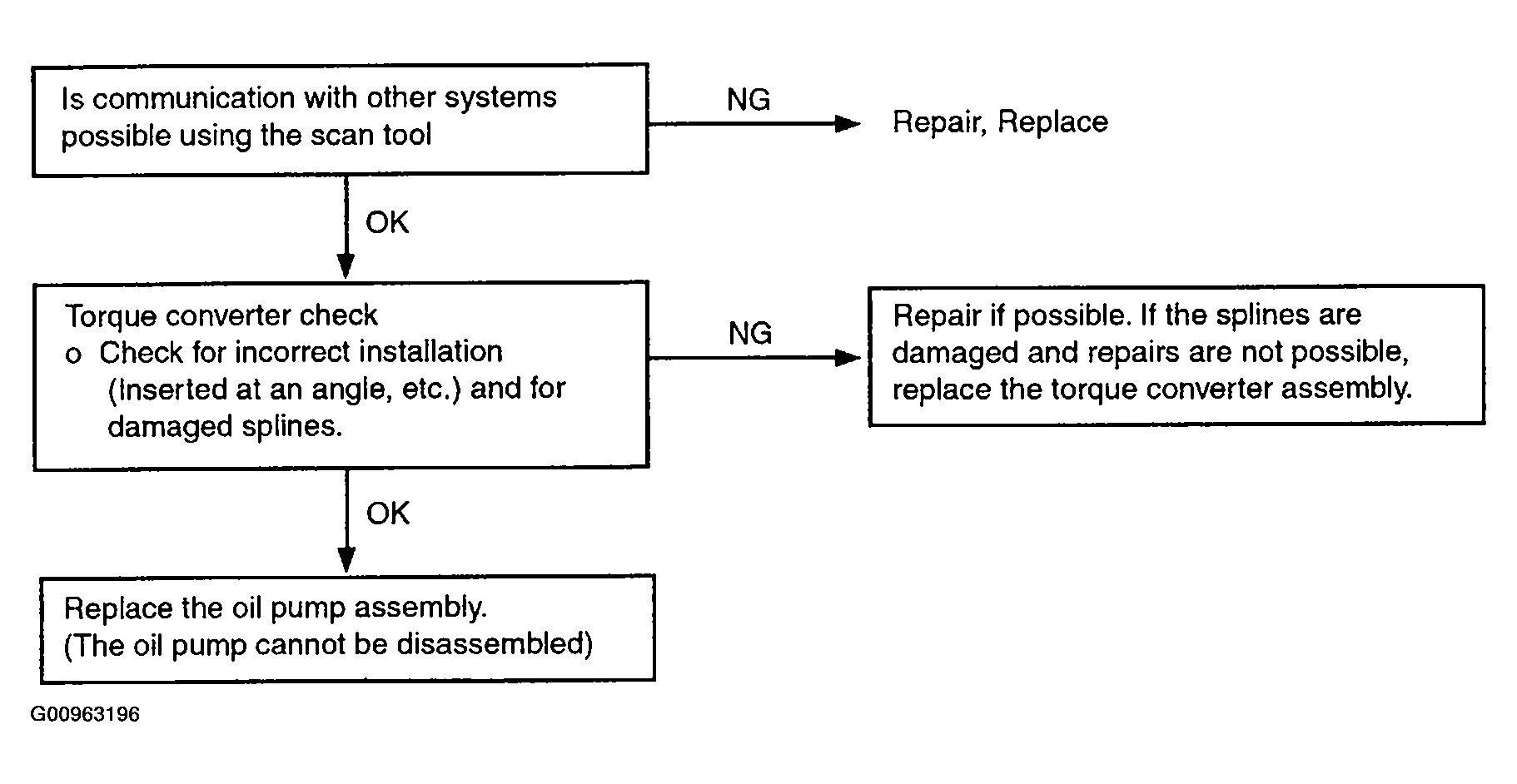

Fig 2: No Start Diagnostic Flow Chart
G00963196Courtesy of HYUNDAI MOTOR CO.
