Inspection Procedure 12

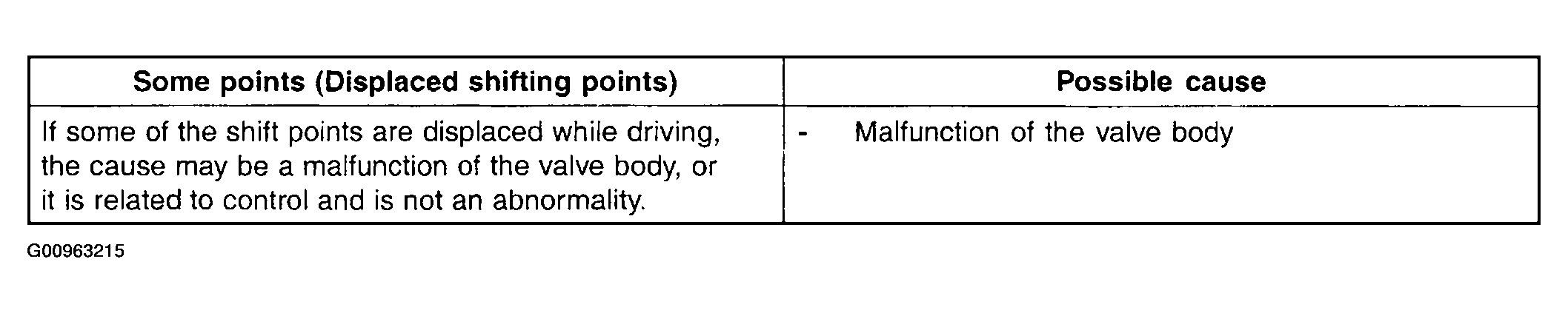

Fig 1: Some Points (Displaced Shifting Points) Possible Causes Table
G00963215Courtesy of HYUNDAI MOTOR CO.

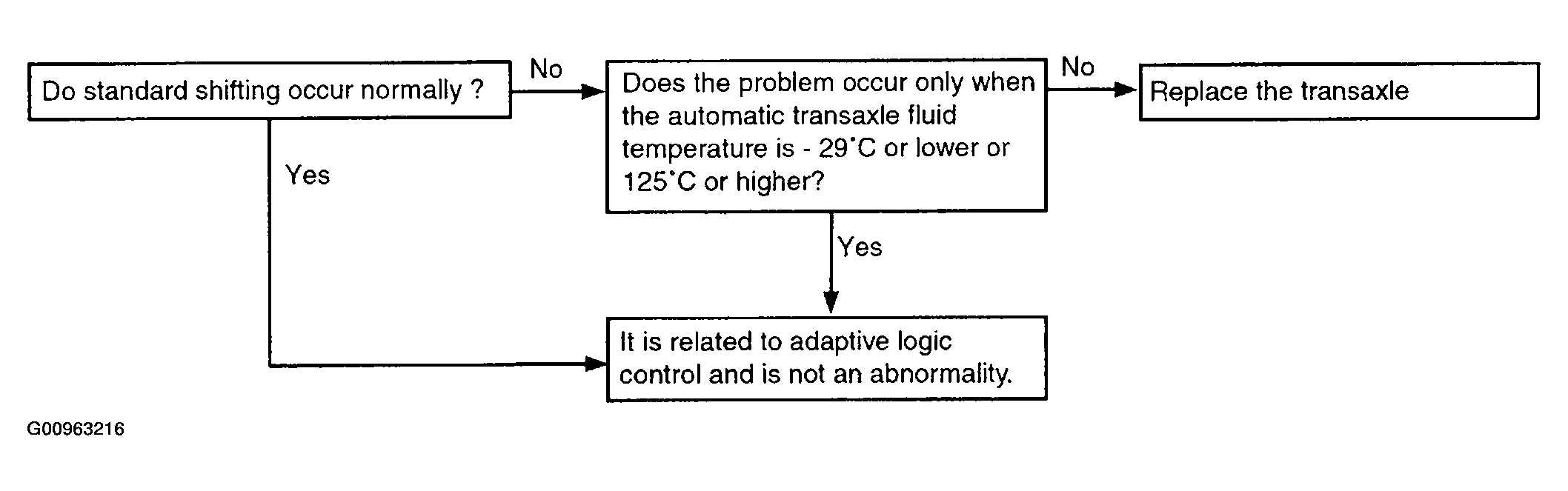

Fig 2: Some Points (Displaced Shifting Points) Diagnostic Flow Chart
G00963216Courtesy of HYUNDAI MOTOR CO.
