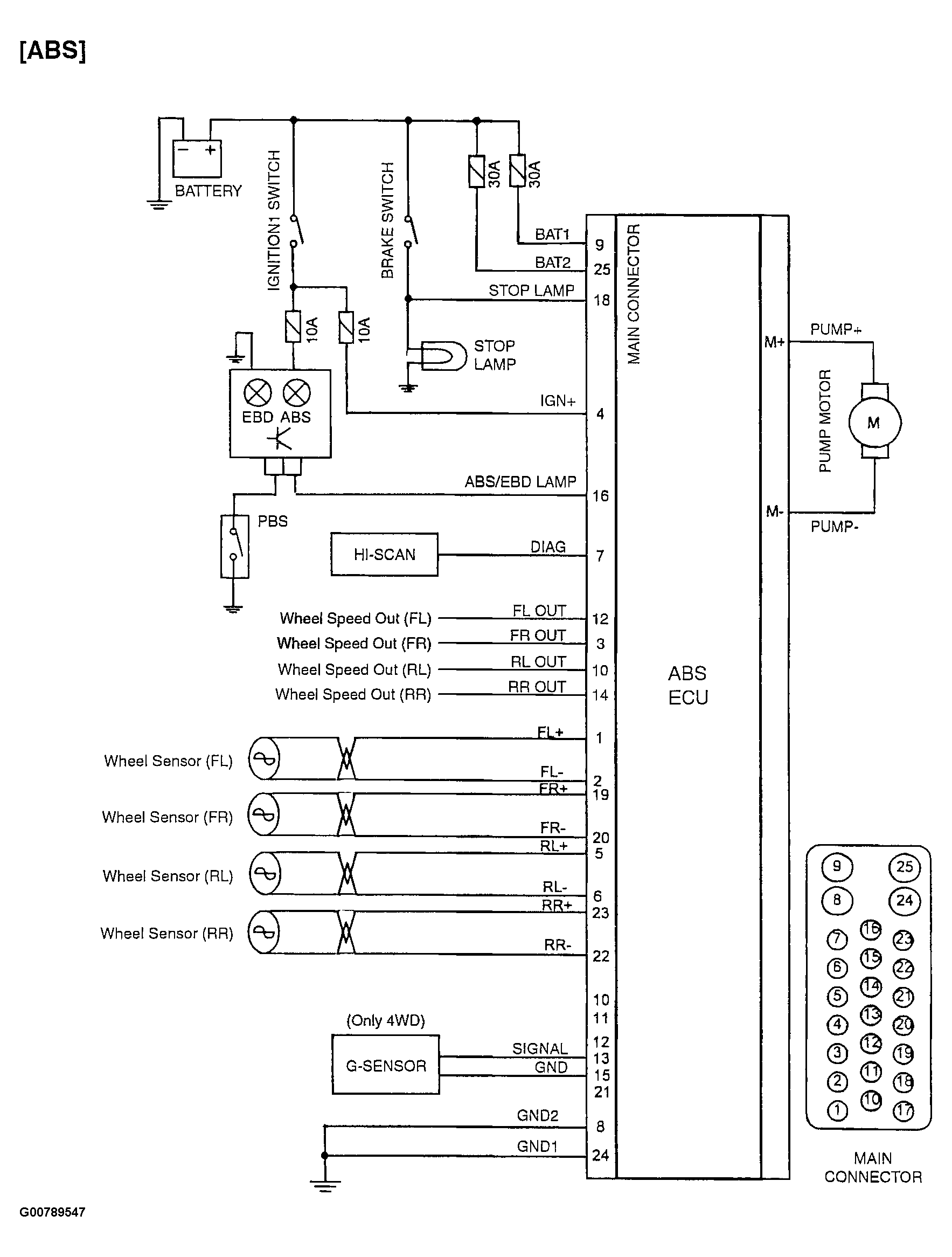

Home › Hyundai › 2003 › Santa Fe Base, Automatic › Repair and Diagnosis › Brakes › Traction Control › Anti-Lock Brake System › Abs (Anti-Lock Brake System) › Anti-Lock Braking System Control Module › Circuit Diagram
