HECU Block Diagram

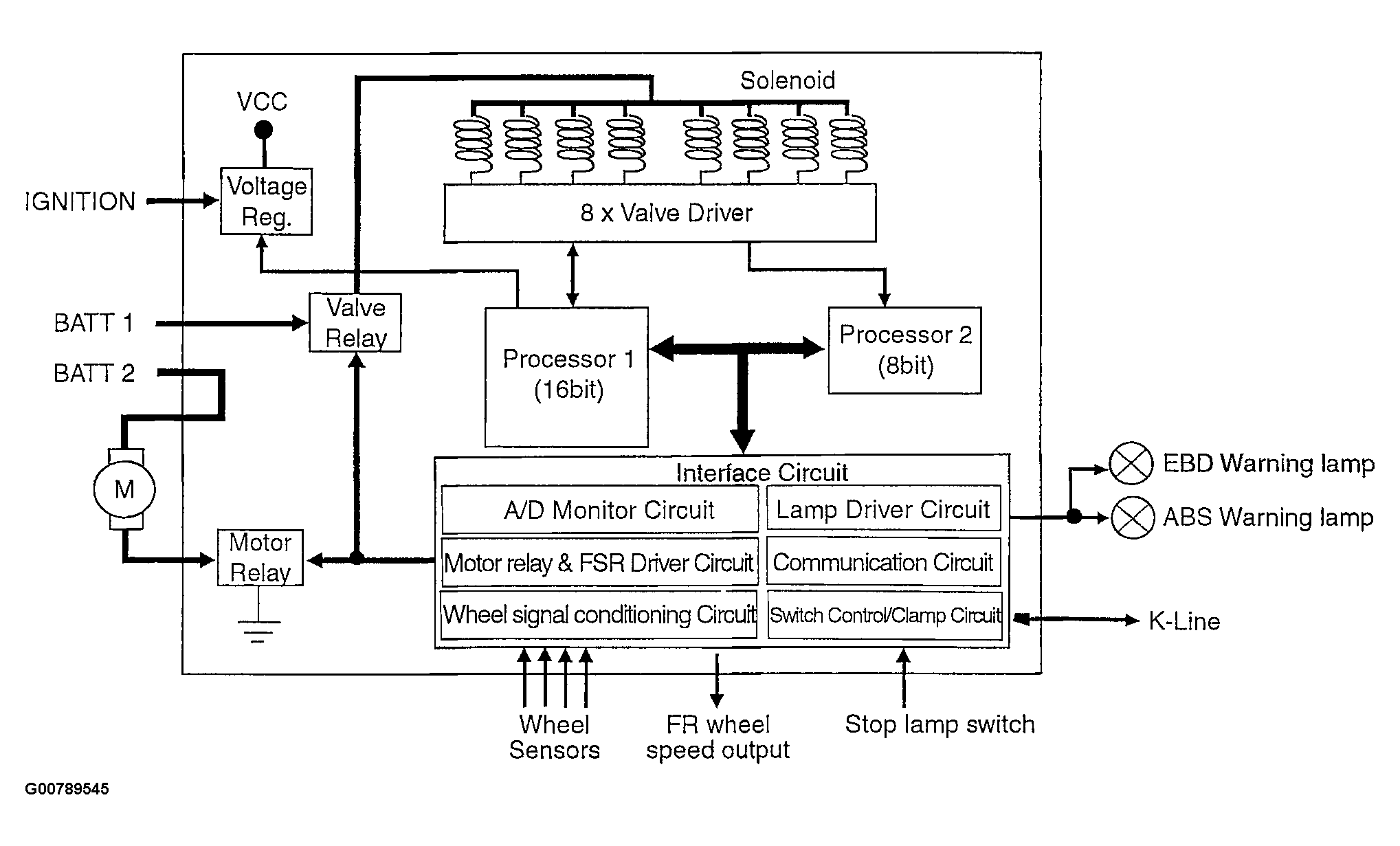

Fig 1: ABS ECU Block Diagram
G00789545Courtesy of HYUNDAI MOTOR CO.

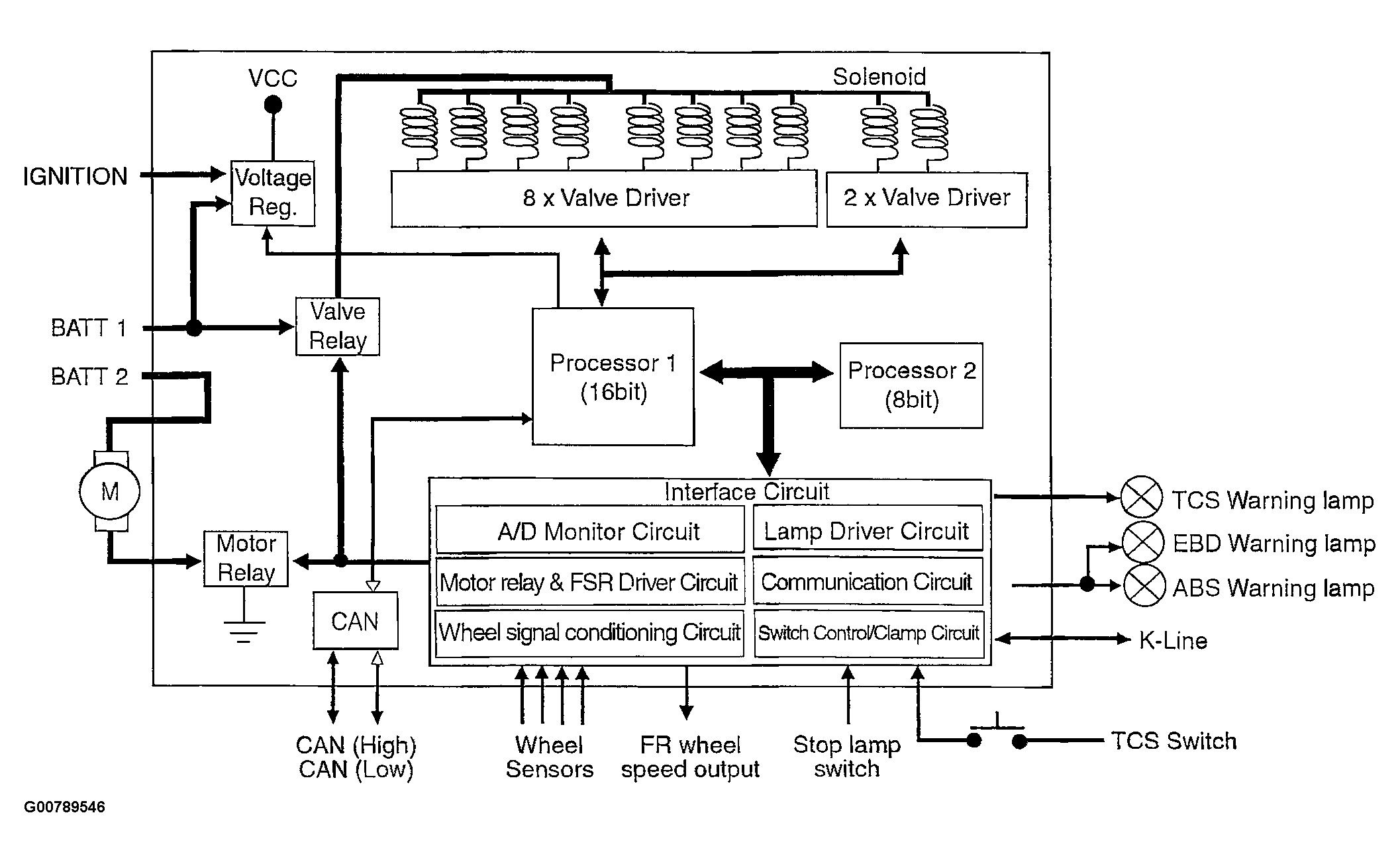

Fig 2: TCS ECU Block Diagram
G00789546Courtesy of HYUNDAI MOTOR CO.
