Abs (Anti-Lock Brake System): Components

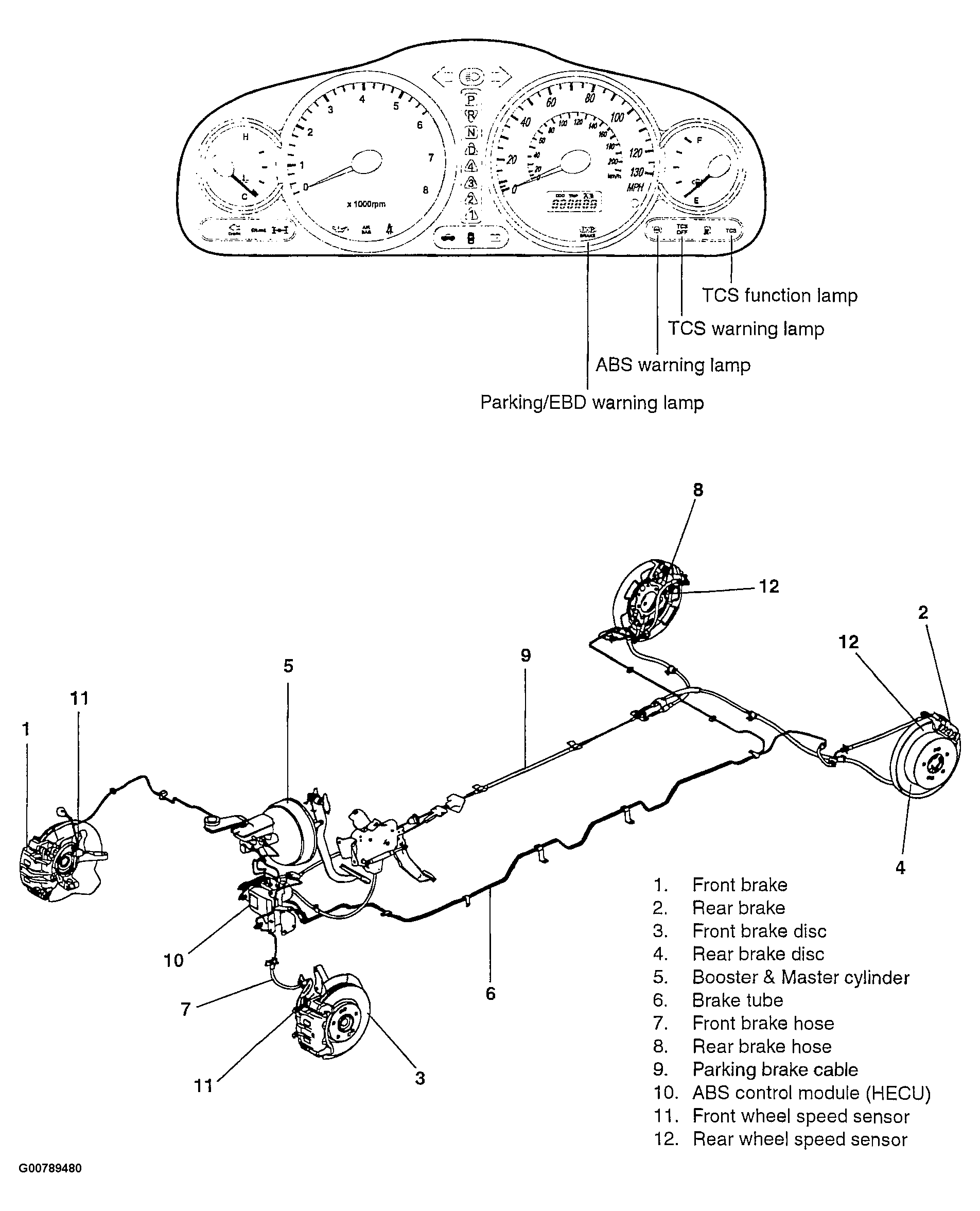

Fig 1: Identifying ABS Components
G00789480Courtesy of HYUNDAI MOTOR CO.
