Immobilizer Control Module Connector End View
Immobilizer Control Module Connector End View

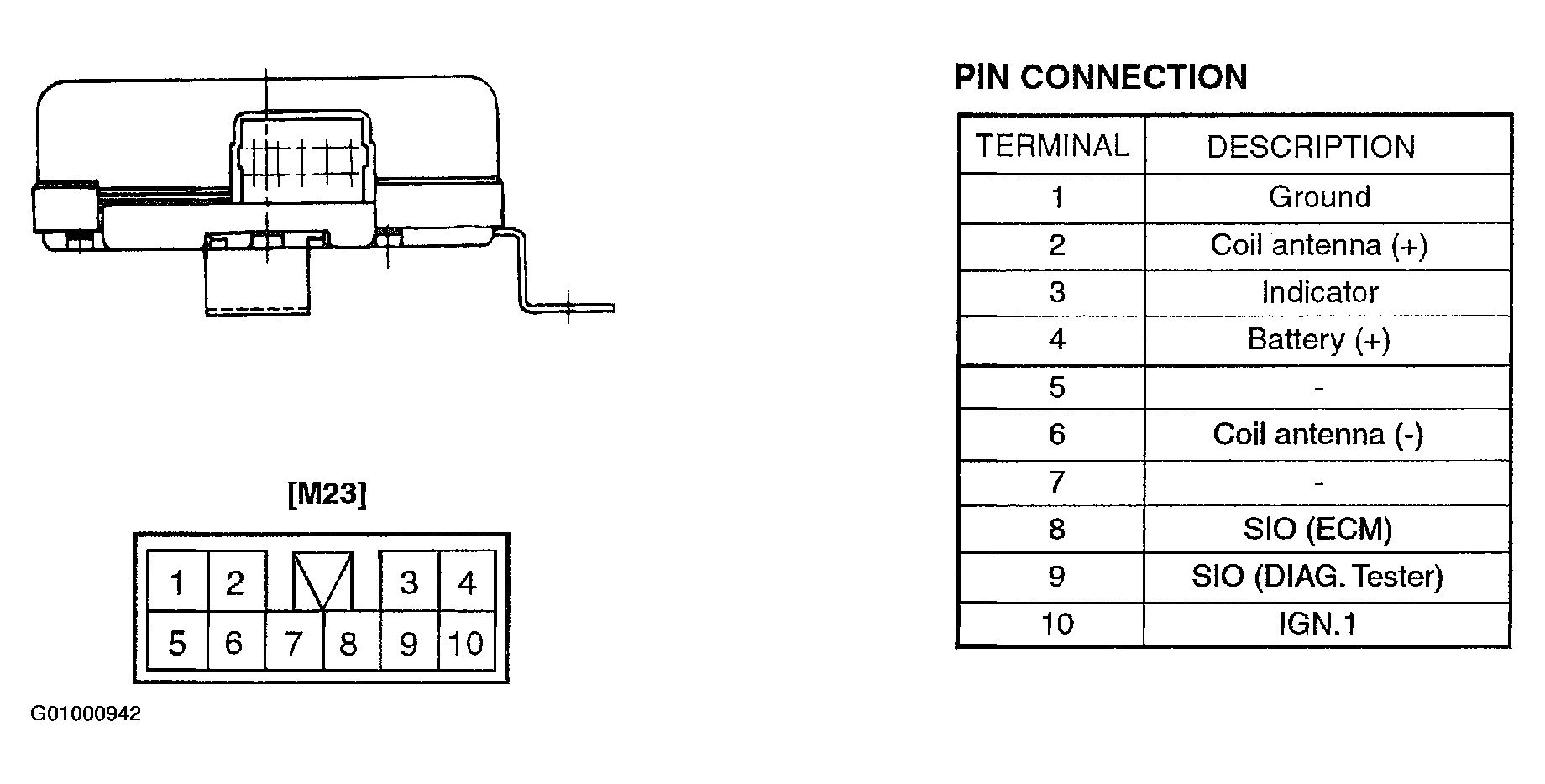

Fig 1: Immobilizer Control Module Connector End View
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
