Main Moving System: Crankshaft: Components

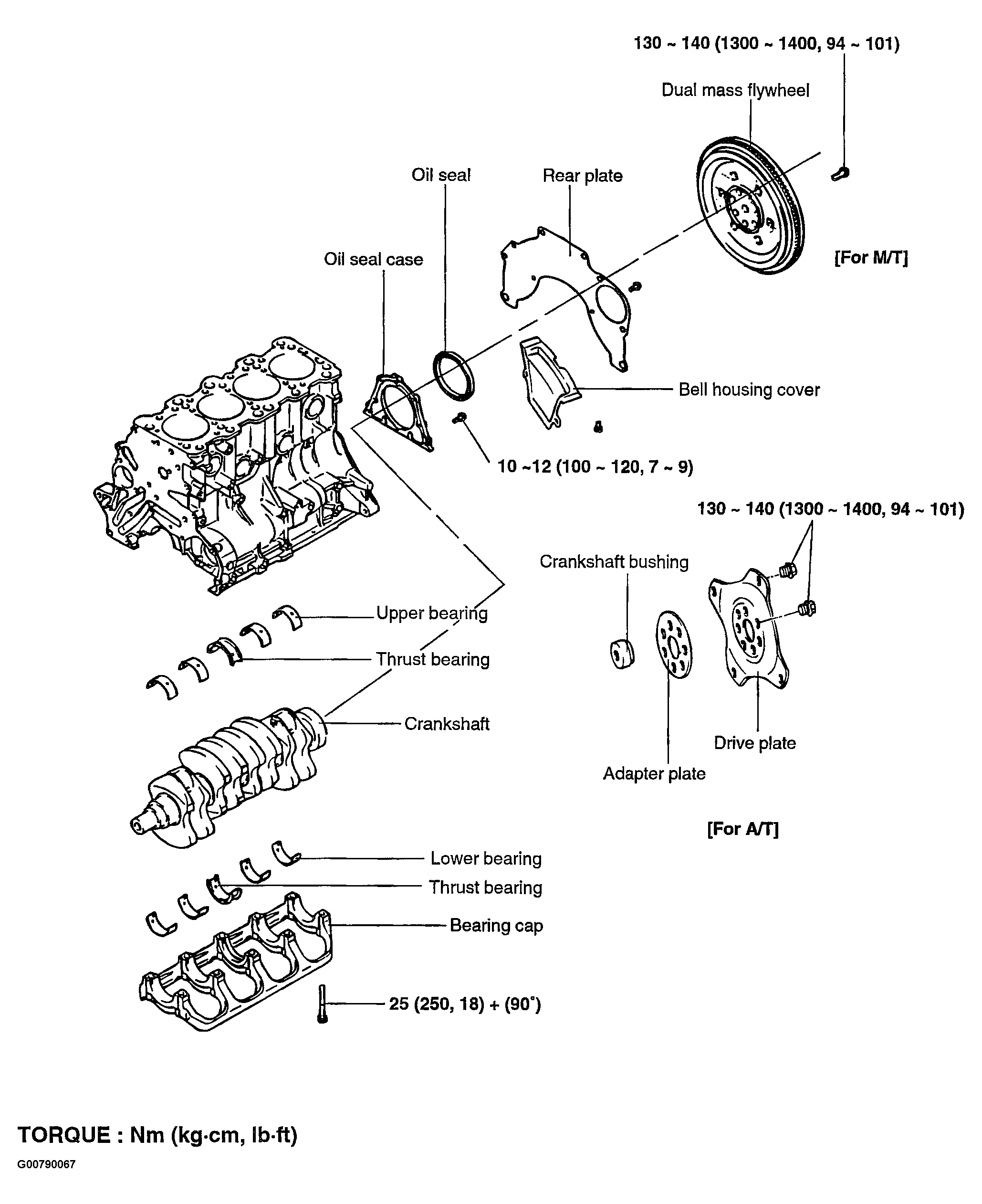

Fig 1: Crankshaft Components
G00790067Courtesy of HYUNDAI MOTOR CO.
