Timing Belt: Removal

CAUTION: Rotate the crankshaft clockwise and align the timing marks to set the No. 1 cylinder's piston to TDC.
At this time, the timing marks of the camshaft sprocket and cylinder head cover should coincide with each other and the dowel pin of the camshaft-sprocket should be at the upper side.

Remove the crankshaft pulley, engine coolant pump pulley and drive belt.
Remove the timing belt cover.
Remove the auto tensioner.

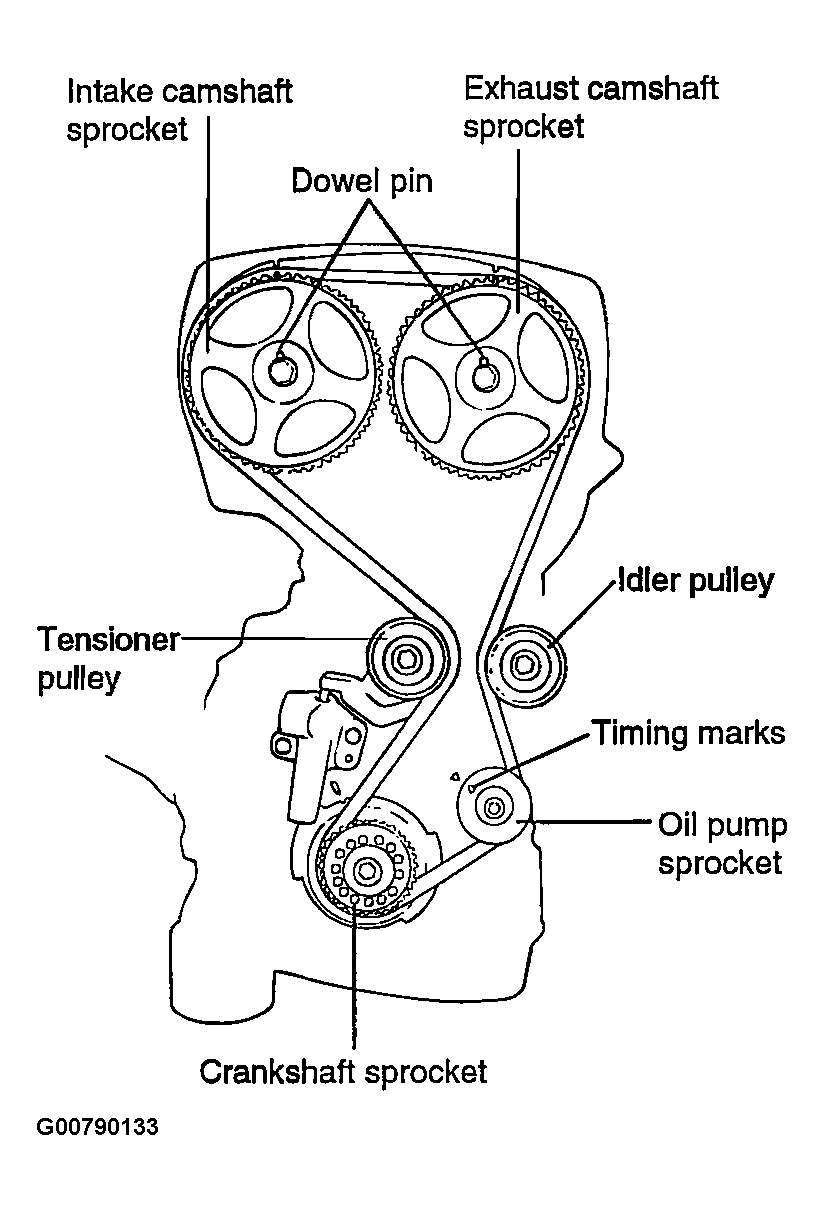

Fig 1: Identifying Timing Belt & Pulleys
Courtesy of HYUNDAI MOTOR CO.

NOTE: If the timing belt is reused, make an arrow mark indicating the turning direction (or the front of the engine) to make sure that the belt is reinstalled in the same direction as before.
In this case the timing marks on the camshaft sprocket and on the locker cover should be aligned and the dowel pins on the camshaft sprockets should be positioned upward.
Remove the timing belt.

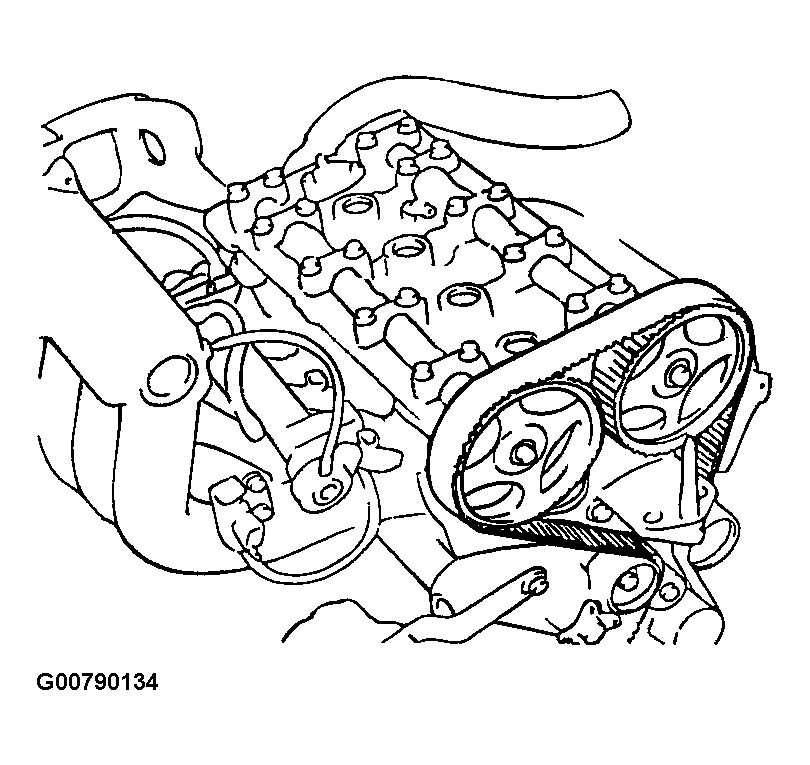

Fig 2: View Of Timing Belt
Courtesy of HYUNDAI MOTOR CO.
Remove the camshaft sprockets.
NOTE: Be careful not to damage the cylinder head and camshaft sprocket with the wrench.

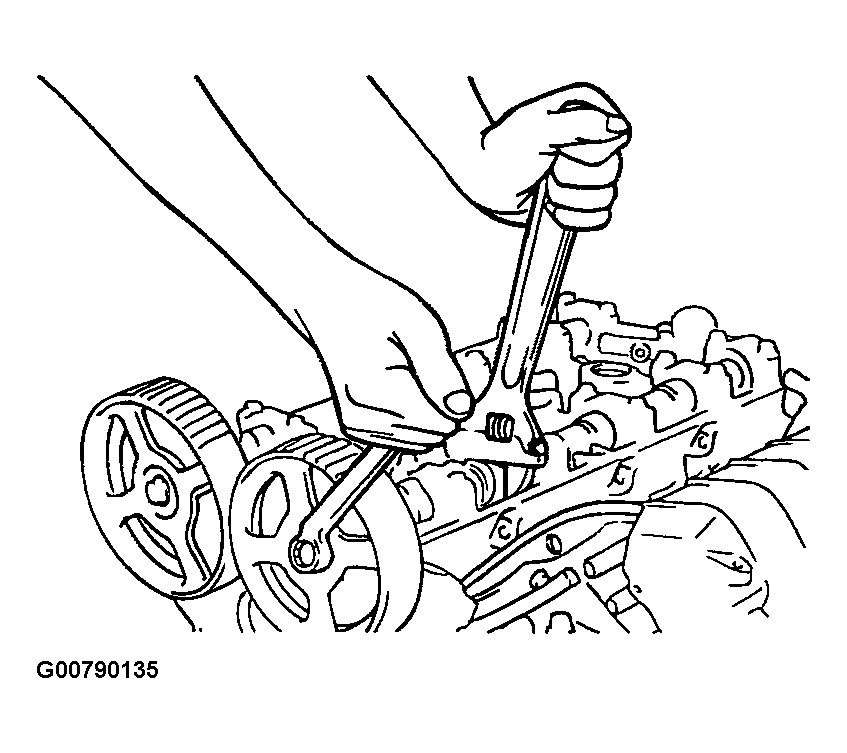

Fig 3: Removing Camshaft Sprockets
Courtesy of HYUNDAI MOTOR CO.
When the oil pump sprocket nut is removed, first remove the plug at the left side of the cylinder block and insert a screwdriver to keep the left counter balance shaft in position. Use a screwdriver with a shaft measuring 8 mm (0.3in.) in diameter which can be inserted by more than 60 mm (2.36 in.)
Remove the oil pump sprocket retaining nut and the oil pump sprocket.

Fig 4: Securing Counter Balance Shaft
Courtesy of HYUNDAI MOTOR CO.
Loosen the right counter balance shaft sprocket mounting bolt until it can be loosened by hand.
Next, remove the tensioner "B" and then the timing belt "B".
CAUTION: After the timing belt "B" is removed, do not attempt to loosen bolts while holding the sprocket with pliers or any other tool.
Remove the crankshaft sprocket "B" from the crankshaft.

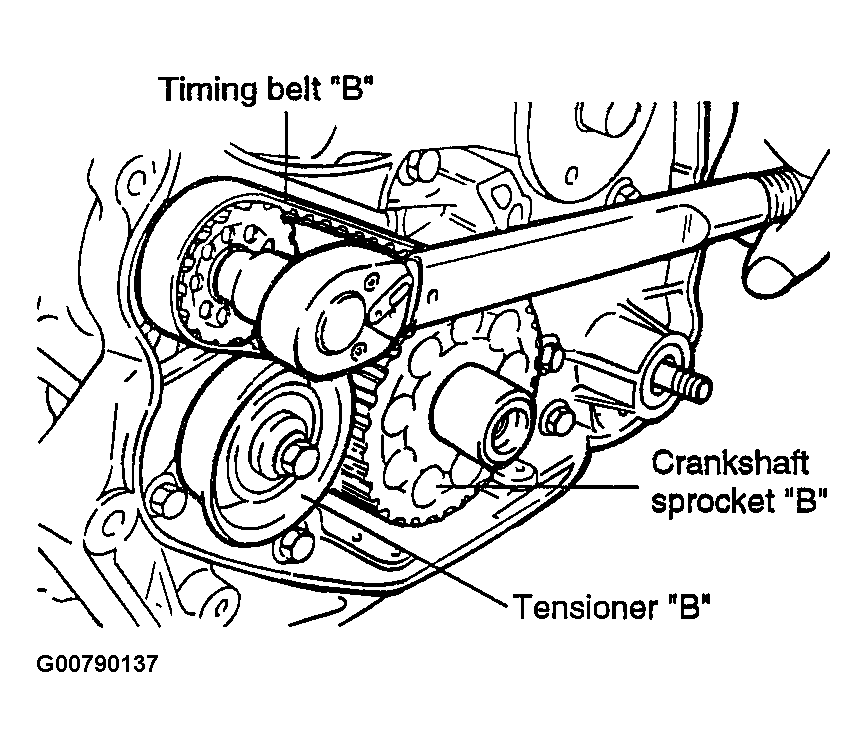

Fig 5: Removing Crankshaft Sprocket "B"

Courtesy of HYUNDAI MOTOR CO.
