Diagnostic Troubleshooting Flow
Diagnostic Troubleshooting Flow

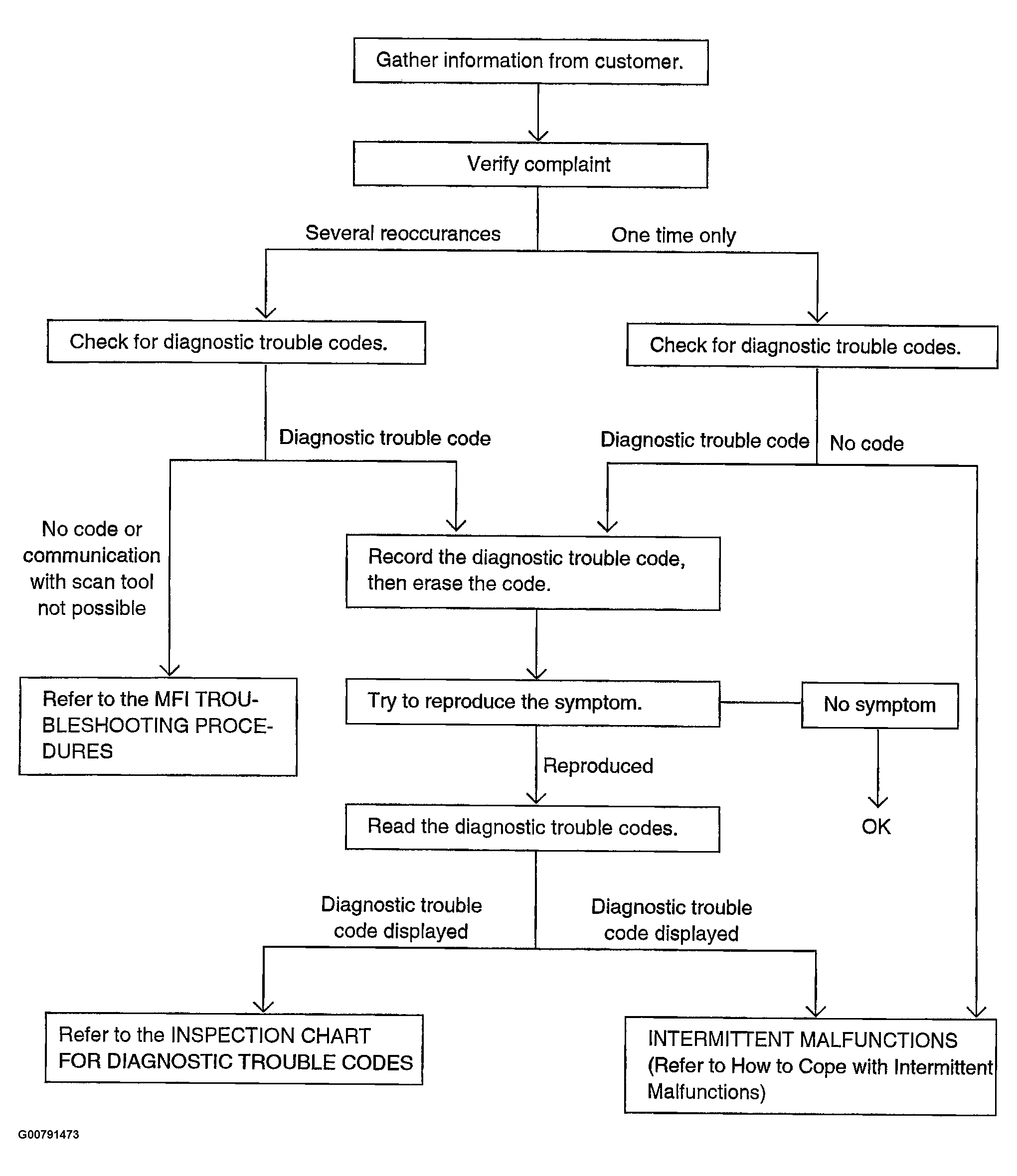

Fig 1: Diagnostic Troubleshooting Flow Chart
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
