Front Hub/Knuckle: Components

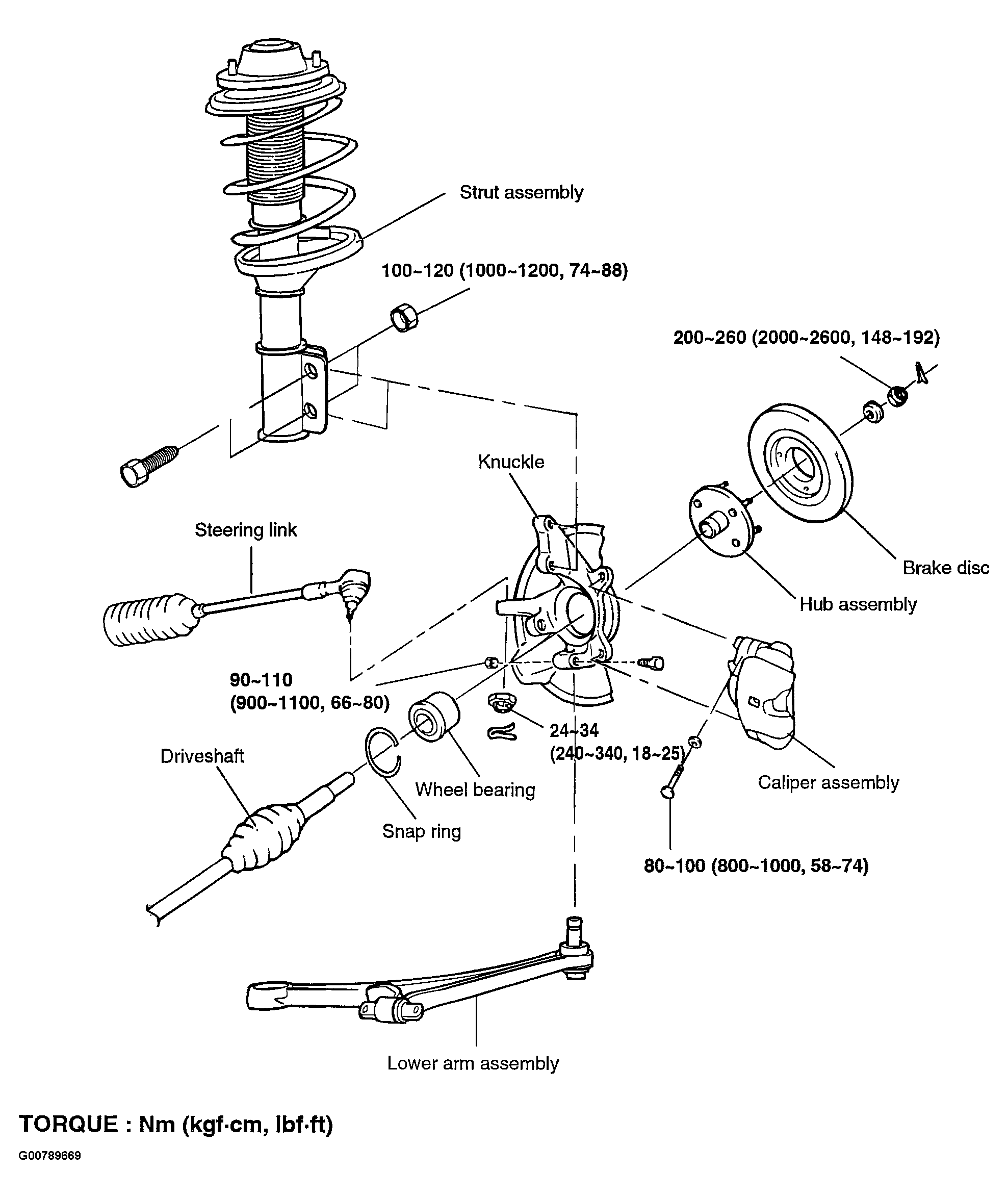

Fig 1: Front Hub/Knuckle Components
G00789669Courtesy of HYUNDAI MOTOR CO.
