Front Hub/Knuckle: Disassembly

  1. Remove the brake disc from the hub.
  2. Remove the snap ring.

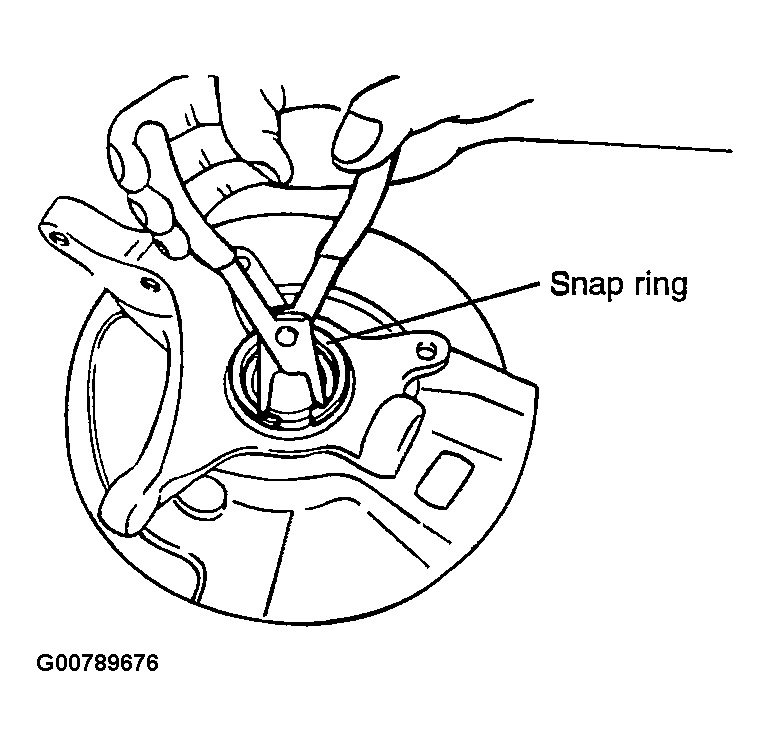

    Fig 1: Removing Snap Ring
    G00789676Courtesy of HYUNDAI MOTOR CO.
  3. Remove the hub from the knuckle using the special tools (09517-21500, 09517-3A000, 09517-29000).
    • Install the special tool to the hub and knuckle.
    • Tighten the nut of the special tool to disconnect the hub from the knuckle.

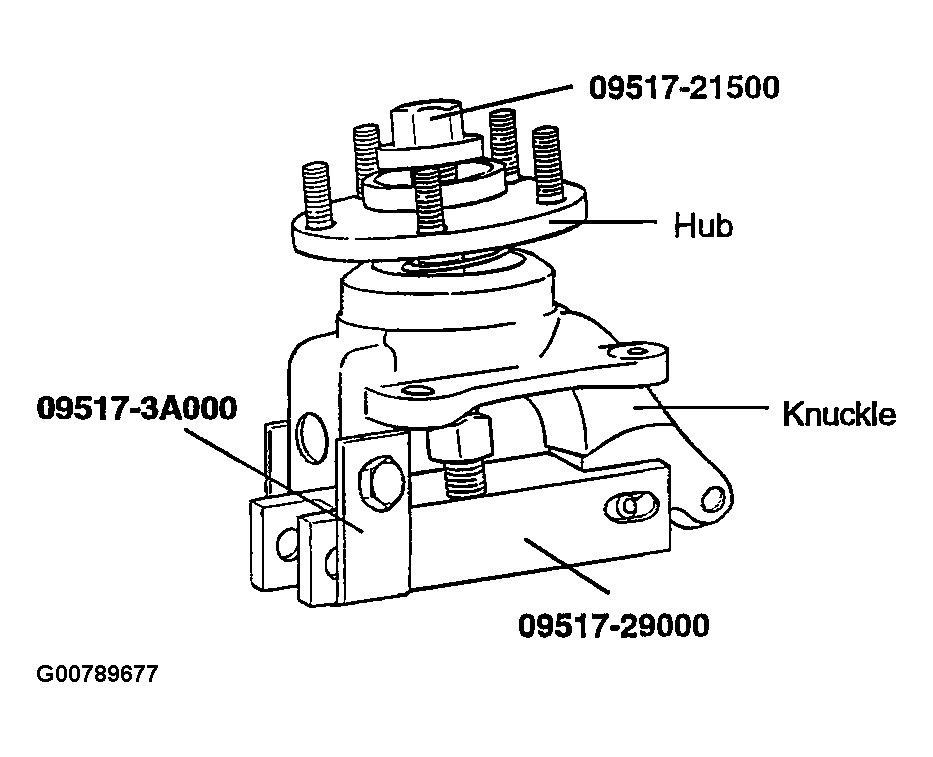

    Fig 2: Removing Hub From Knuckle
    G00789677Courtesy of HYUNDAI MOTOR CO.
  4. Using the special tools (09455-21000, 09545-34100), remove the wheel bearing inner race from the hub.

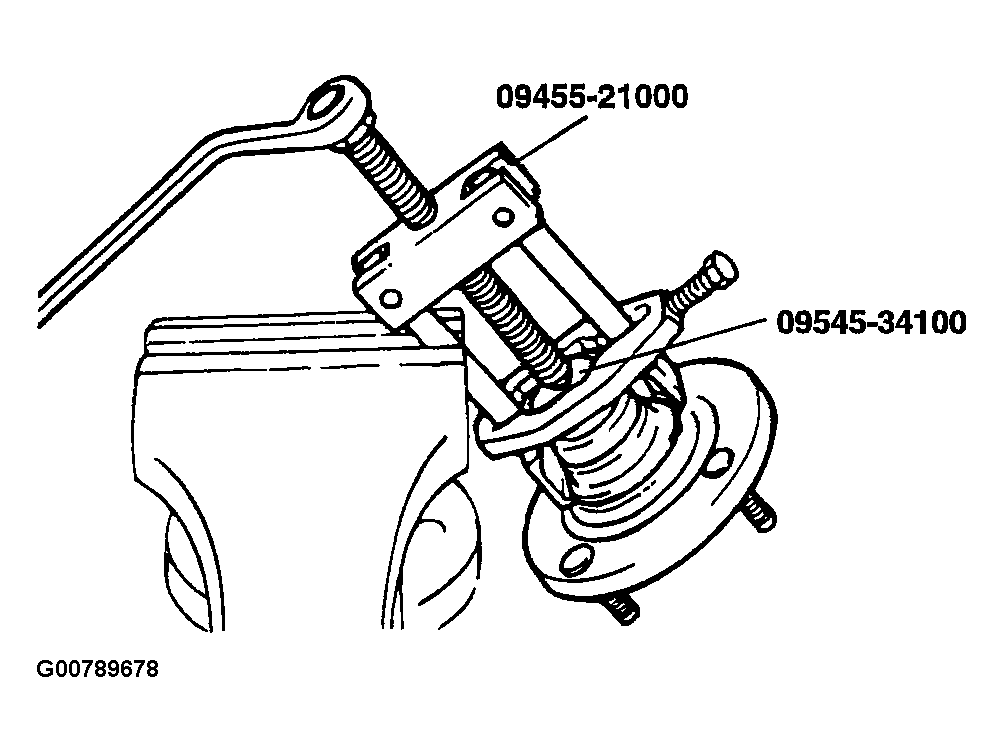

    Fig 3: Removing Wheel Bearing Inner Race From Hub
    G00789678Courtesy of HYUNDAI MOTOR CO.
  5. Using the special tools (09532-32000, 09216-22100), remove the wheel bearing outer race from the knuckle.
    Fig 4: Removing Wheel Bearing Outer Race From Knuckle
    G00789679Courtesy of HYUNDAI MOTOR CO.
