Front Strut Assembly: Removal

Remove the wheel and tire.
Detach the brake hose clip from the strut assembly mounting bracket.
Detach the wheel speed sensor harness from the knuckle
CAUTION: Be careful not to damage the wheel speed sensor.

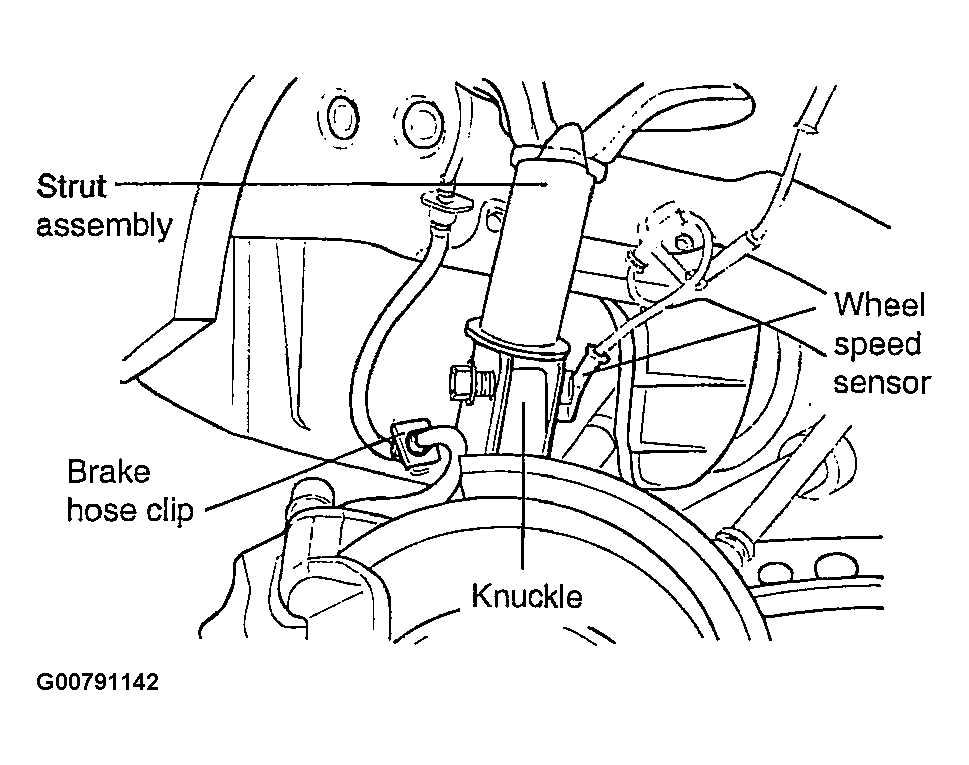

Fig 1: Identifying Wheel Speed Sensor
Courtesy of HYUNDAI MOTOR CO.
Remove the stabilizer bar link.

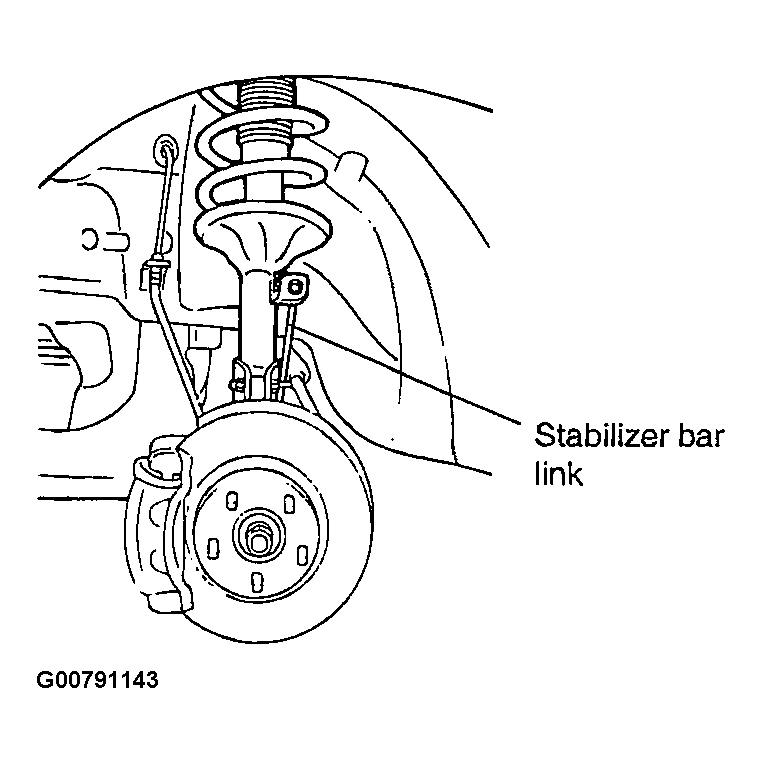

Fig 2: Identifying Stabilizer Bar Link
Courtesy of HYUNDAI MOTOR CO.
Remove the knuckle from the strut assembly.

Fig 3: Identifying Knuckle & Strut Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the front strut upper mounting nuts (3).

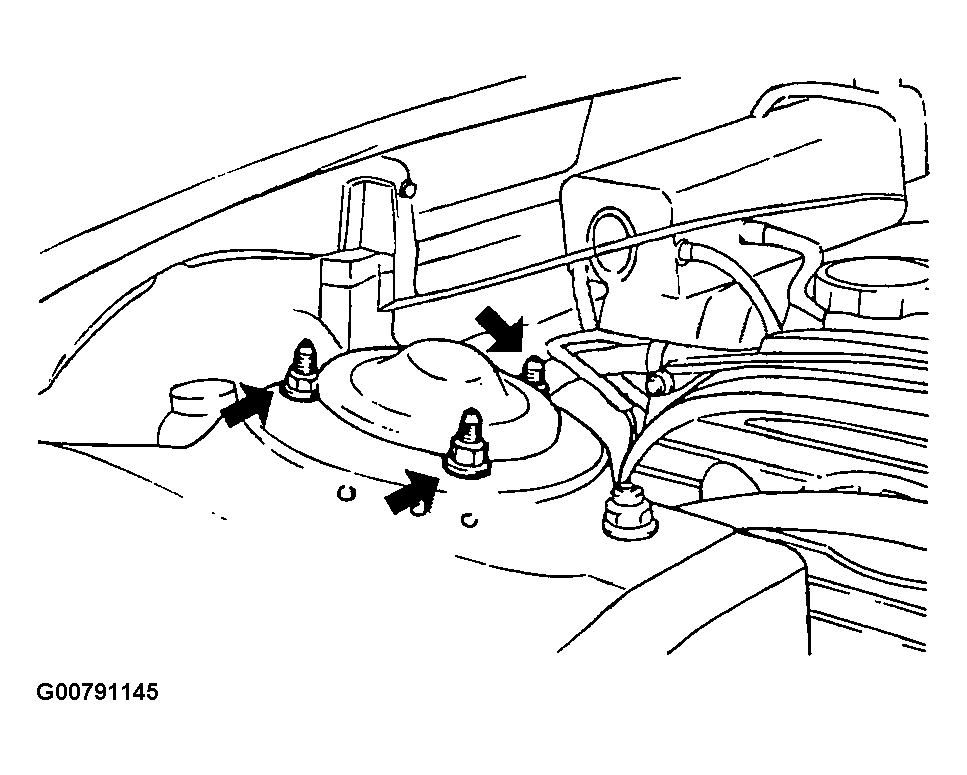

Fig 4: Identifying Upper Strut-To-Body Nuts
Courtesy of HYUNDAI MOTOR CO.
Remove the strut assembly.
