Automatic Transaxle Components: Notes

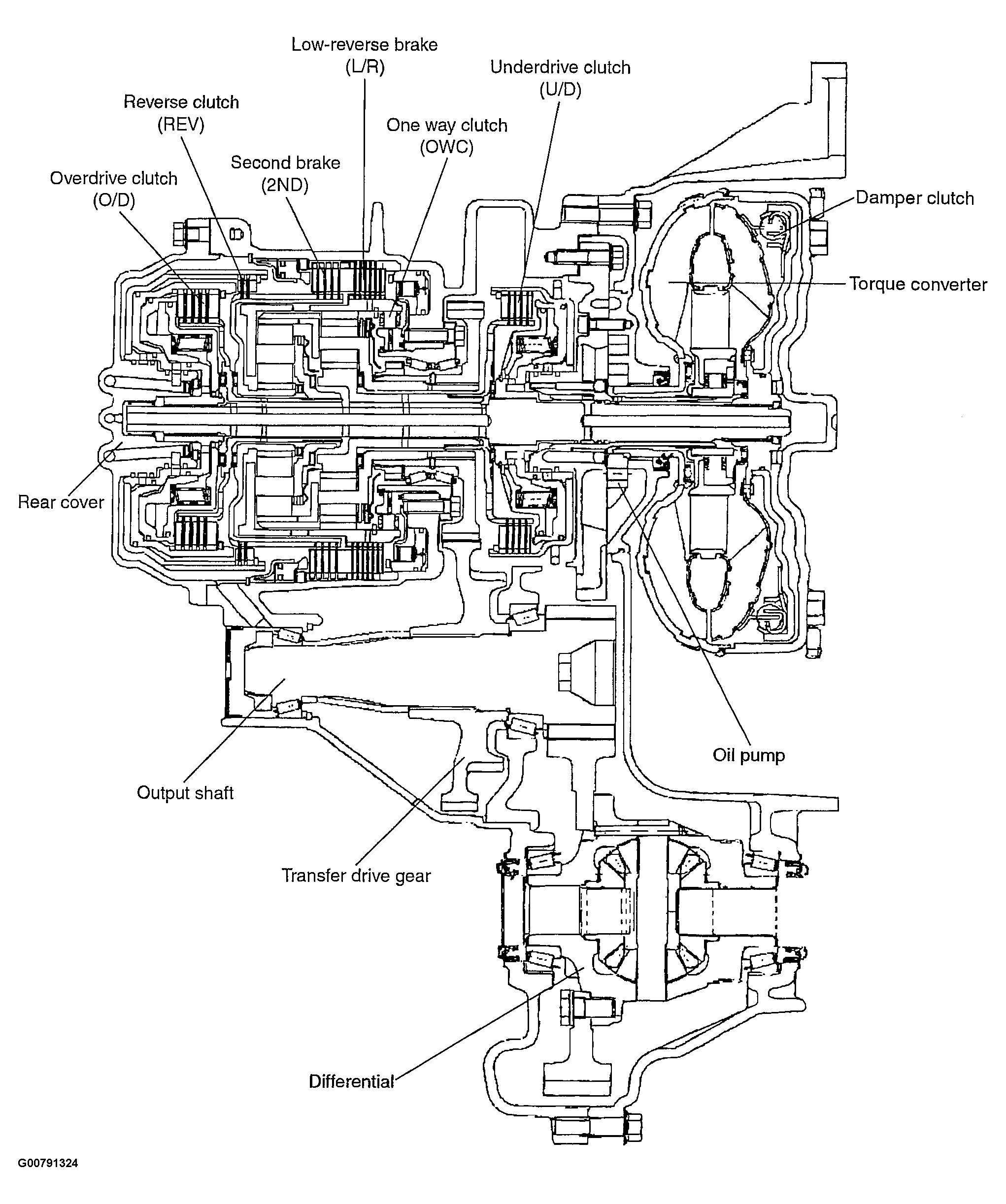

Fig 1: Automatic Transaxle Components
G00791324Courtesy of HYUNDAI MOTOR CO.
