Standard Hydraulic Pressure Test (5A/T)

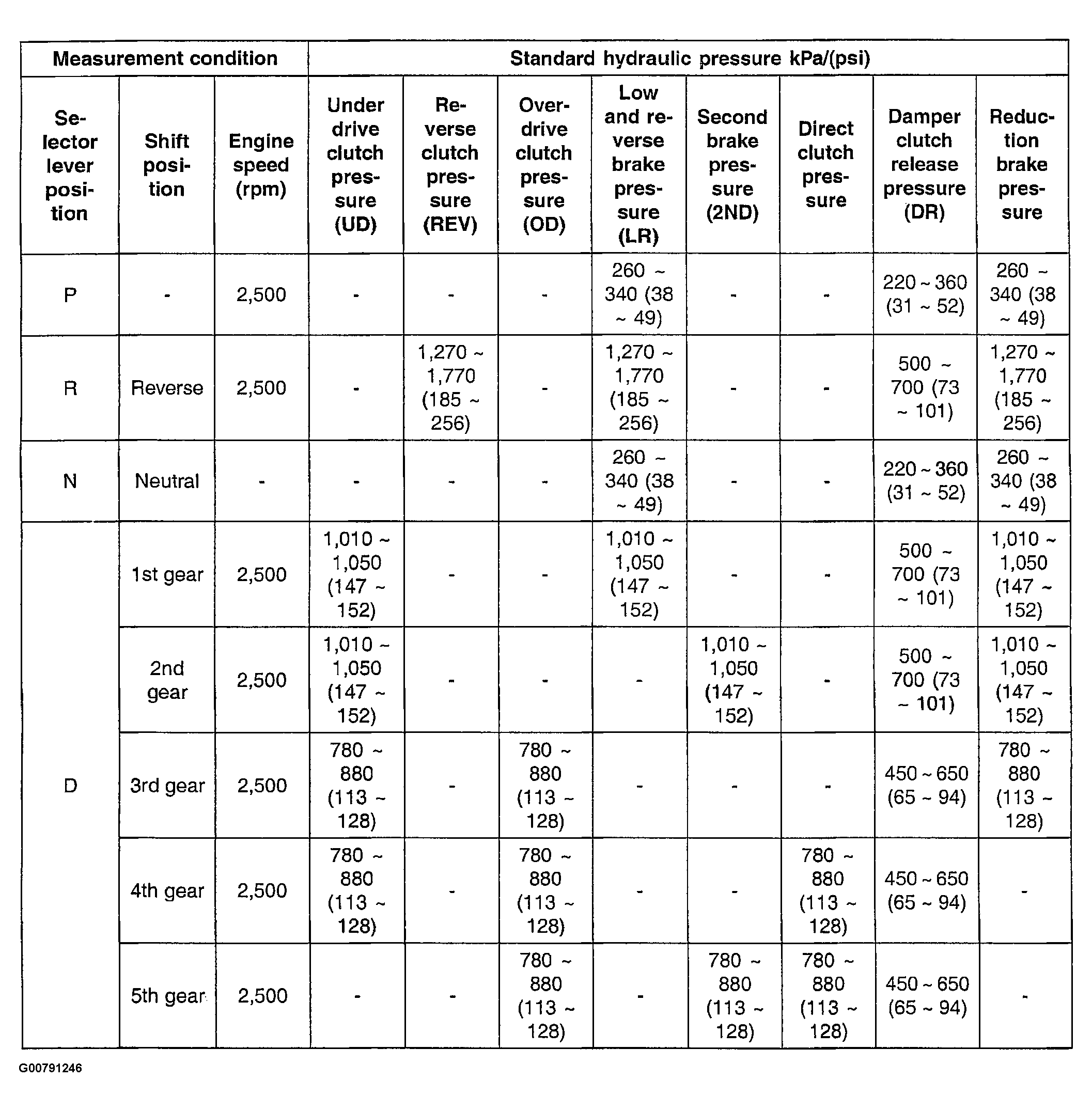

Fig 1: Standard Hydraulic Pressure Test (5A/T) Specification Table
G00791246Courtesy of HYUNDAI MOTOR CO.
