Transaxle Range Switch Continuity Check

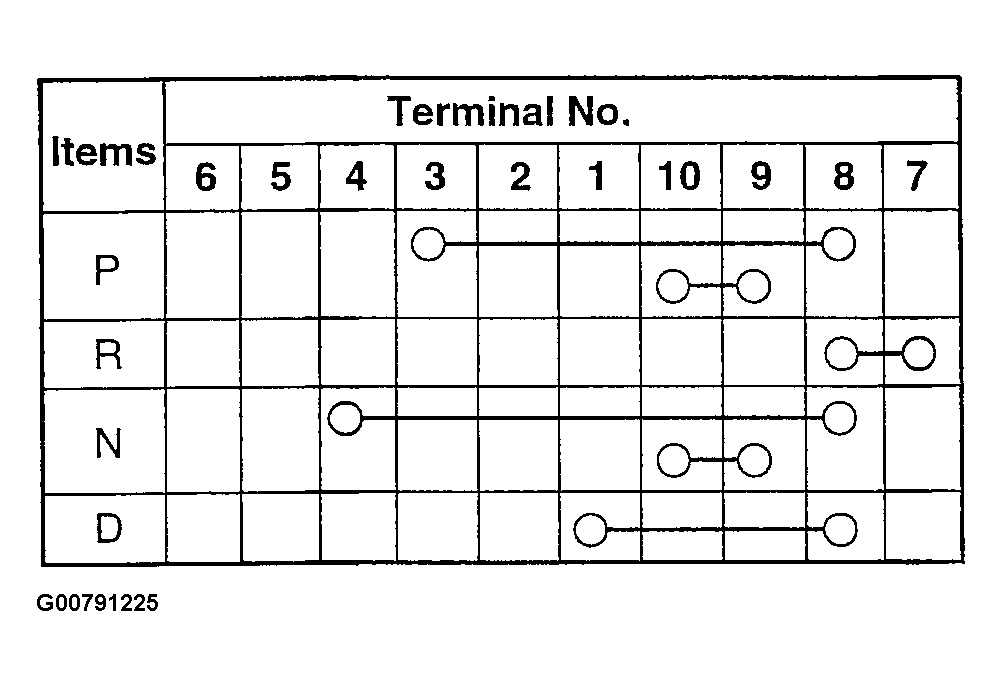

Fig 1: Transaxle Range Switch Continuity Check Table

Courtesy of HYUNDAI MOTOR CO.

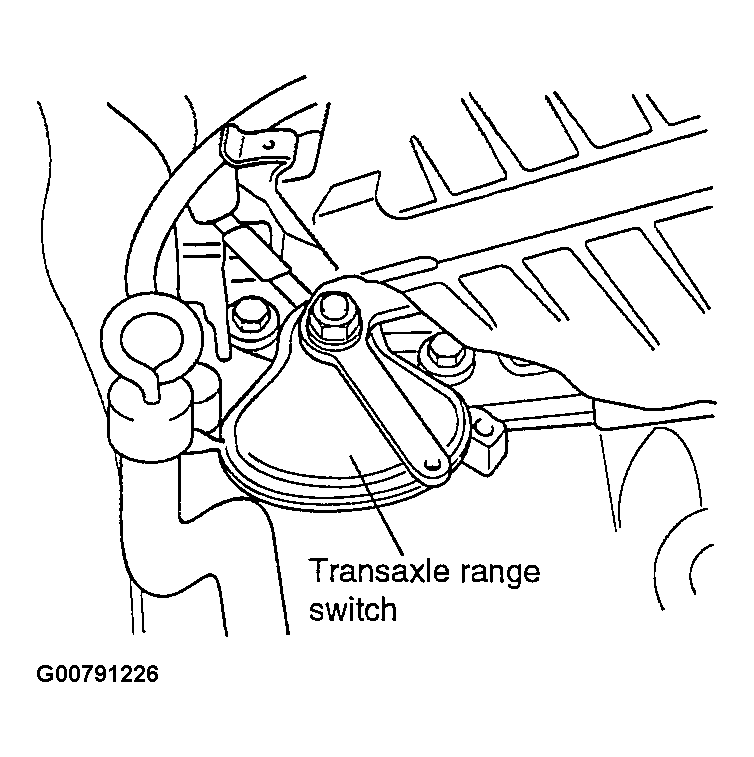

Fig 2: Locating Transaxle Range Switch

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying Transaxle Range Switch Positions & Connector Terminals

Courtesy of HYUNDAI MOTOR CO.
