Cruise Control System
›
System Block Diagram
›
Component Parts & Function Outline
Component Parts & Function Outline

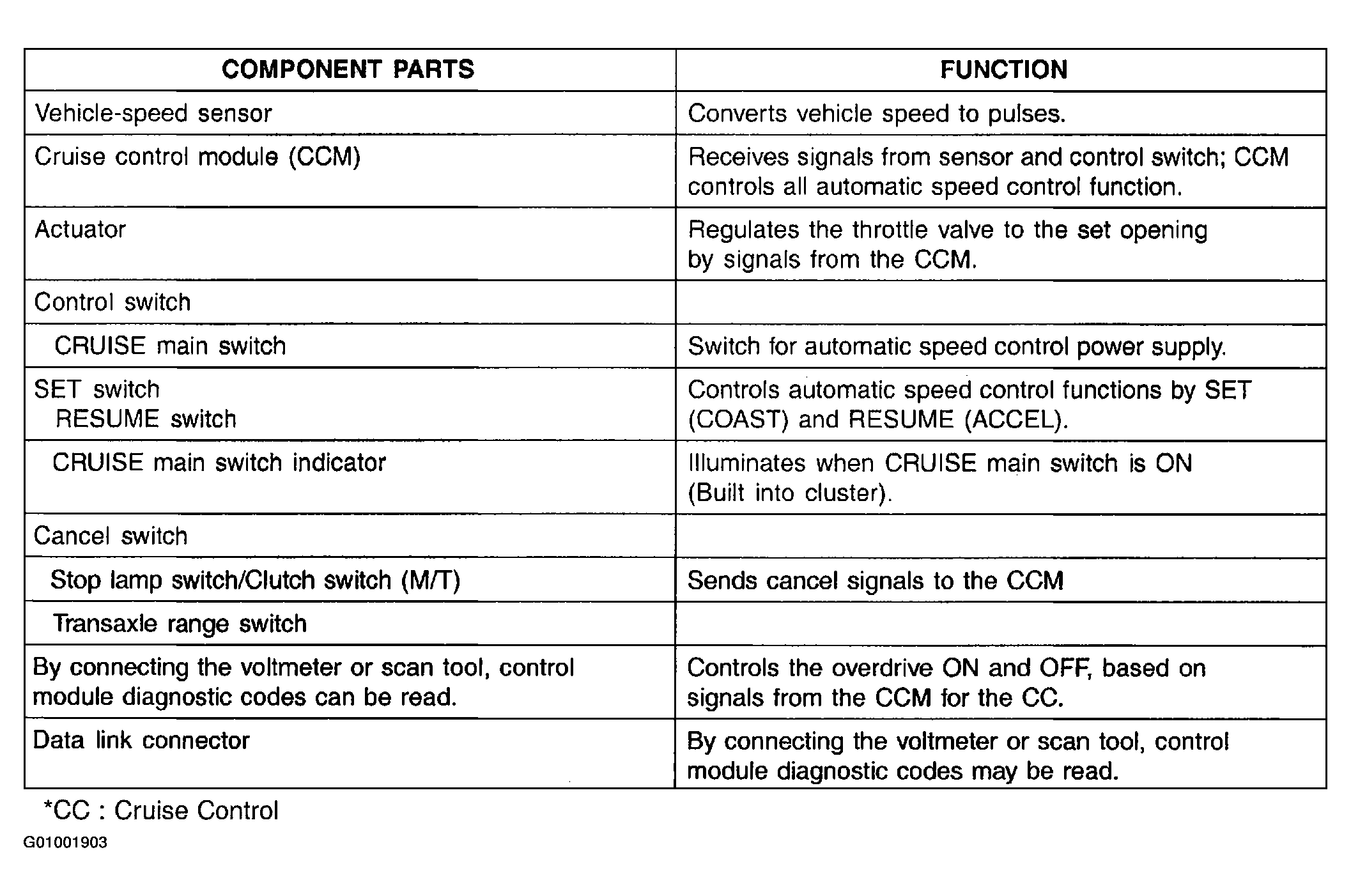

Fig 1: Component Parts & Function Table
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
