Ignition Switch: Troubleshooting

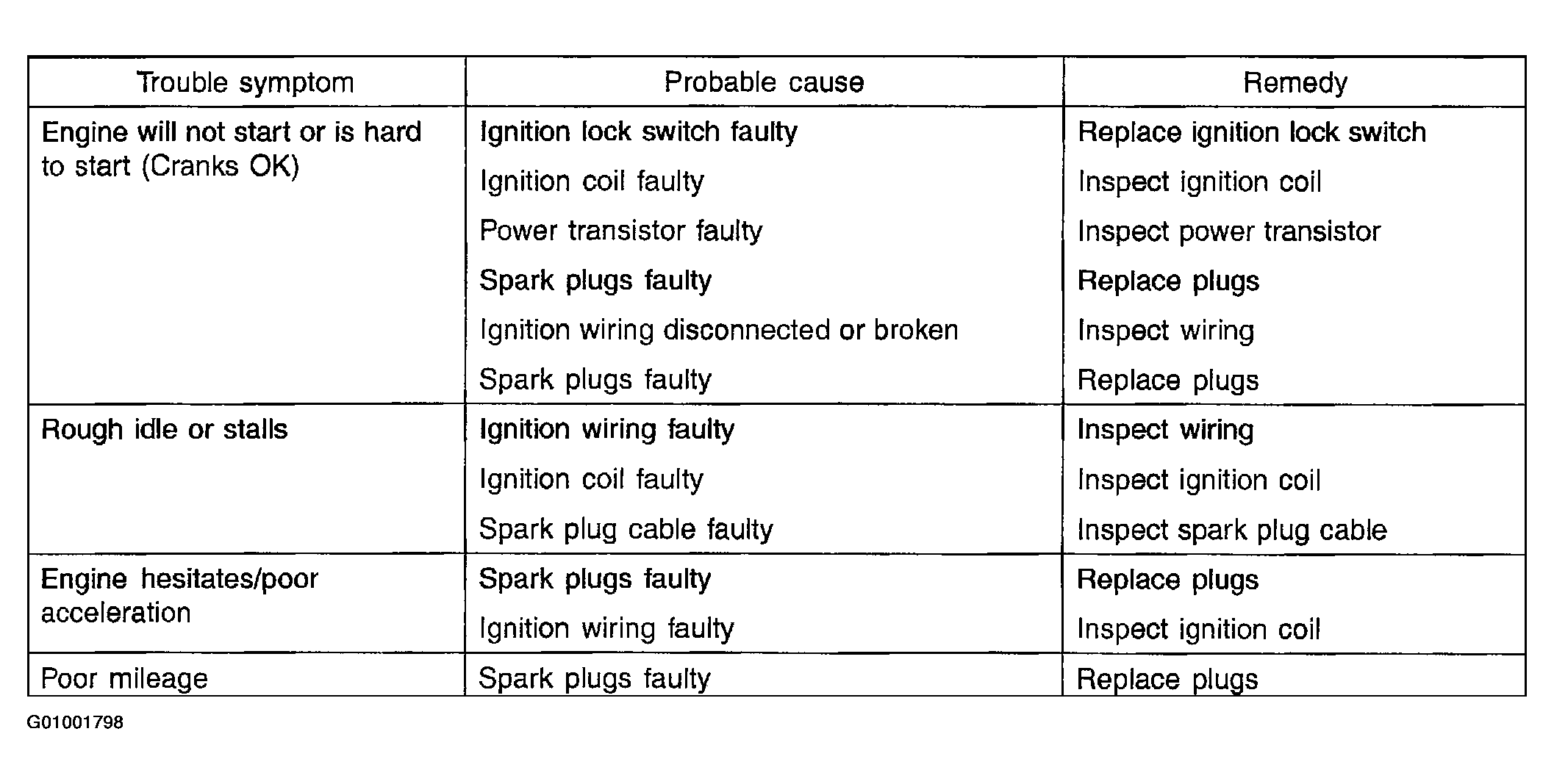

Fig 1: Troubleshooting Symptom Chart
G01001798Courtesy of HYUNDAI MOTOR CO.
