MULTIFUNCTION Switch: Components: Notes

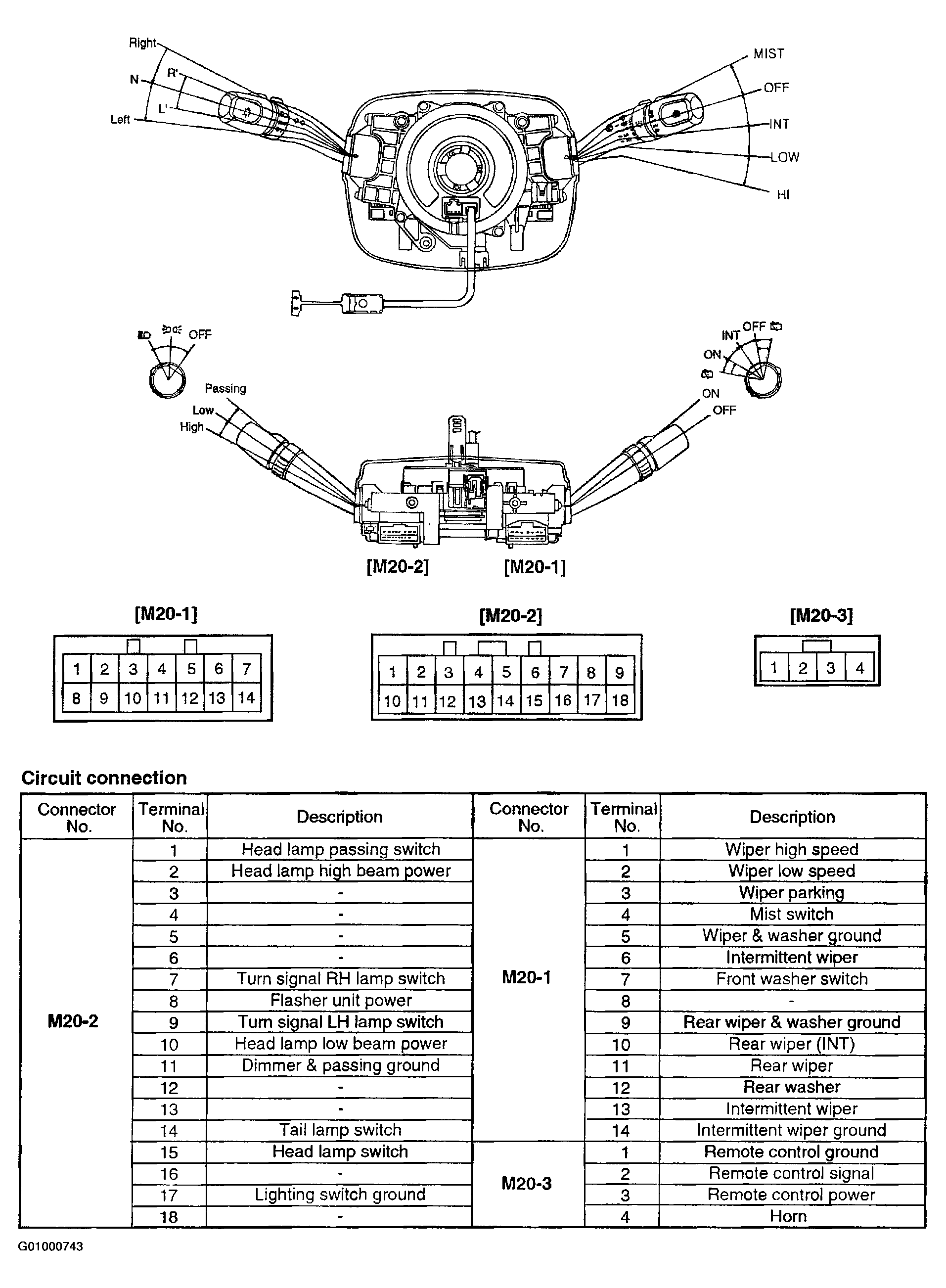

Fig 1: Multifunction Switch Components
G01000743Courtesy of HYUNDAI MOTOR CO.
