Main Moving System: Camshaft: Components

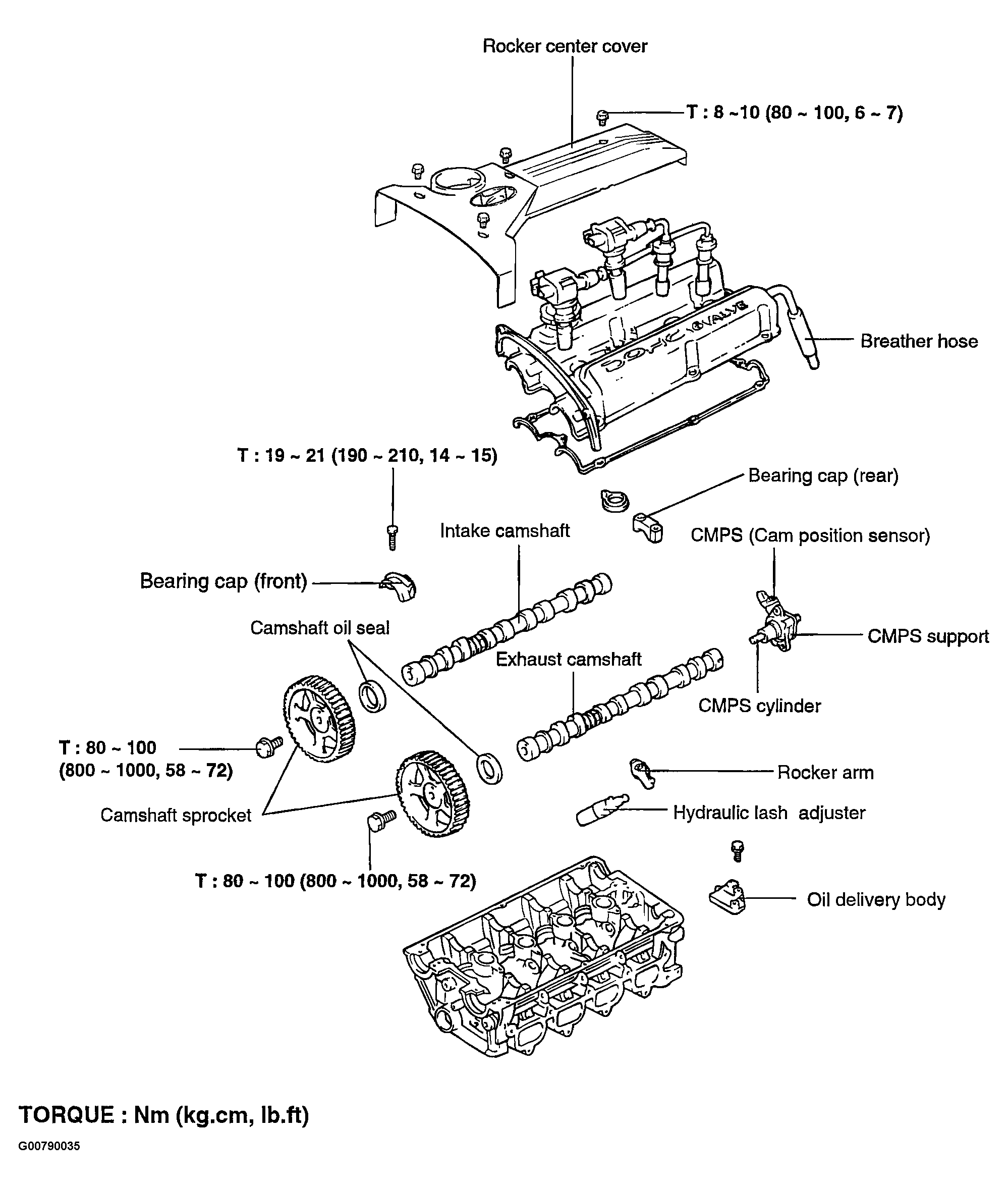

Fig 1: Camshaft Components
G00790035Courtesy of HYUNDAI MOTOR CO.
