Automatic Transaxle Hydraulic Circuit: Second

WARNING: This page is about a different variant/trim than selected.

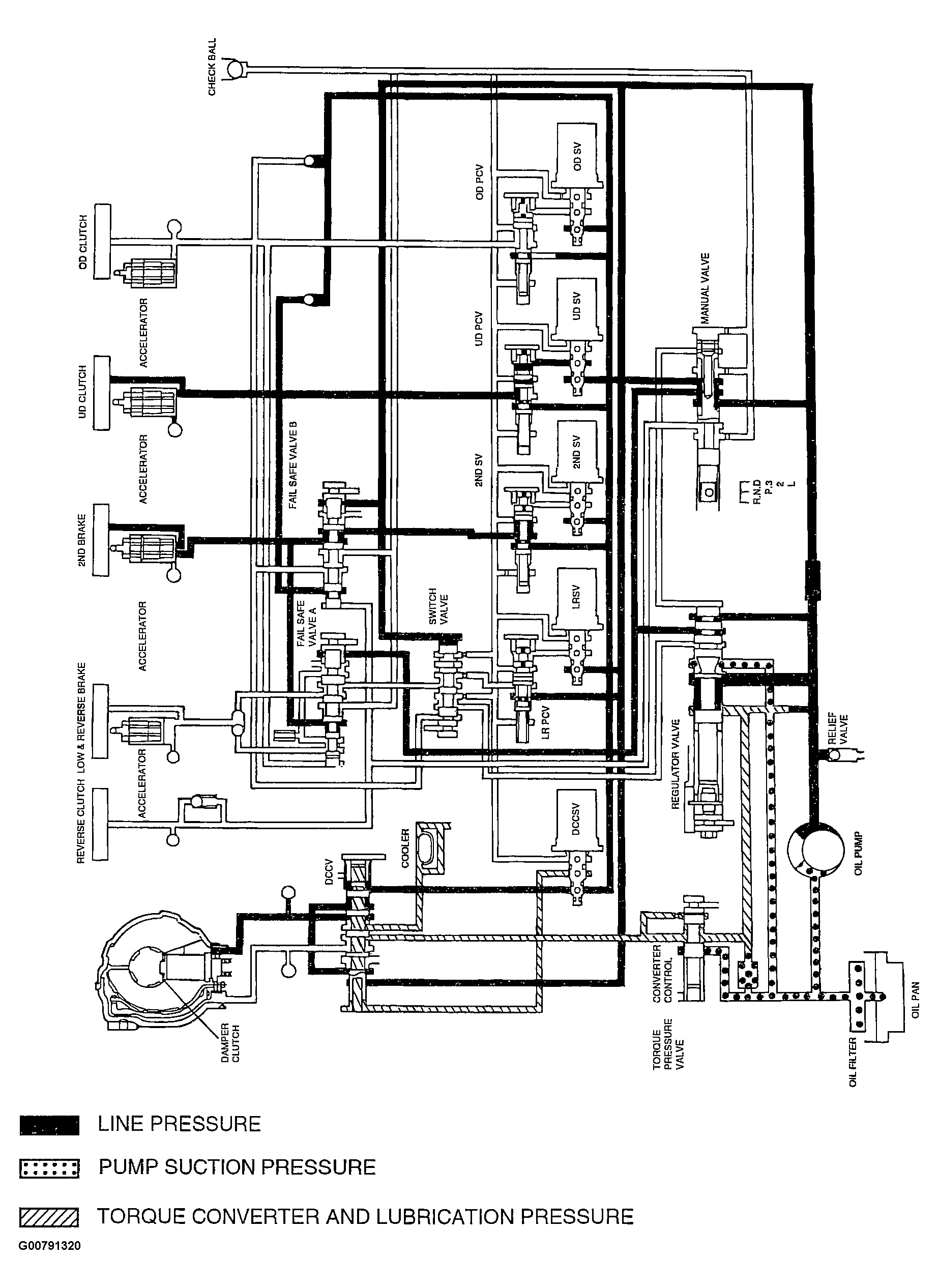

Fig 1: Second Gear Hydraulic Circuit
G00791320Courtesy of HYUNDAI MOTOR CO.
