Inspection Procedure 10

WARNING: This page is about a different variant/trim than selected.

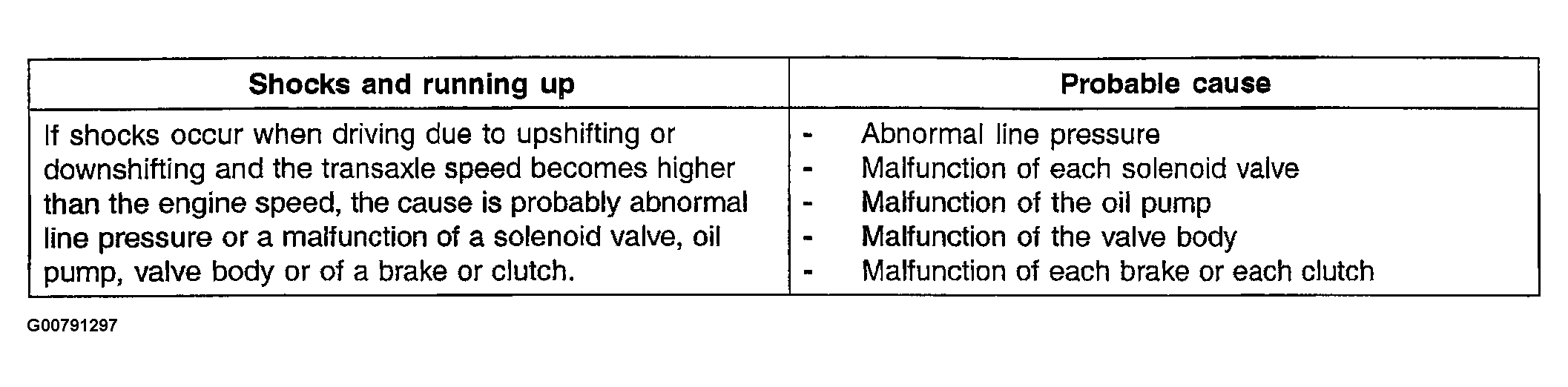

Fig 1: Inspection Procedure 10 Definitions & Probable Causes
G00791297Courtesy of HYUNDAI MOTOR CO.

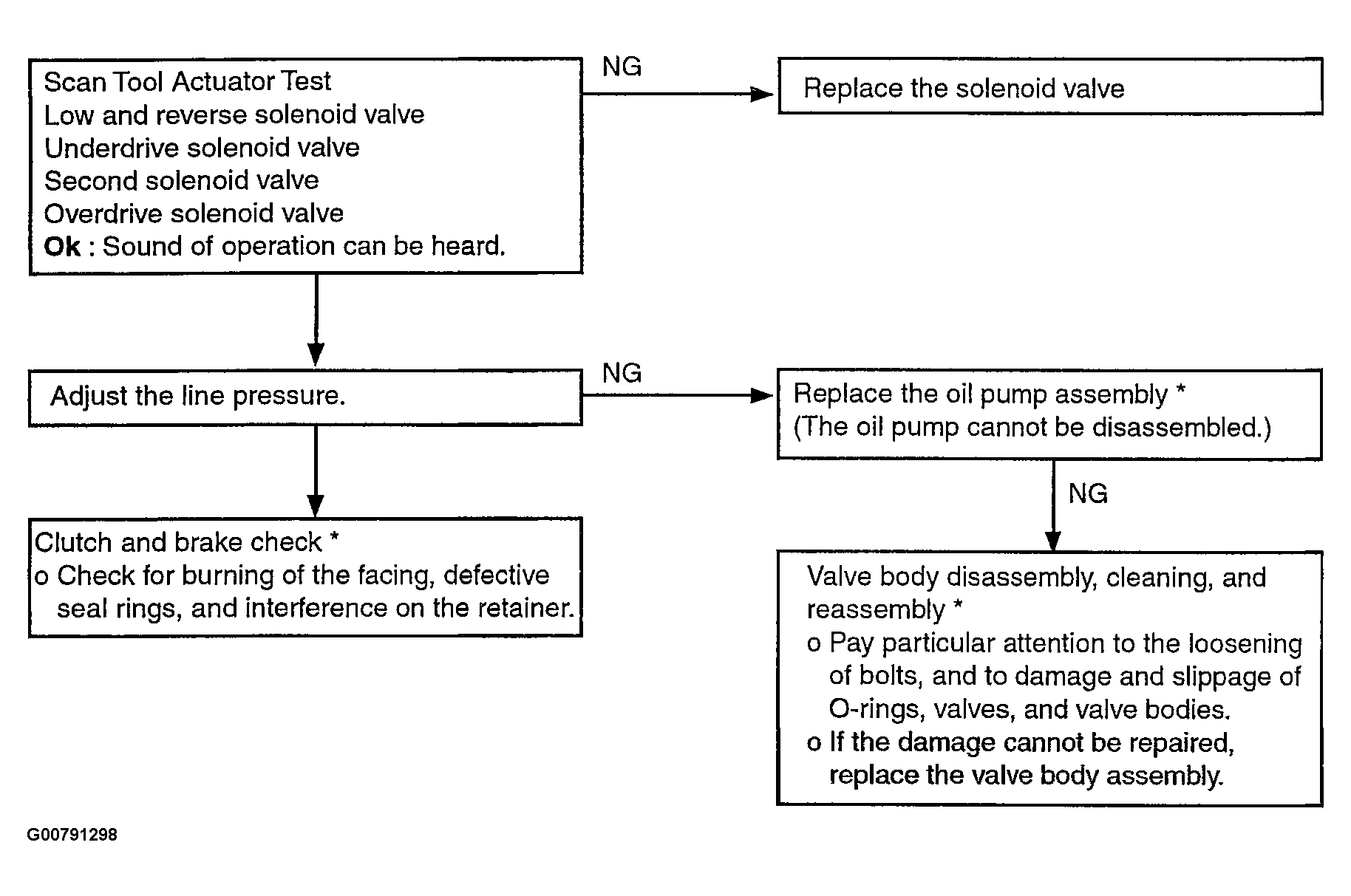

Fig 2: Inspection Procedure 10 Diagnostic Flow Chart
G00791298Courtesy of HYUNDAI MOTOR CO.
