Section 4 (Automatic Transaxle System)
›
Automatic Transaxle System
›
Inspection Process For Trouble Symptoms
›
Inspection Procedure 15
Inspection Procedure 15
WARNING:
This page is about a different variant/trim than selected.

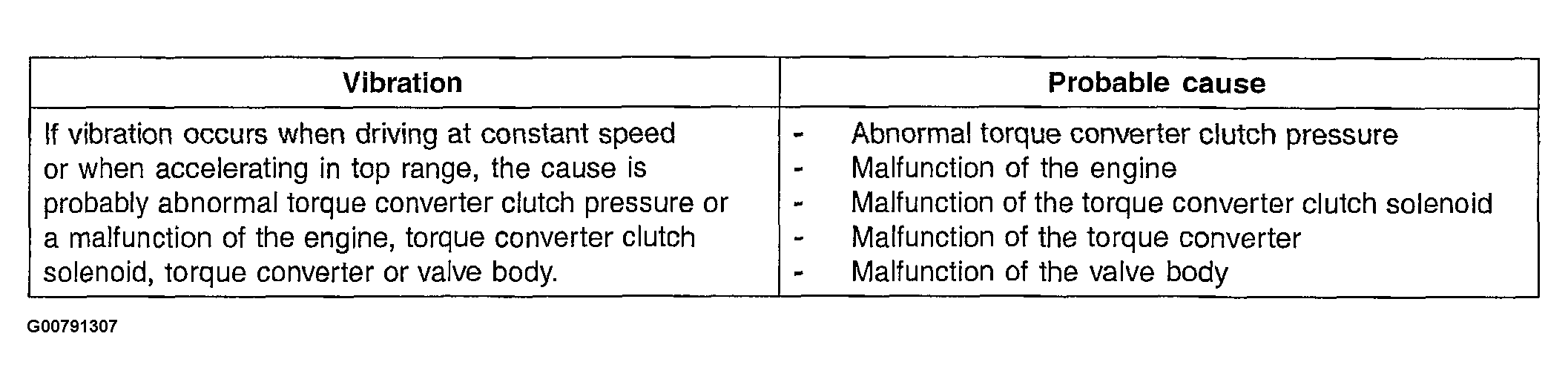

Fig 1: Inspection Procedure 15 Definitions & Probable Causes
Courtesy of HYUNDAI MOTOR CO.

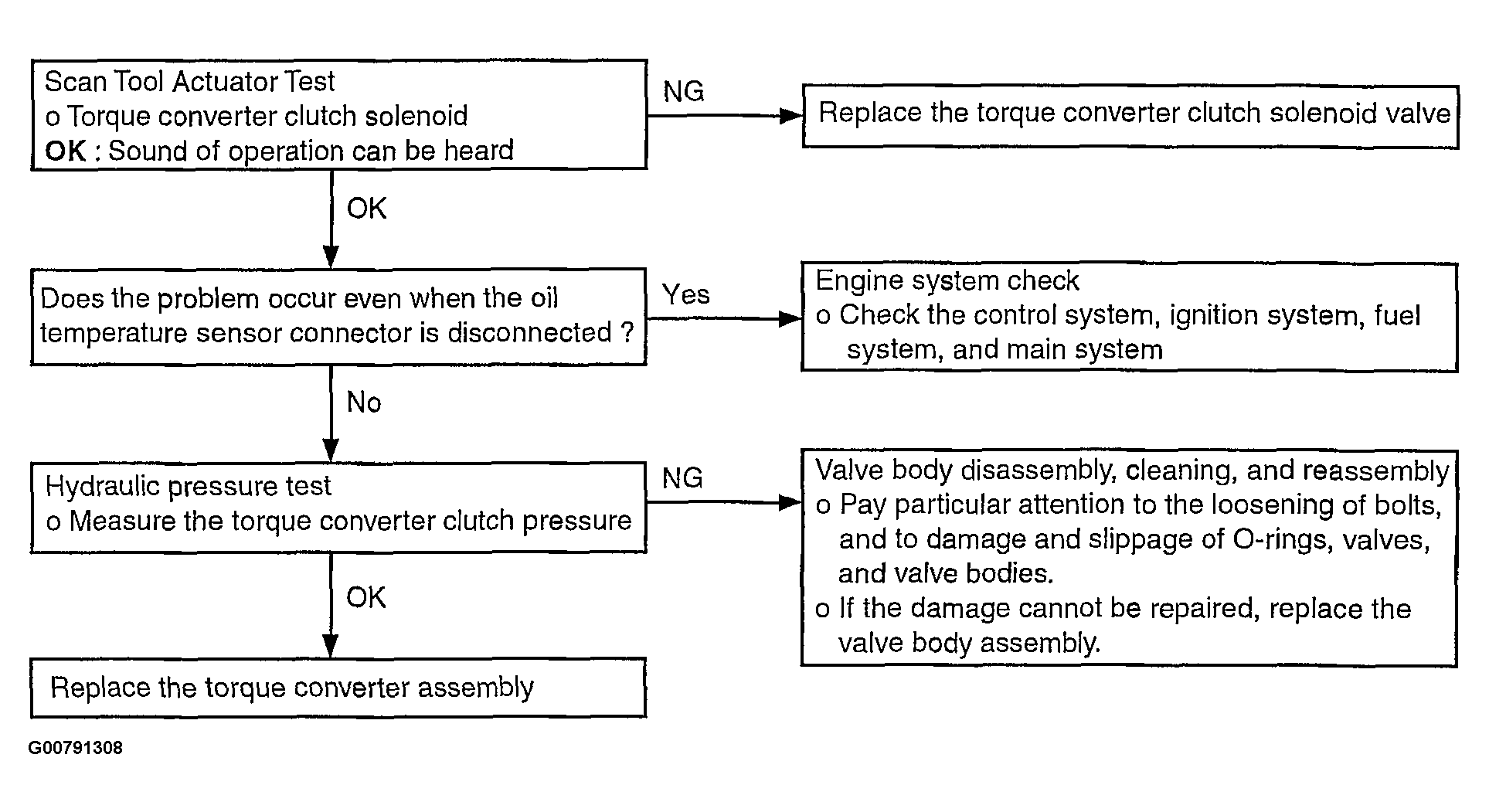

Fig 2: Inspection Procedure 15 Diagnostic Flow Chart
Courtesy of HYUNDAI MOTOR CO.
