Troubleshooting (A/T): Notes

WARNING: This page is about a different variant/trim than selected.

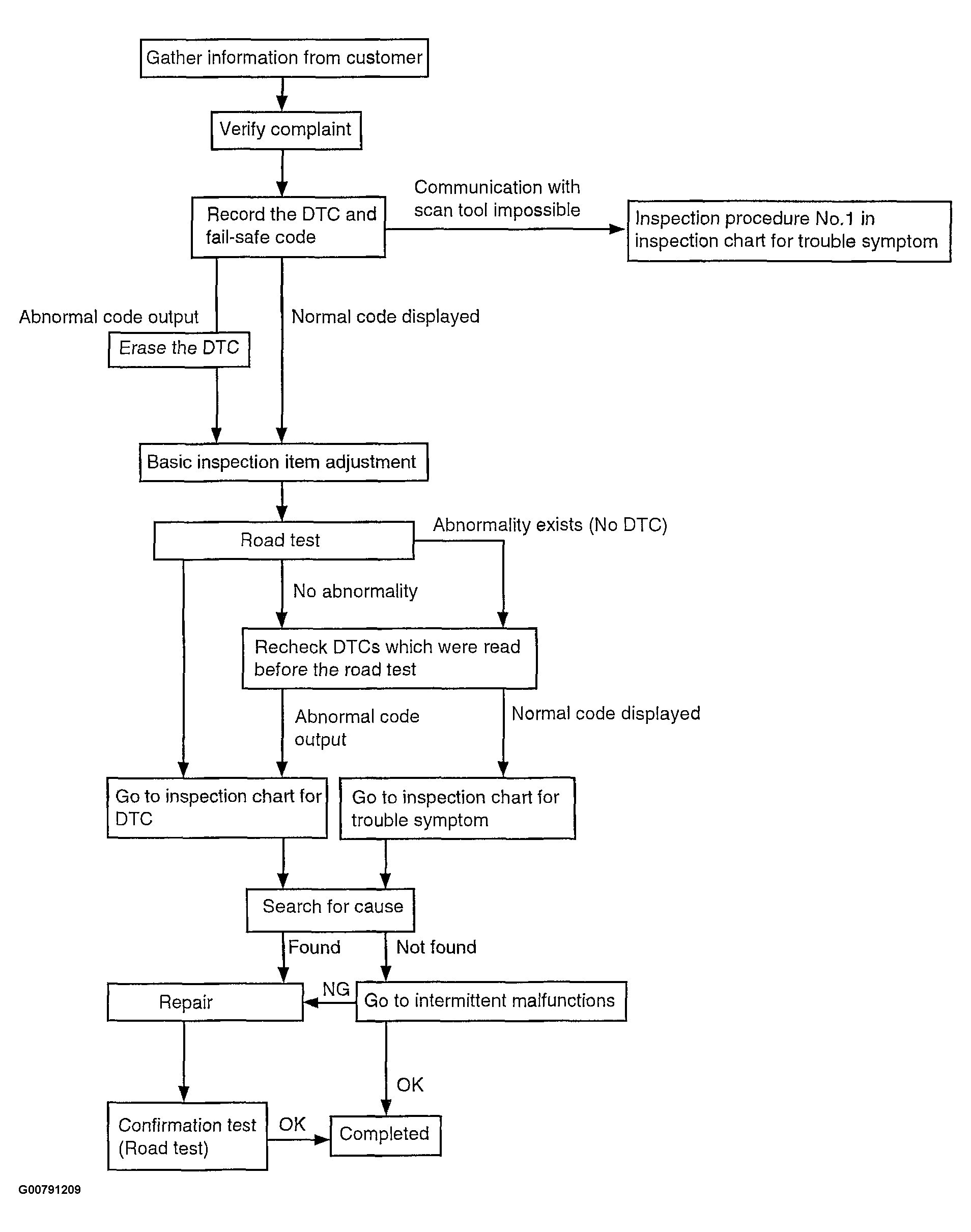

Fig 1: Troubleshooting (A/T) Flow Chart
G00791209Courtesy of HYUNDAI MOTOR CO.
