Mechanical Power Steering System: General: Troubleshooting

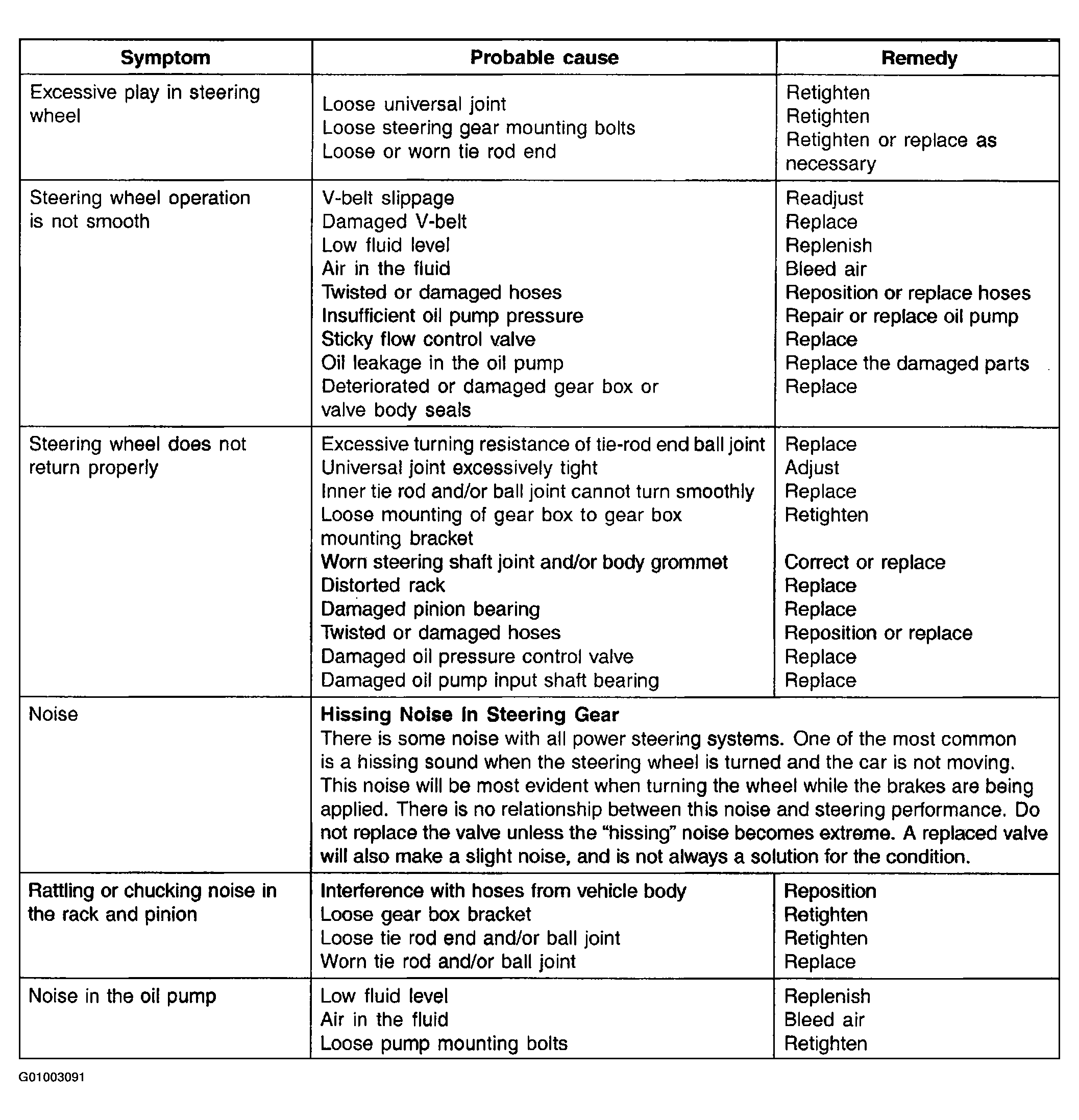

Fig 1: Troubleshooting Symptom Chart

Courtesy of HYUNDAI MOTOR CO.

NOTE: A slight "grinding noise" may be heard immediately after the engine is started in extremely cold weather conditions (below -20°C). This is due to power steering fluid characteristics in extreme cold conditions and is not an indication of a malfunction.
