Front Lower Arm: Components

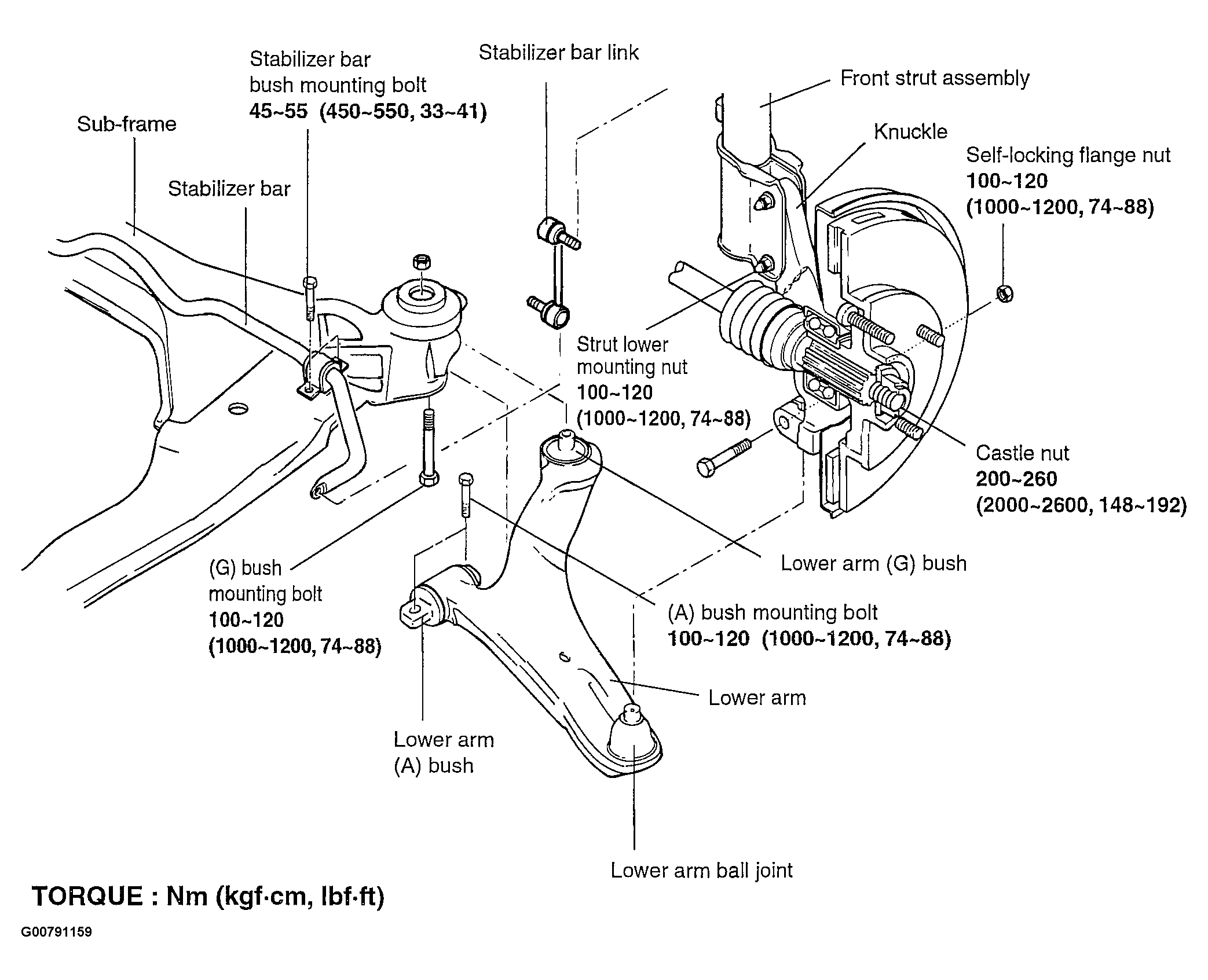

Fig 1: Front Lower Arm Components
G00791159Courtesy of HYUNDAI MOTOR CO.
