Wheel Alignment Specifications & Adjustment Procedures
›
General
›
Specification
›
Service Standard
Service Standard

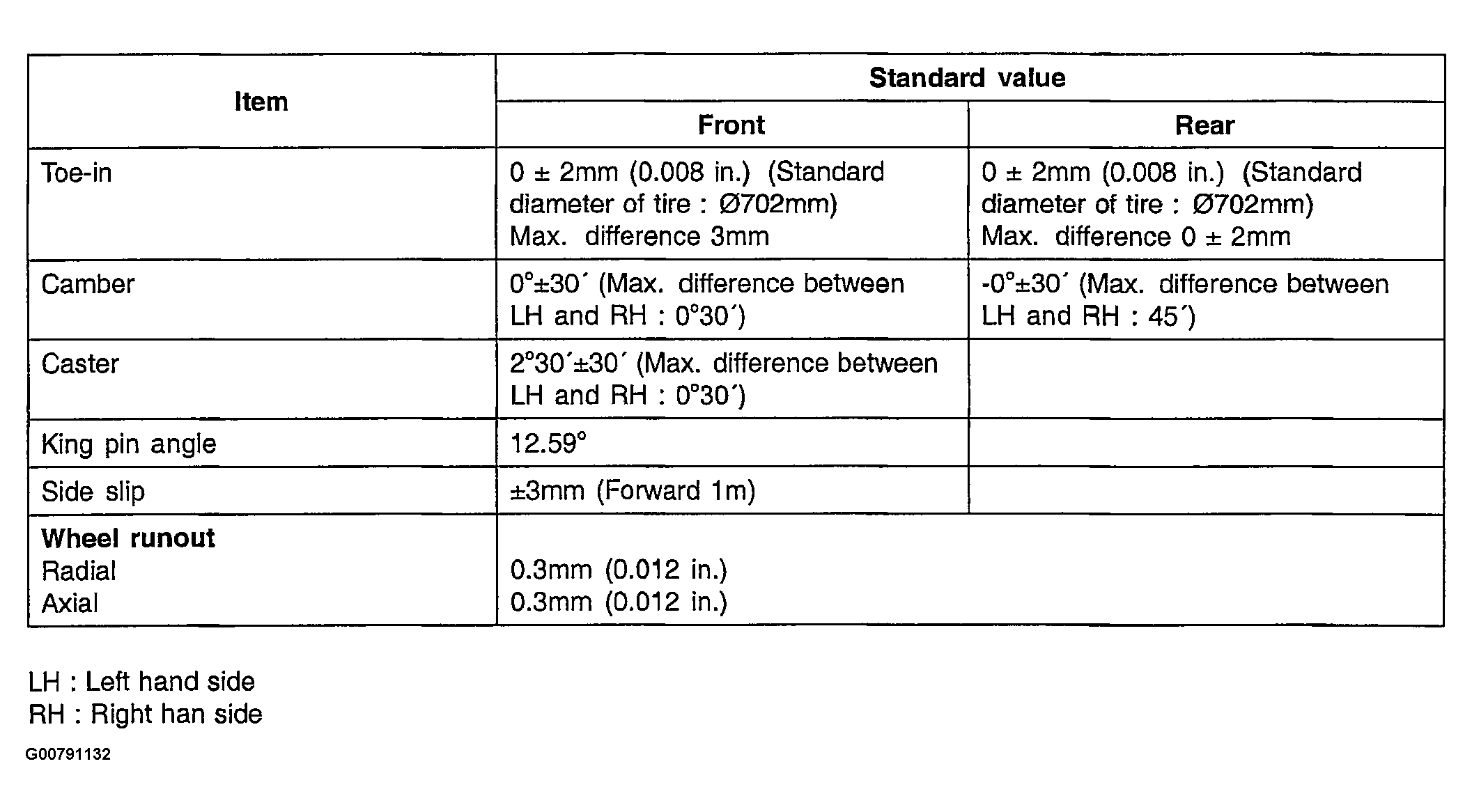

Fig 1: Service Standard Table
Courtesy of HYUNDAI MOTOR CO.
LH : Left hand side
RH : Right han side
Courtesy of HYUNDAI MOTOR CO.
