Harness Inspection Procedures

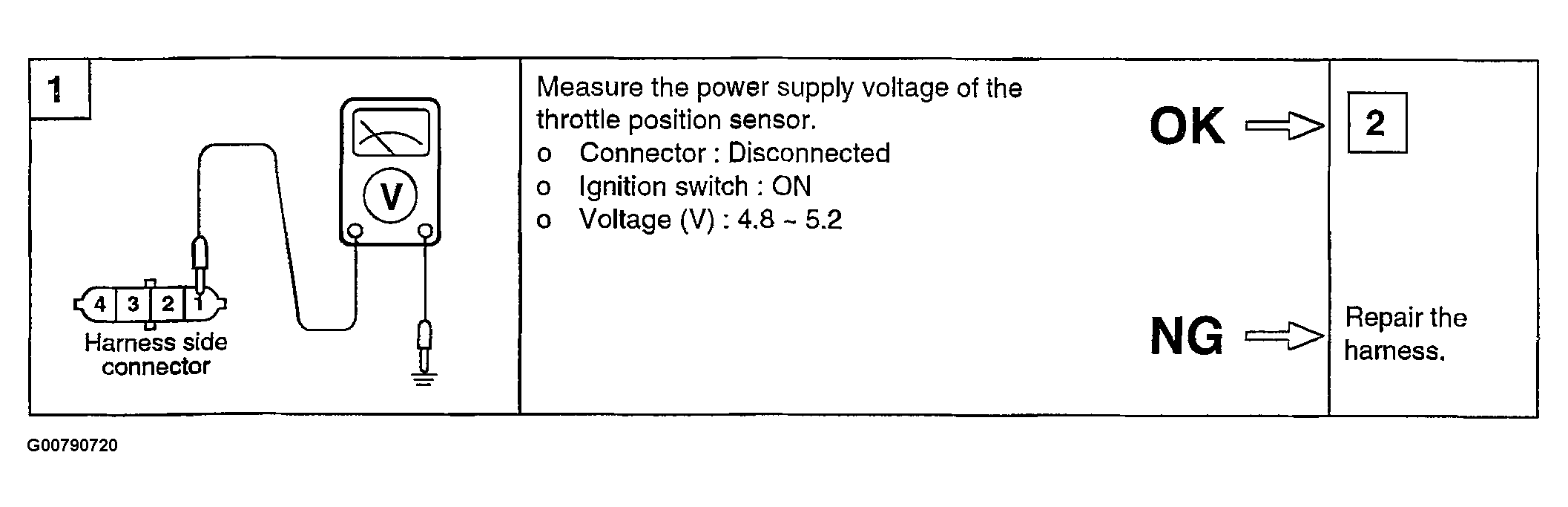

Fig 1: Harness Inspection Procedure (1 Of 4)
G00790720Courtesy of HYUNDAI MOTOR CO.

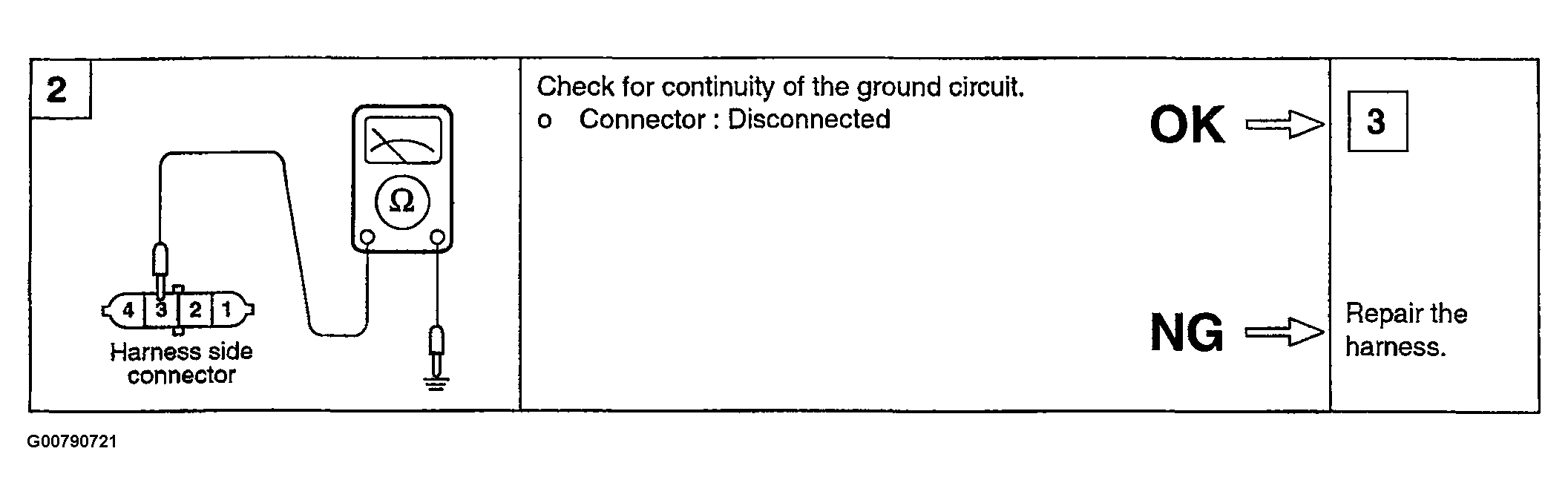

Fig 2: Harness Inspection Procedure (2 Of 4)
G00790721Courtesy of HYUNDAI MOTOR CO.

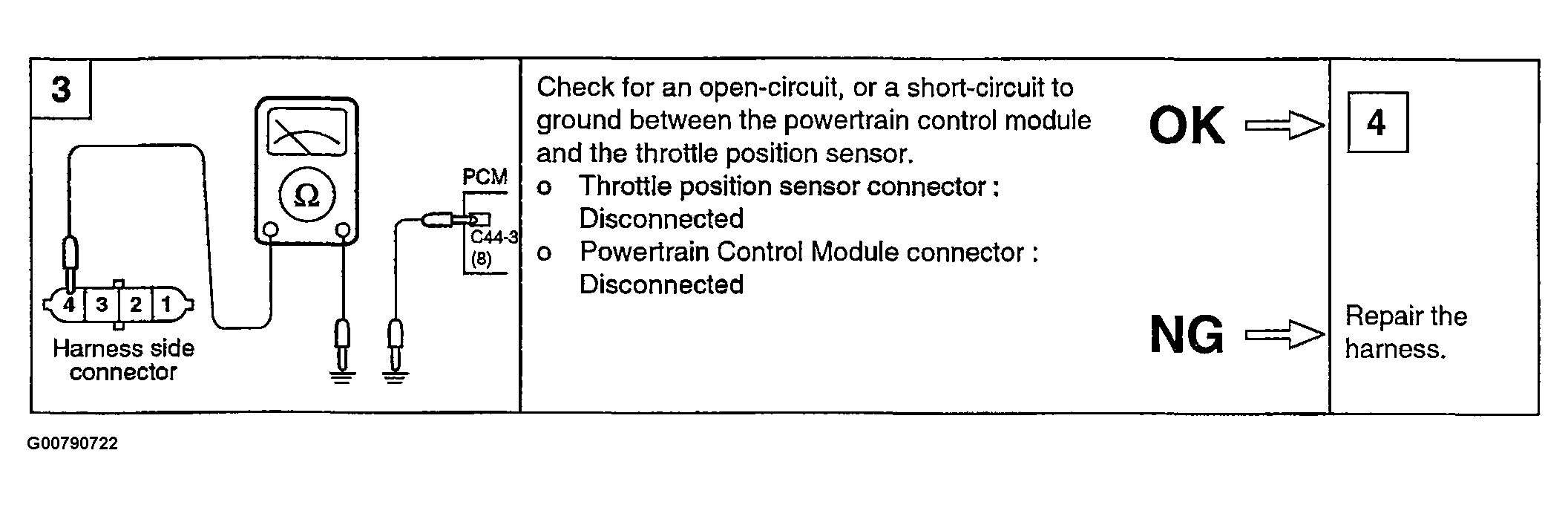

Fig 3: Harness Inspection Procedure (3 Of 4)
G00790722Courtesy of HYUNDAI MOTOR CO.

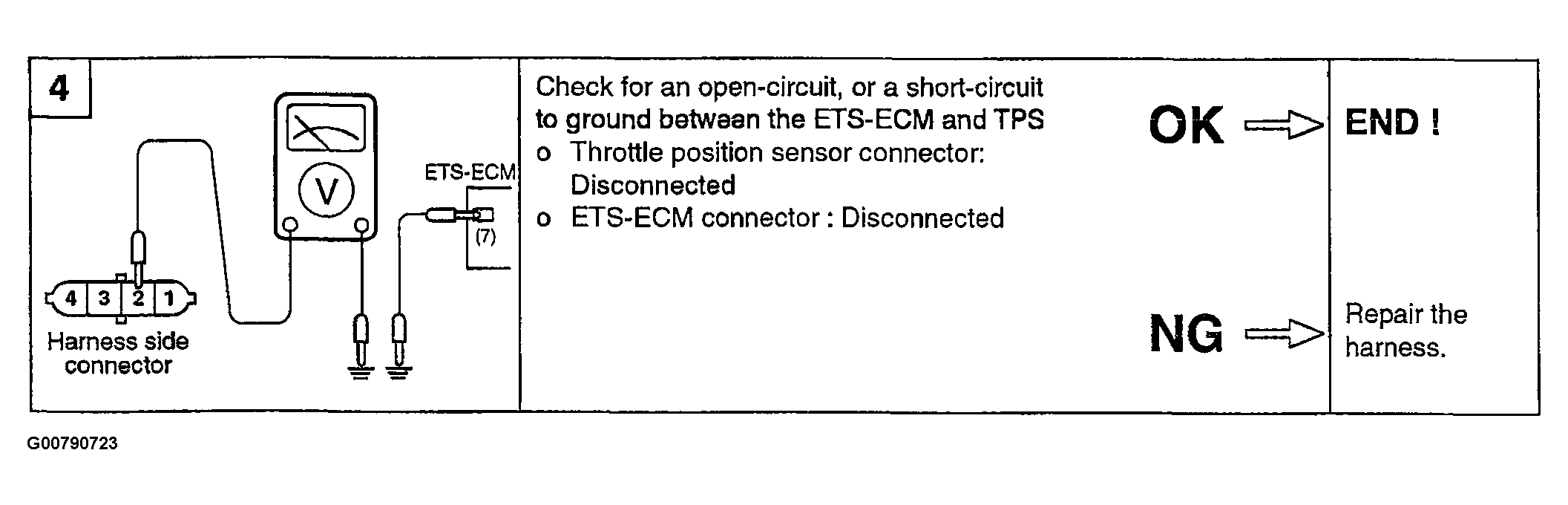

Fig 4: Harness Inspection Procedure (4 Of 4)
G00790723Courtesy of HYUNDAI MOTOR CO.
