FixVault
Home
›
Hyundai
›
2003
›
Santa Fe GLS, 3.5 E, AWD
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Emission Control System (3.5L)
›
Evaporative Emission Control System
›
Components
Evaporative Emission Control System: Components

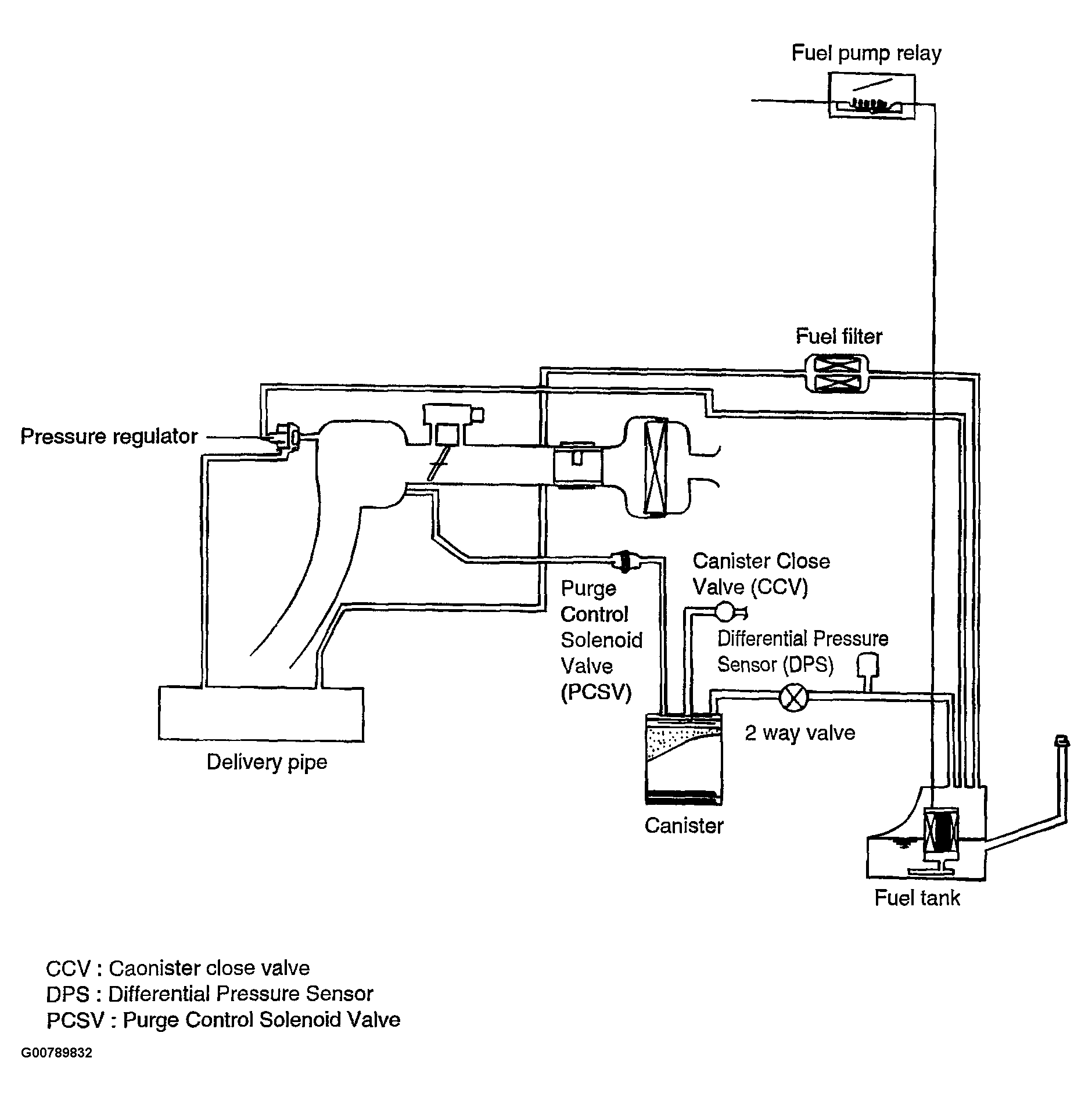

Fig 1: Identifying Evaporative Emission Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
