Immobilizer Control Module Connector End View

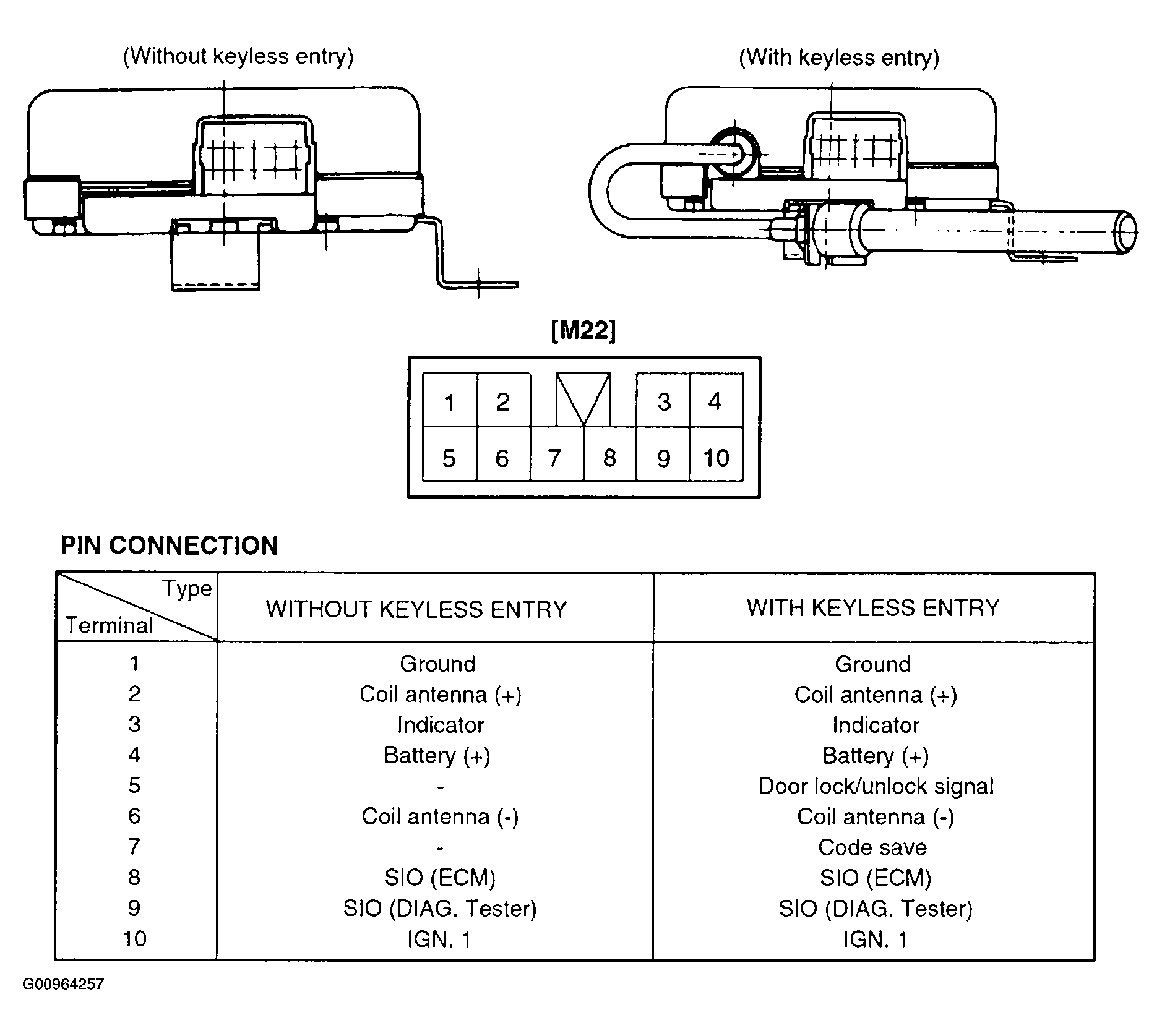

Fig 1: Immobilizer Control Module Connector End View
G00964257Courtesy of HYUNDAI MOTOR AMERICA
