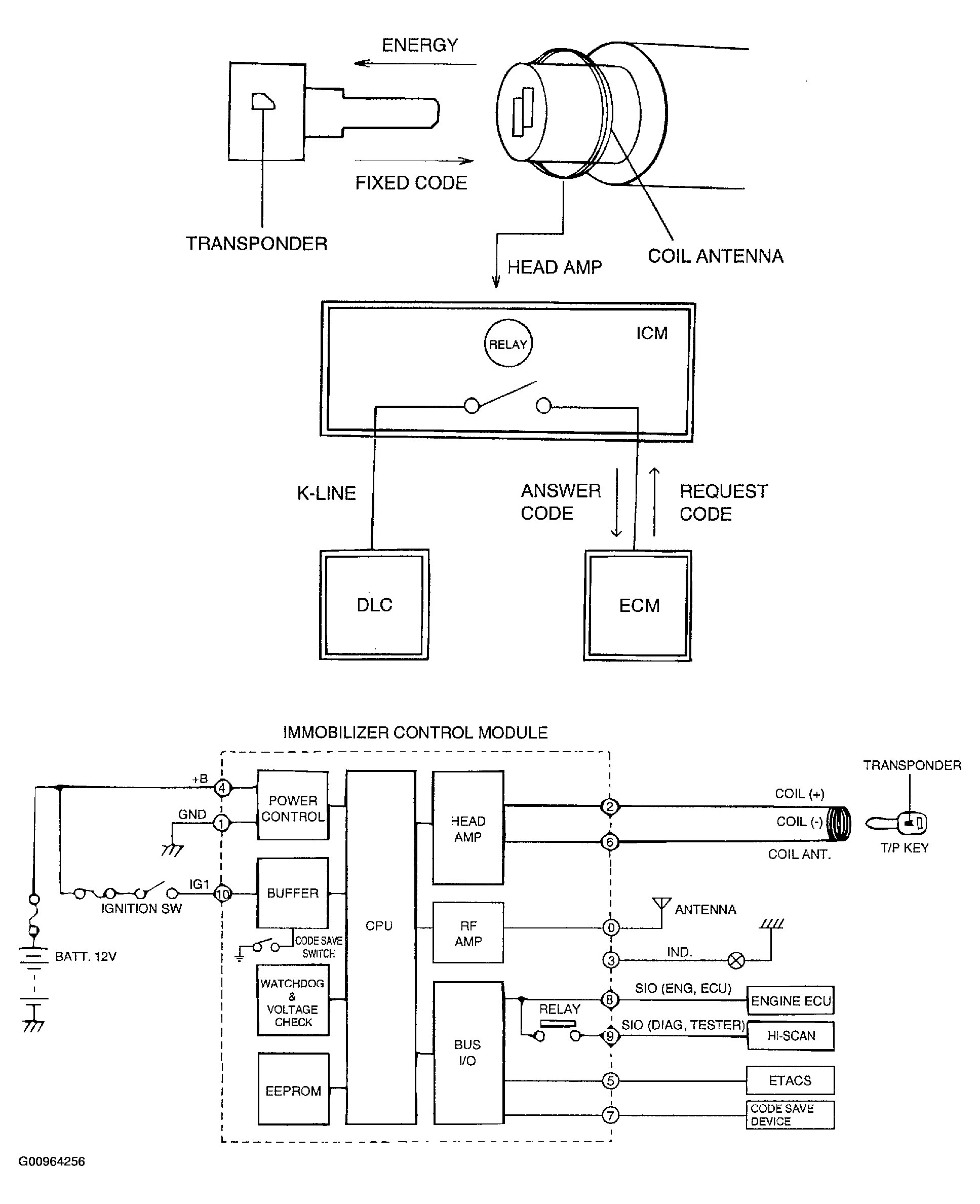

Home › Hyundai › 2003 › Sonata GLS, Standard › Repair and Diagnosis › Body & Frame › Door Locks › Immobilizer Control System › Immobilizer Control System › Immobilizer Control Module › System Block Diagram
