Power Window Switch: Inspection: Notes

  1. Remove the switch from the door trim panel.
  2. Check for continuity between the terminals. If continuity is not as specified in the table, replace the power window switch.
    Fig 1: Identifying Power Window Main Switch Connector Terminals
    G00964174Courtesy of HYUNDAI MOTOR CO.

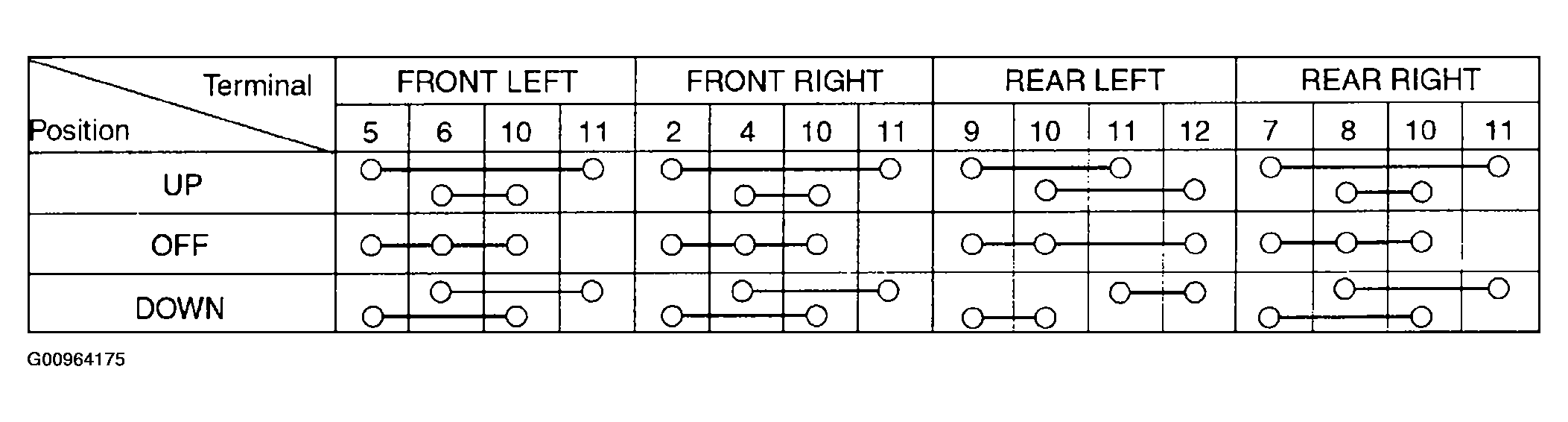

    Fig 2: Power Window Main Switch Continuity Table
    G00964175Courtesy of HYUNDAI MOTOR CO.
