Automatic Transaxle Hydraulic Circuit: First

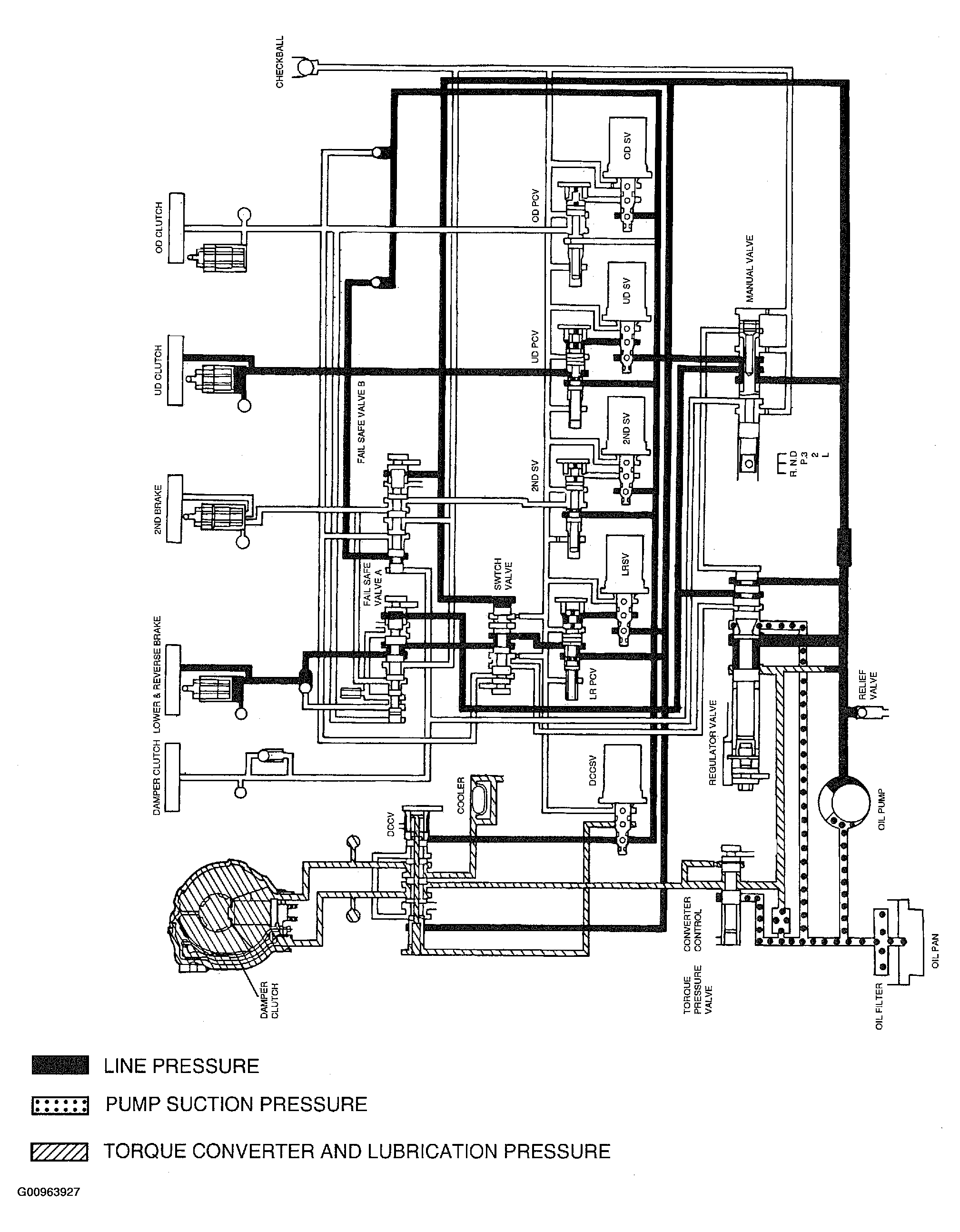

Fig 1: Identifying Hydraulic Circuit In First Gear
G00963927Courtesy of HYUNDAI MOTOR CO.
