Automatic Transaxle: Components

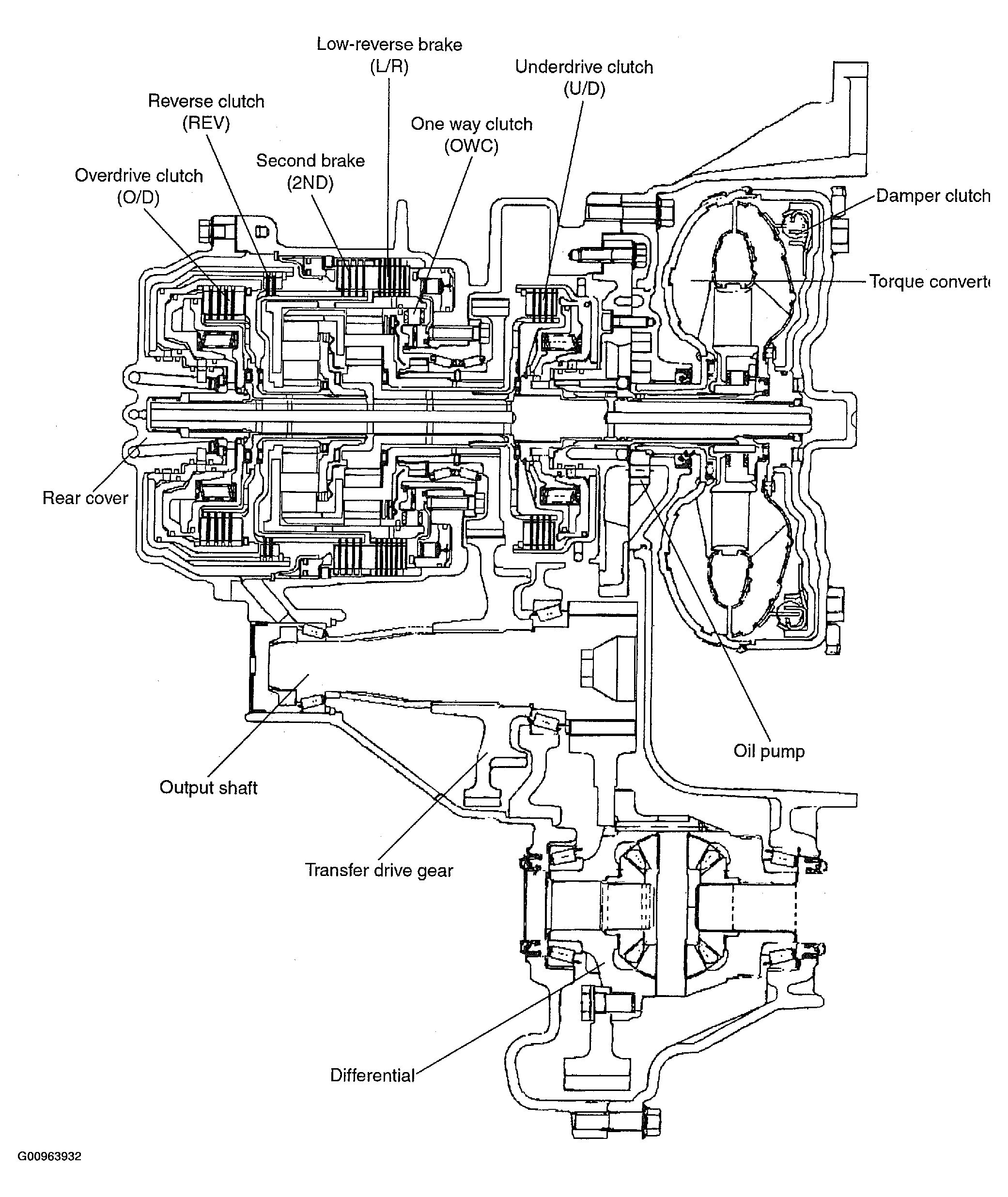

Fig 1: Automatic Transaxle Components
G00963932Courtesy of HYUNDAI MOTOR CO.
