Transaxle Range Switch Continuity Check

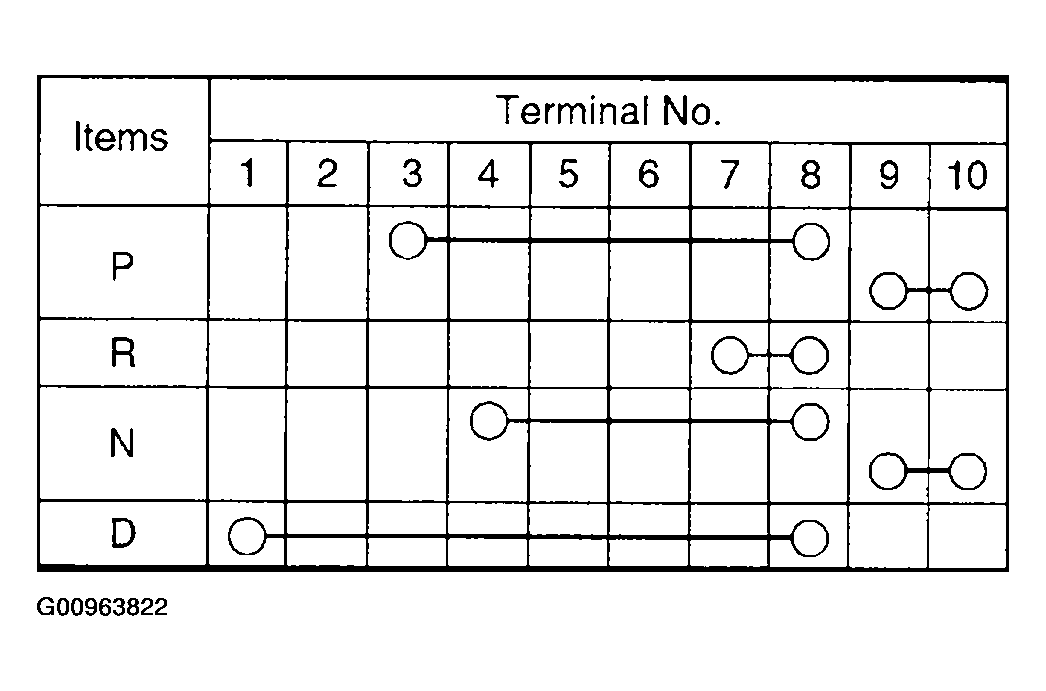

Fig 1: TR Switch Continuity Table

Courtesy of HYUNDAI MOTOR CO.

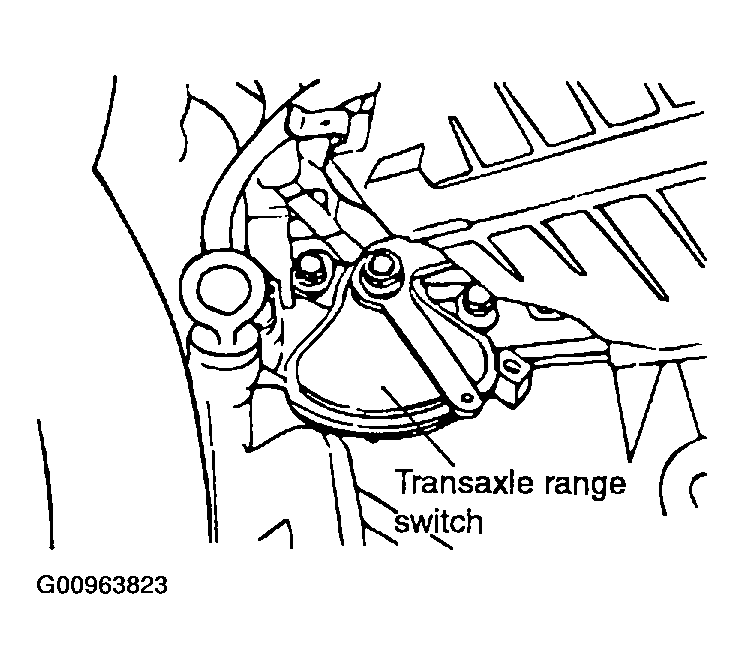

Fig 2: Identifying TR Switch

Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying TR Switch Positions & Connector Terminals

Courtesy of HYUNDAI MOTOR CO.
