ETACS (Electronic Time & Alarm Control System)
›
Body Control Module (BCM)
Body Control Module (BCM)

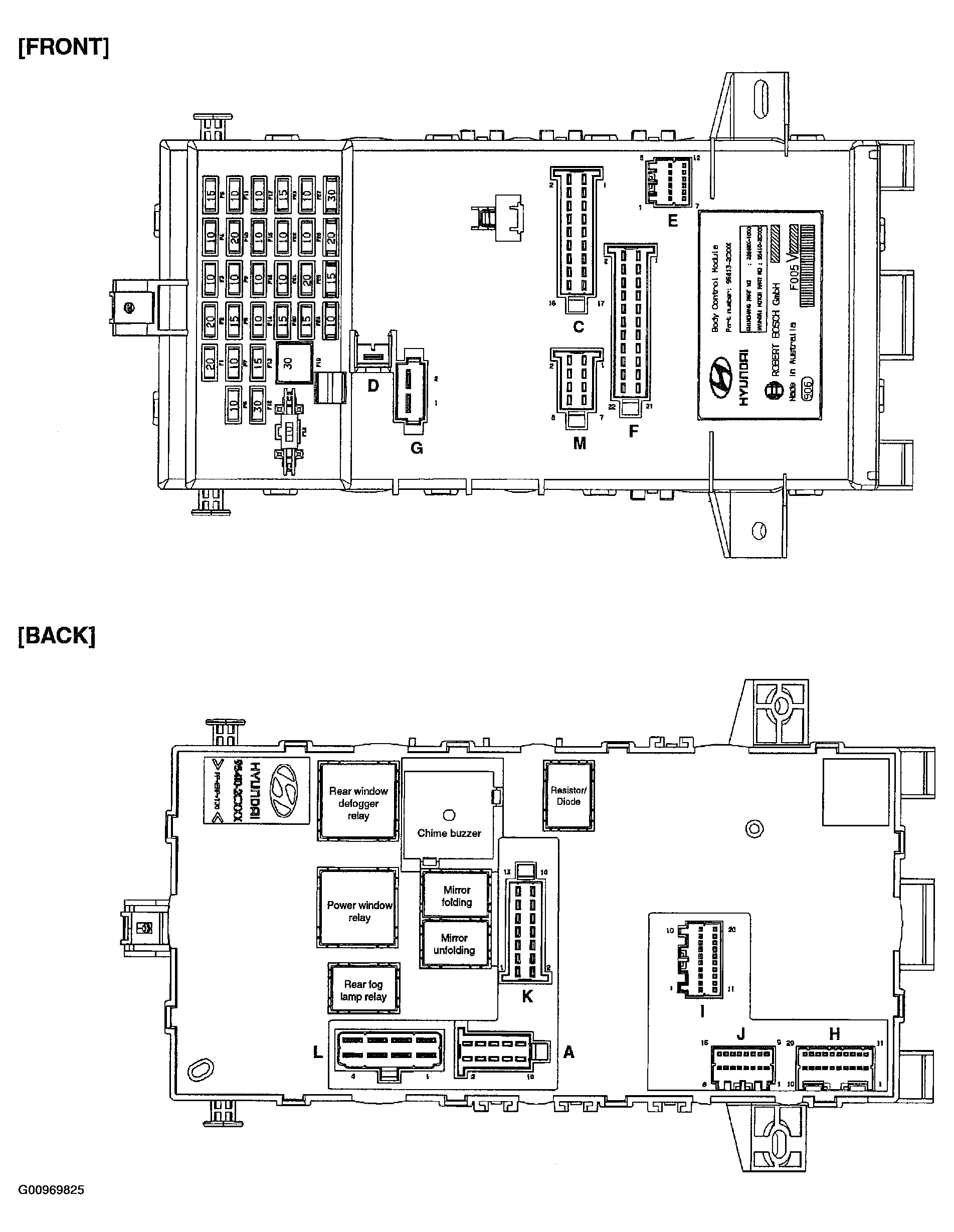

Fig 1: Identifying Front & Back View Of Body Control Module
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
