Component Specification
Component Specification

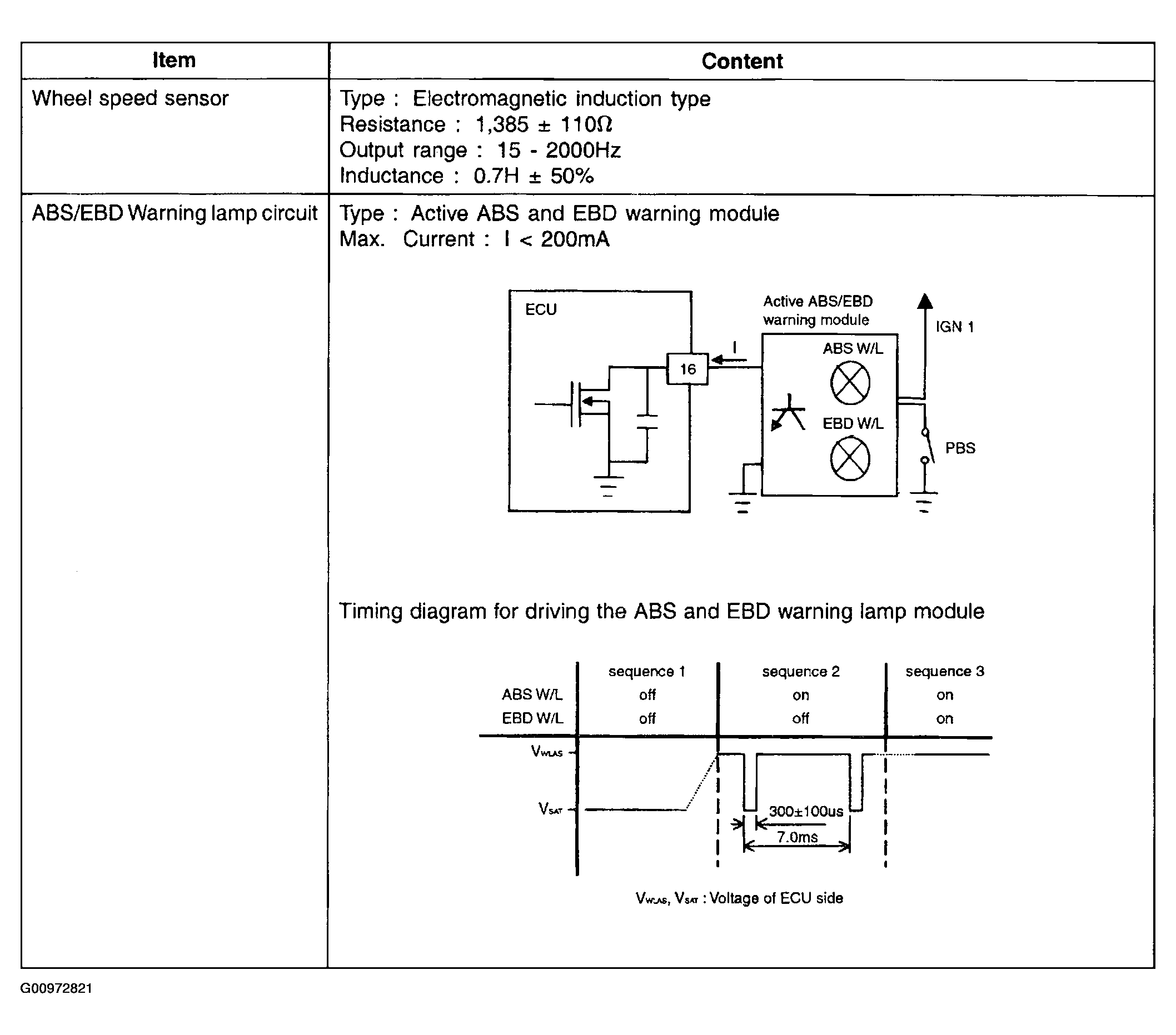

Fig 1: Component Specification Table (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.

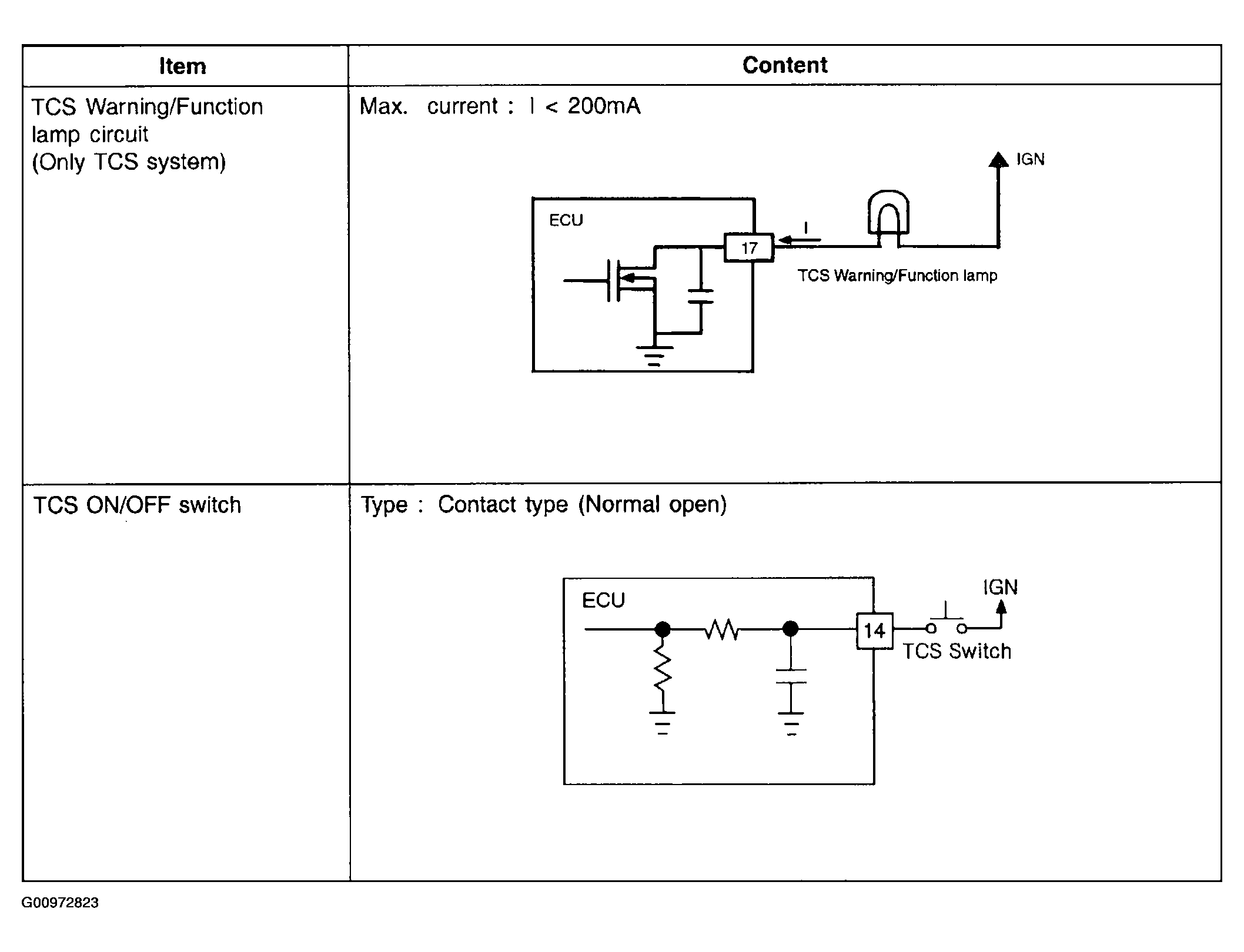

Fig 2: Component Specification Table (2 Of 3)
Courtesy of HYUNDAI MOTOR CO.

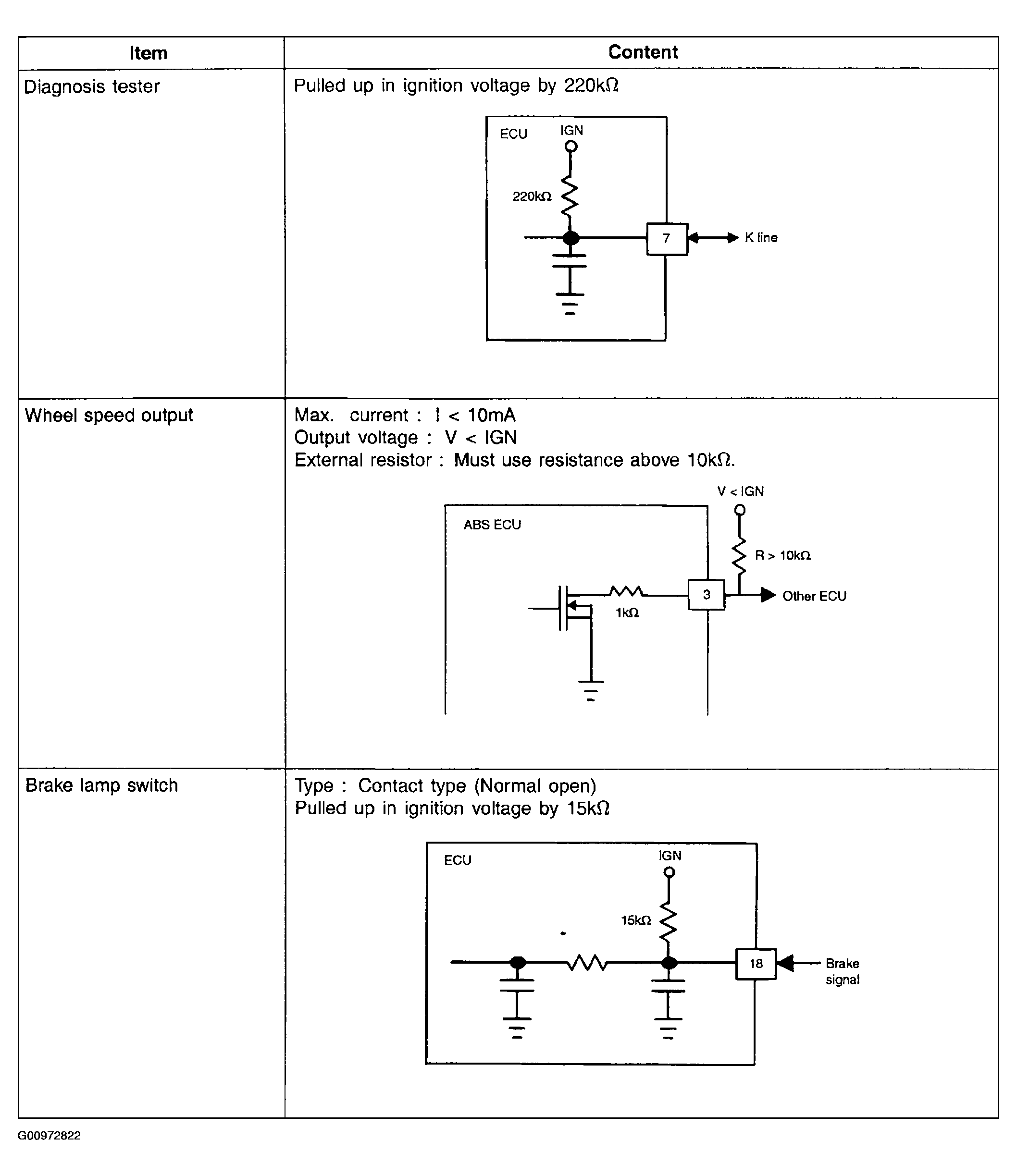

Fig 3: Component Specification Table (3 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
