Inspection At HECU Terminals

Fig 1: Identifying HECU Connector Terminals

Courtesy of HYUNDAI MOTOR CO.

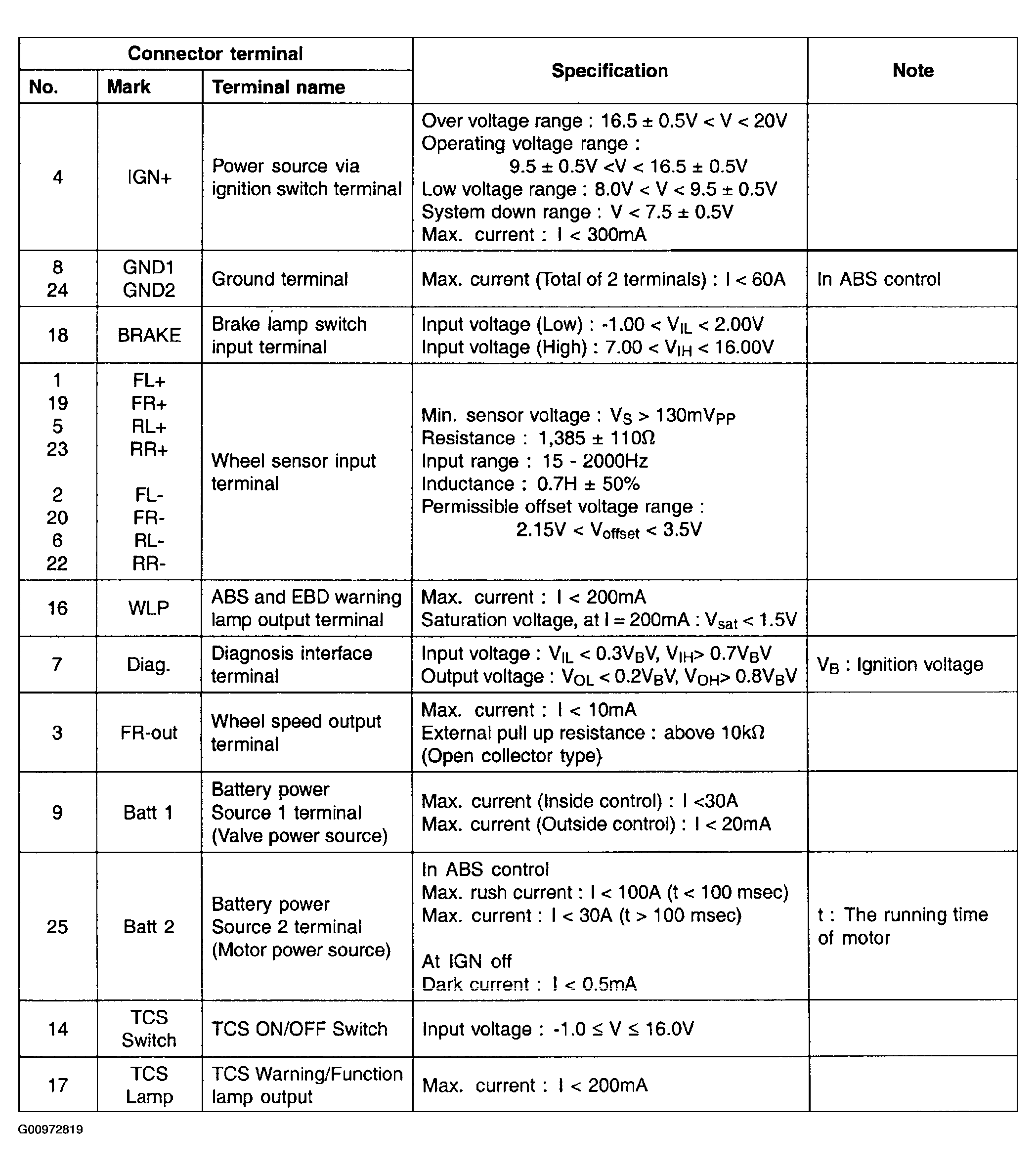

Fig 2: HECU Inspection Table (1 Of 2)

Courtesy of HYUNDAI MOTOR CO.

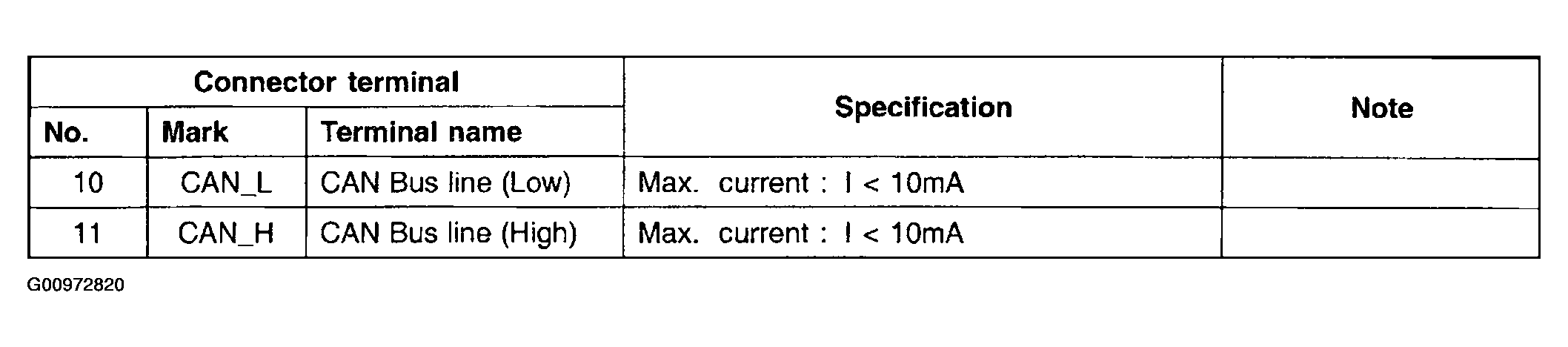

Fig 3: HECU Inspection Table (2 Of 2)

Courtesy of HYUNDAI MOTOR CO.
