Front Wheel Speed Sensor

  1. Remove the front wheel speed sensor mounting bolt.

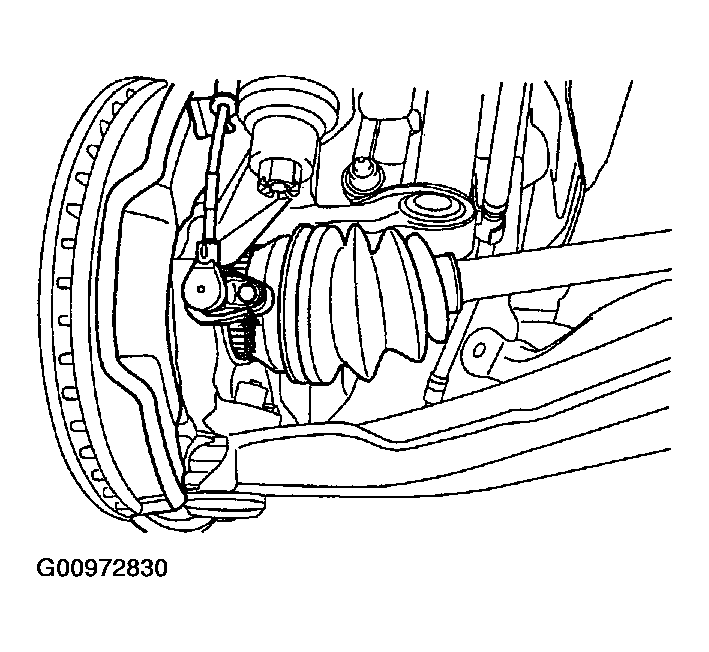

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G00972830Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector.
    Fig 2: Identifying Front Wheel Speed Sensor Connector
    G00972831Courtesy of HYUNDAI MOTOR CO.
