Component Locations

COMPONENT LOCATIONS

Component	Location
Battery	Left Front Of Engine Compartment. See Fig 1.
BATT 100A Fusible Link	In E/R Box, Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 2.
Body Control Module Box (Passenger Compartment Fuse Box)	Behind Left Knee Panel. Fig 3.
E/R Box (Engine Compartment Fuse Box)	Left Side Of Engine Compartment, In Front Of Strut Tower. See Fig 1.
Generator	Left Front Of Engine. Fig 4.
Pre-Excitation Resistor (Resistor/Diode)	Body Control Module Box. See Fig 5.

Fig 1: Locating Battery & E/R Box (Engine Compartment Fuse Box)

Courtesy of FORD MOTOR CO.

Fig 2: Locating BATT 100A Fusible Link (BATT)

Courtesy of HYUNDAI MOTOR CO.

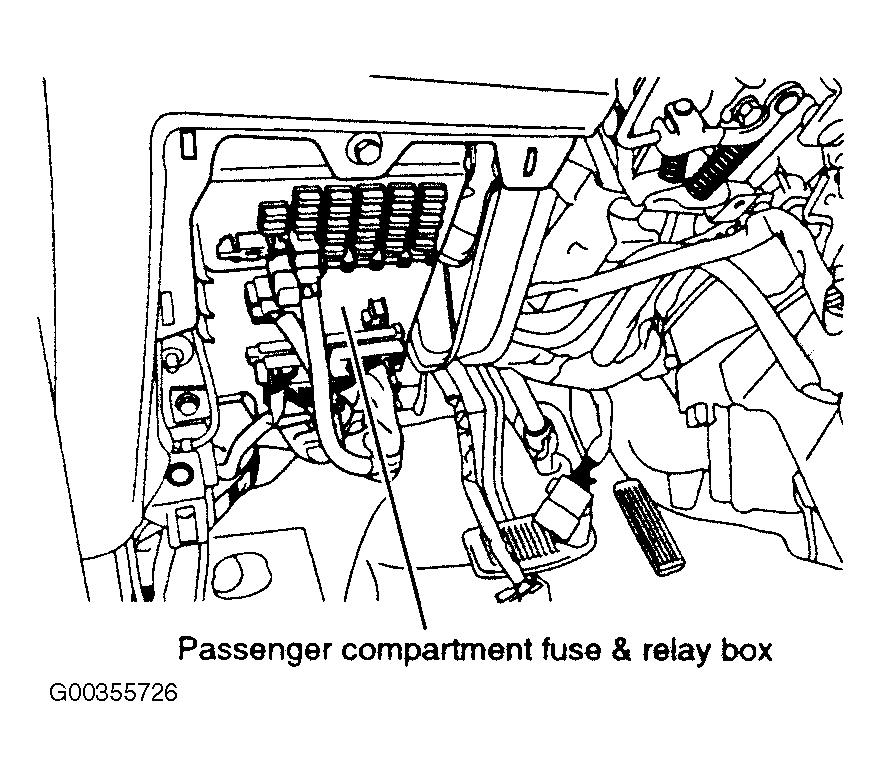

Fig 3: Locating Body Control Module Box (Passenger Compartment Fuse Box)

Courtesy of HYUNDAI MOTOR CO.

Fig 4: Locating Generator

Courtesy of HYUNDAI MOTOR CO.

Fig 5: Locating Pre-Excitation Resistor (Resistor/Diode)

Courtesy of HYUNDAI MOTOR CO.
