Starter Relay

Remove the starter relay and check continuity between the terminals. See Fig 1 . If the continuity is not as specified, replace the relay.

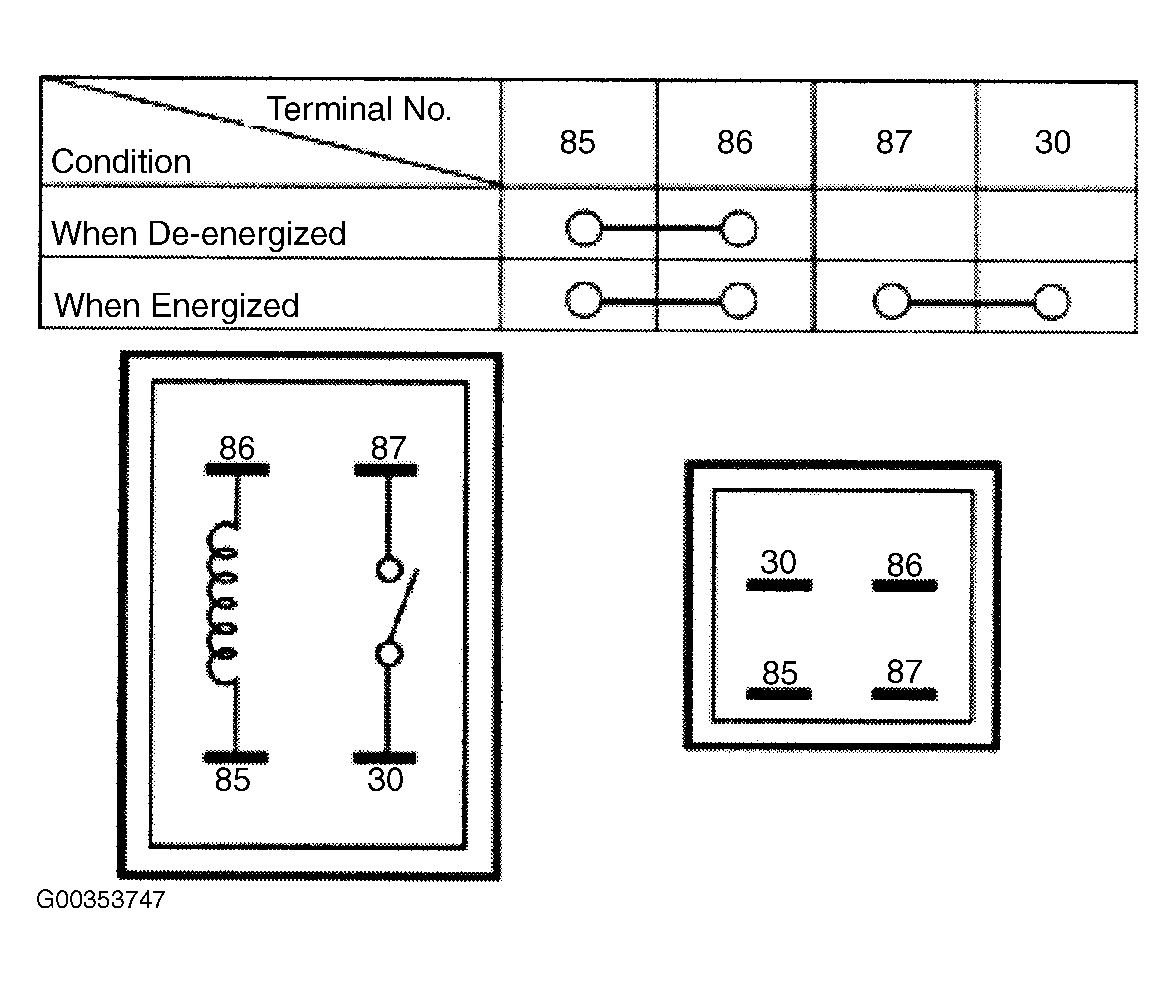

Fig 1: Testing Starter Relay
G00353747Courtesy of HYUNDAI MOTOR CO.
