Timing Belt: Disassembly

  1. Remove the crankshaft pulley, coolant pump pulley and drive belt.
  2. Remove the alternator bolt.
  3. Remove the coolant pump pulley and belt.

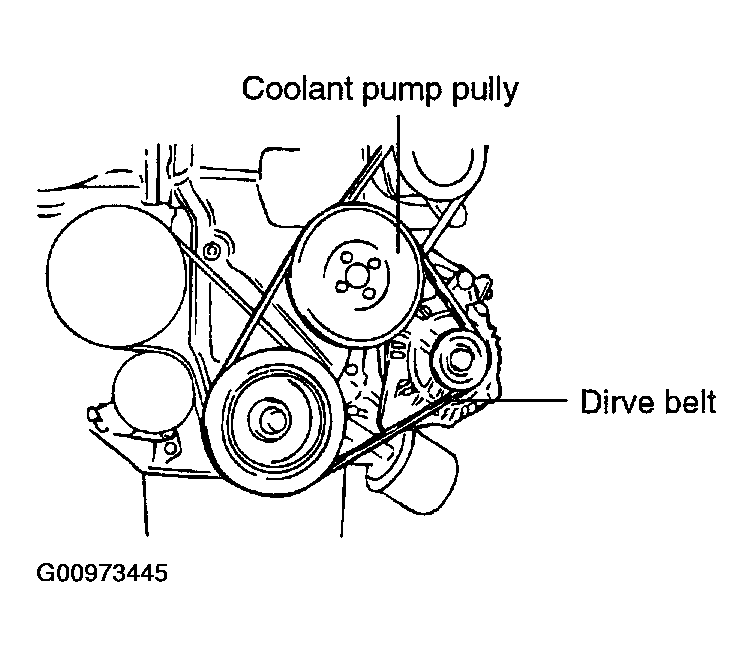

    Fig 1: Identifying Coolant Pump Pulley & Belt
    G00973445Courtesy of HYUNDAI MOTOR CO.
  4. Remove the crankshaft pulley.
  5. Remove the timing belt cover.

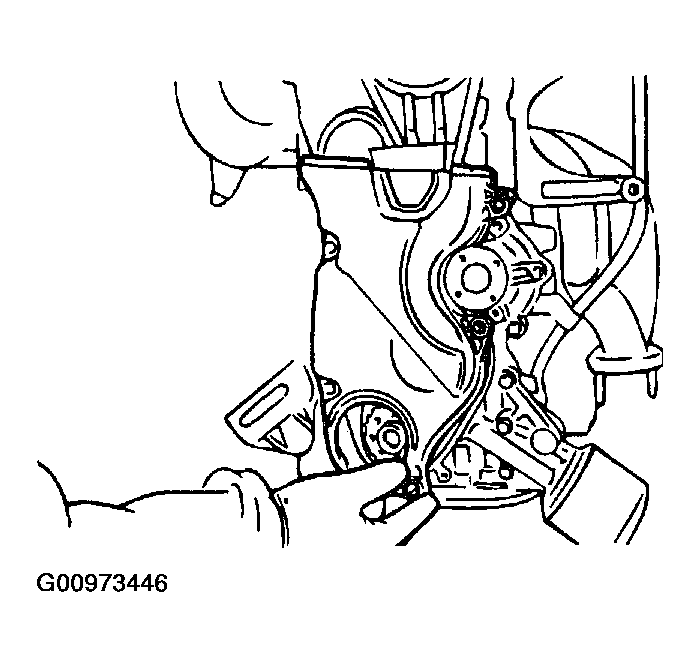

    Fig 2: Removing Timing Belt Cover
    G00973446Courtesy of HYUNDAI MOTOR CO.
  6. Remove the timing belt tensioner pulley.

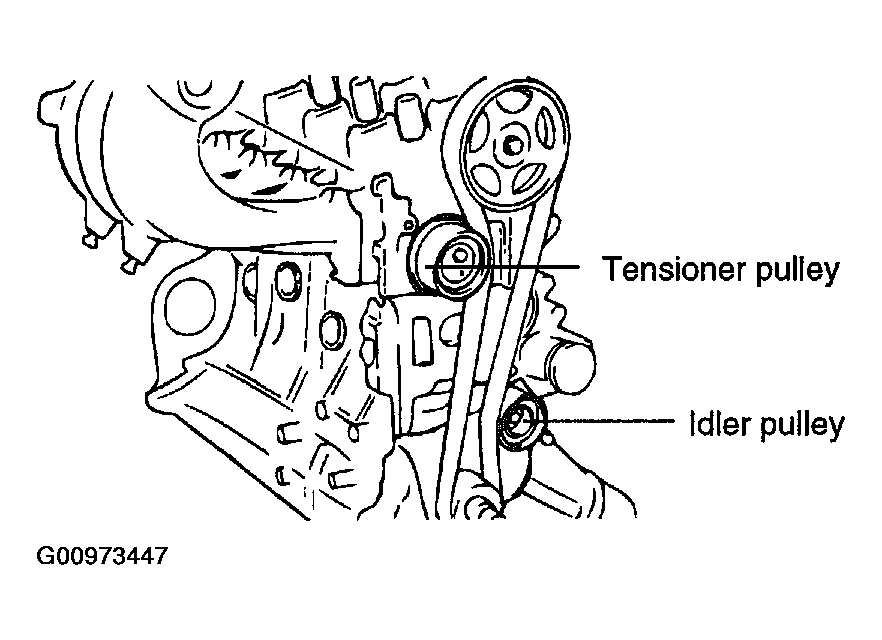

    Fig 3: Identifying Timing Belt Tensioner Pulley
    G00973447Courtesy of HYUNDAI MOTOR CO.
    NOTE: If the timing belt is reused, make an arrow indicating the turning direction (or the front of the engine) to make sure that the belt is reinstalled in the same direction as before.
  7. Remove the timing belt.
    Fig 4: Removing Timing Belt
    G00973448Courtesy of HYUNDAI MOTOR CO.
  8. Remove the idler pulley.
  9. Remove the camshaft sprocket.
    NOTE: Be careful not to damage the cylinder head with the wrench.
  10. Remove the crankshaft sprocket from crankshaft.
    Fig 5: Removing Crankshaft Sprocket
    G00973449Courtesy of HYUNDAI MOTOR CO.
